这篇文章主要介绍了Python matplotlib画曲线例题解析,文中通过示例代码介绍的非常详细，对大家的学习或者工作具有一定的参考学习价值,需要的朋友可以参考下
初学者,练习以下片段:

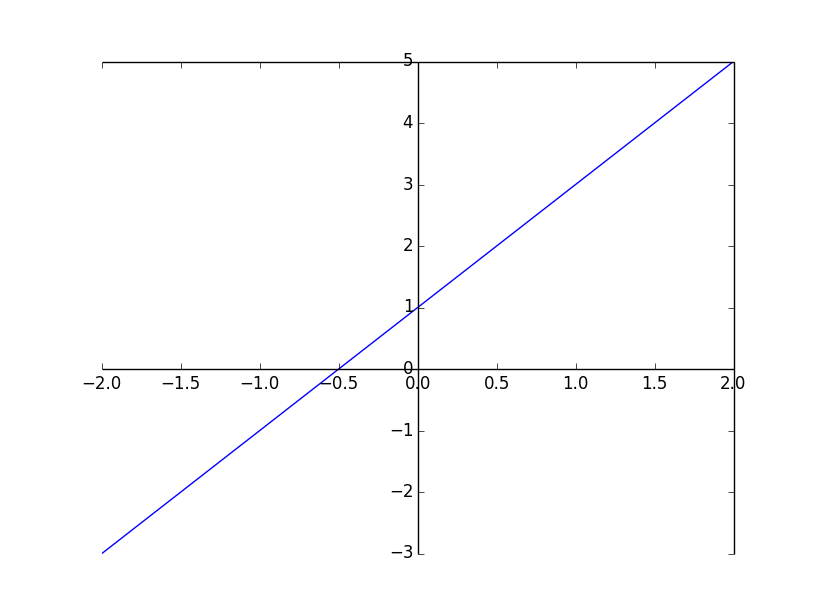

代码1:用 一元一次函数 画直线
import matplotlib.pyplot as plt
import numpy as np
x = np.linspace(-2, 2, 50)
print(x)
y = 2*x + 1
plt.plot(x, y)
ax = plt.gca()
ax.spines['bottom'].set_position(('data',0))
ax.spines['left'].set_position(('data',0))
plt.show()

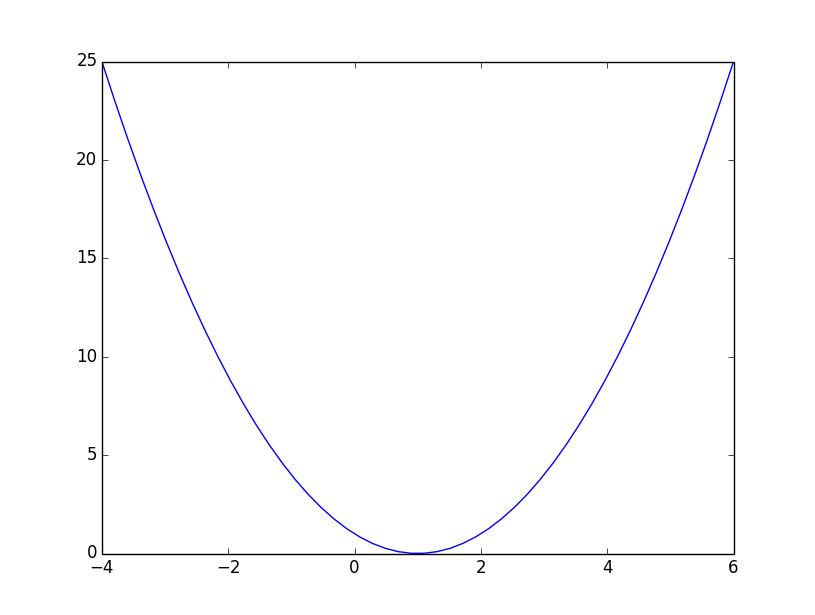

代码2:用 一元二次函数 画抛物线
import matplotlib.pyplot as plt import numpy as np x = np.linspace(-4, 6, 50) print(type(x)) print(x) y = x**2 - x*2+1 plt.plot(x, y) plt.show()

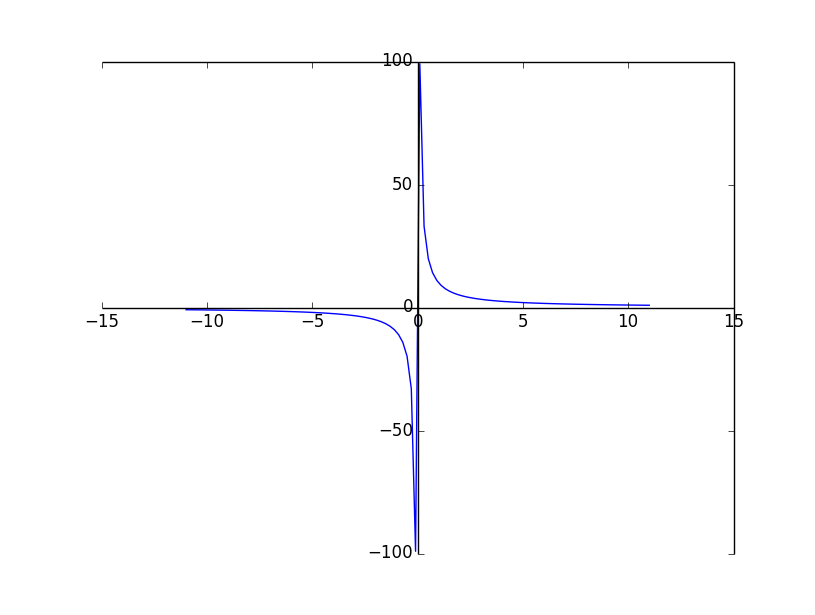

代码3:用反比例函数 画曲线
import matplotlib.pyplot as plt
import numpy as np
x = np.linspace(-11, 11, 110)
print(x)
y =10/x
plt.plot(x, y)
ax = plt.gca()
ax.spines['bottom'].set_position(('data',0))
ax.spines['left'].set_position(('data',0))
plt.show()

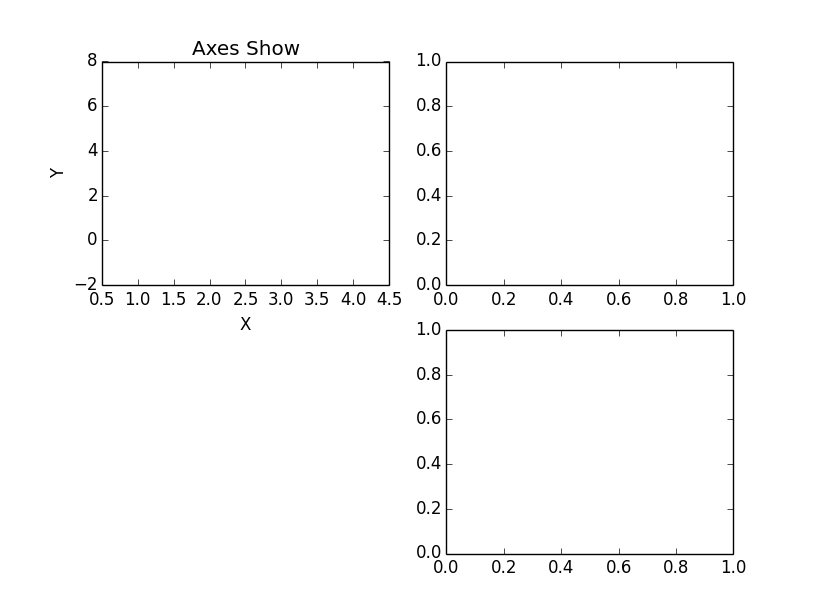

代码4:子坐标系的应用
import matplotlib.pyplot as plt
fig = plt.figure()
ax1 = fig.add_subplot(221)
ax2 = fig.add_subplot(222)
ax3 = fig.add_subplot(224)
ax1.set(xlim=[0.5, 4.5], ylim=[-2, 8], title='Axes Show',
ylabel='Y', xlabel='X')
plt.show()
代码5:子坐标系的应用
import matplotlib.pyplot as plt
fig = plt.figure()
fig,axes=plt.subplots(nrows=2, ncols=2)
axes[0,0].set(xlim=[0.5, 4.5], ylim=[-2, 8], title='Axes Show',
ylabel='Y', xlabel='X')
axes[0,1].set(title='Upper Right')
axes[1,0].set(title='Lower Left')
axes[1,1].set(title='Lower Right')

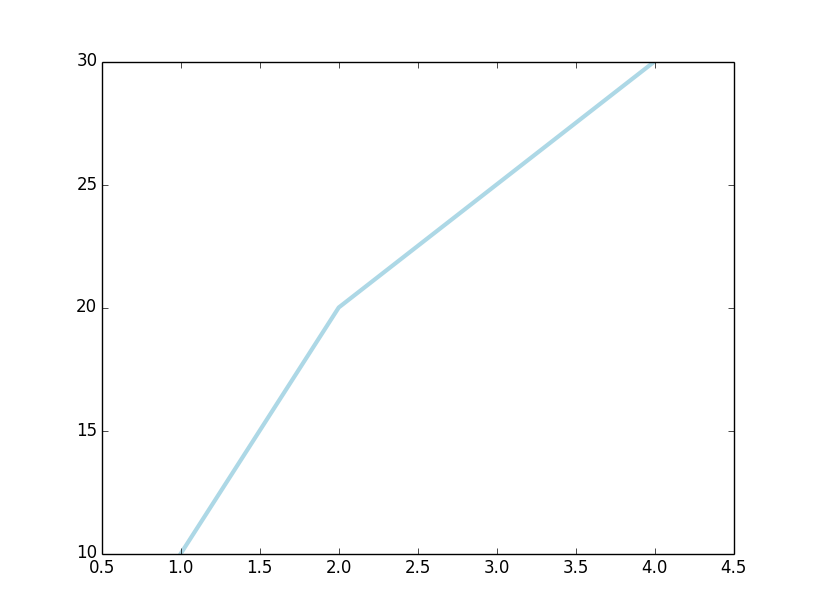

代码6:用已知少量坐标值画曲线
import matplotlib.pyplot as plt plt.plot([1, 2, 3, 4], [10, 20, 25, 30], color='lightblue', linewidth=3) plt.xlim(0.5, 4.5) plt.show()

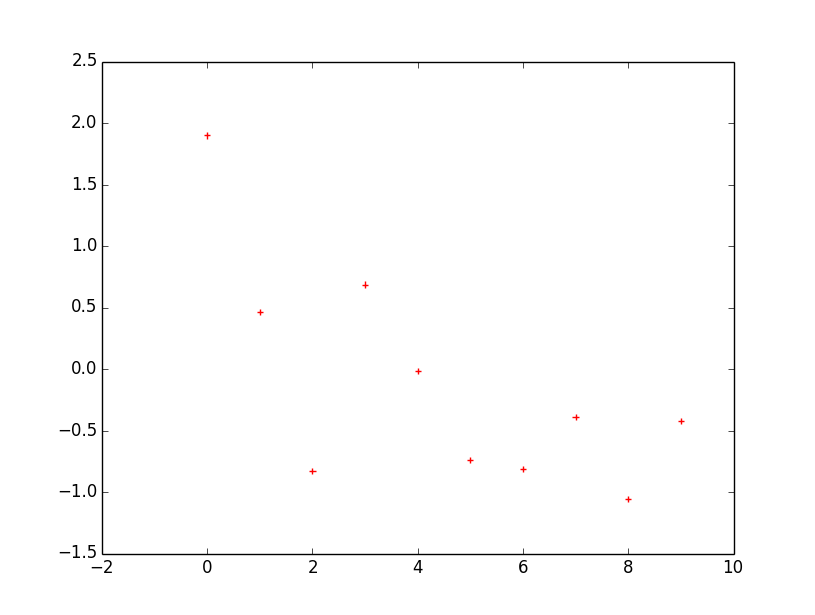

代码7:画离散点
mport matplotlib.pyplot as plt import numpy as np x = np.arange(10) y = np.random.randn(10) print(y) plt.scatter(x, y, color='red', marker='+') plt.show()

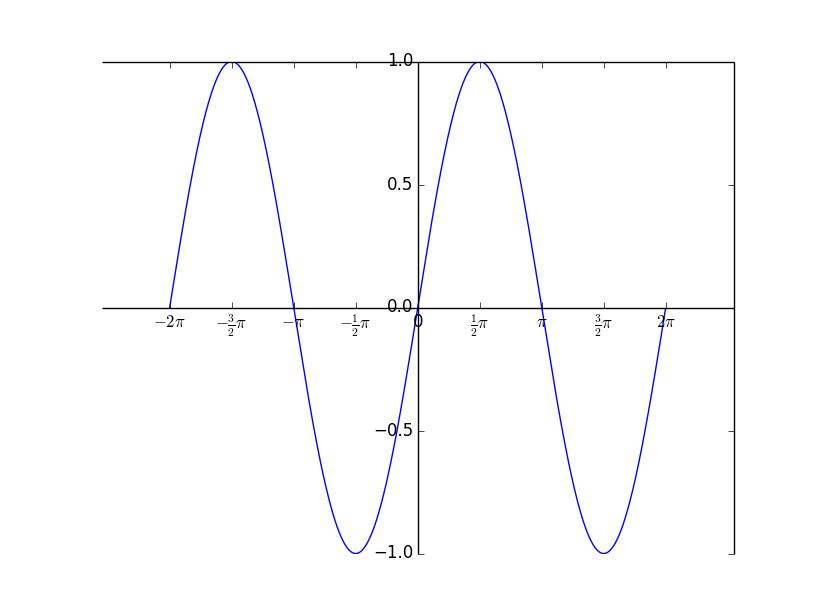

代码8:画出正弦曲线
import numpy as np
import matplotlib.pyplot as plt
x=np.arange(-2*np.pi,2*np.pi,0.01)
y=np.sin(x)
plt.plot(x,y)
ax = plt.gca()
ax.spines['bottom'].set_position(('data',0))
ax.spines['left'].set_position(('data',0))
plt.xticks([-np.pi*2,-np.pi*3/2,-np.pi, -np.pi/2, 0, np.pi/2, np.pi,np.pi*3/2,np.pi*2],[r'$-2\pi$',r'$-\frac{3}{2} \pi$',r'$-\pi$',r'$-\frac{1}{2}\pi$', r'0', r'$\frac{1}{2}\pi$','$\pi$',r'$\frac{3}{2}\pi$',r'$2 \pi$'])
plt.show()
以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持脚本之家。
