IOS中各种手势操作实例代码

所属分类：软件编程 / IOS 阅读数： 535

收藏 0赞 0分享

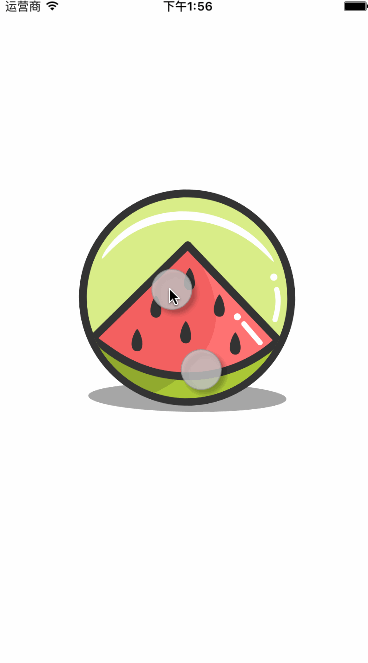

先看下效果

手势相关的介绍

IOS中手势操作一般是 UIGestureRecognizer 类的几个手势子类去实现，一般我们用到的手势就这么5种：

1、点击 UITapGestureRecognizer

2、平移 UIPanGestureRecognizer

3、缩放 UIPinchGestureRecognizer

4、旋转 UIRotationGestureRecognizer

5、轻扫 UISwipeGestureRecognizer

我们上面这个实例中就用到了上面这5种手势，不过其中点击与轻扫没有体现出来，只是输出了下日志而已，一会看代码

下面我们来分别介绍下这几种手势

1、UITapGestureRecognizer 点击手势

UITapGestureRecognizer* tapGes = [[UITapGestureRecognizer alloc]initWithTarget:self action:@selector(tapGes:)];
// 点击次数，默认为1，1为单击，2为双击
tapGes.numberOfTapsRequired = 2;

这个点击手势类有一个属性 numberOfTapsRequired 用于设置点击数，就是点击几次才触发这个事件

2、UIPanGestureRecognizer 平移手势

// 平移手势
- (void)initPanGes{
 UIPanGestureRecognizer* panGes = [[UIPanGestureRecognizer alloc]initWithTarget:self action:@selector(panGes:)];
 [self.imgView addGestureRecognizer:panGes];
}
- (void)panGes:(UIPanGestureRecognizer*)ges{
 // 获取平移的坐标点
 CGPoint transPoint = [ges translationInView:self.imgView];
}

平移手势本身没太多可设置的属性，在平移事件触发手，可以用 translationInView 方法获取当前平移坐标点

3、UIPinchGestureRecognizer 缩放手势

// 缩放手势
- (void)initPinGes{
 UIPinchGestureRecognizer* pinGes = [[UIPinchGestureRecognizer alloc]initWithTarget:self action:@selector(pinGes:)];
 [self.imgView addGestureRecognizer:pinGes];
}
- (void)pinGes:(UIPinchGestureRecognizer*)ges{
 // 缩放
 self.imgView.transform = CGAffineTransformScale(self.imgView.transform, ges.scale, ges.scale);
}

缩放手势在事件里面可以获取 scale 属性，表示当前缩放值

4、UIRotationGestureRecognizer 旋转手势

// 旋转手势
- (void)initRotation{
 UIRotationGestureRecognizer* rotationGes = [[UIRotationGestureRecognizer alloc]initWithTarget:self action:@selector(rotationGes:)];
 [self.imgView addGestureRecognizer:rotationGes];
}
- (void)rotationGes:(UIRotationGestureRecognizer*)ges{
 // 旋转图片
 self.imgView.transform = CGAffineTransformRotate(self.imgView.transform, ges.rotation);
}

旋转手势在事件里面可以通过获取 rotation 属性获取当前旋转的角度

5、UISwipeGestureRecognizer 轻扫手势

// 轻扫手势
- (void)initSwipeGes{
 // 创建 从右向左 轻扫的手势
 UISwipeGestureRecognizer* swipeLeftGes = [[UISwipeGestureRecognizer alloc]initWithTarget:self action:@selector(swipeGes:)];
 // 方向，默认是从左往右
 // 最多只能开启一个手势，如果要开启多个就得创建多个手势
 // 监听从右向左的方向
 swipeLeftGes.direction = UISwipeGestureRecognizerDirectionLeft;
 [self.imgView addGestureRecognizer:swipeLeftGes];
}
- (void)swipeGes:(UISwipeGestureRecognizer*)ges{
 // ges.direction方向值
 NSLog(@"%s diection:%lu",__func__,(unsigned long)ges.direction);
}

轻扫手势对象需要设置 direction 属性，默认是只监听从左向右，这是一个枚举值 UISwipeGestureRecognizerDirection

UISwipeGestureRecognizerDirectionRight　　从左向右（默认值）
UISwipeGestureRecognizerDirectionLeft　　 从右向左
UISwipeGestureRecognizerDirectionUp　　　 从下向上
UISwipeGestureRecognizerDirectionDown　　从上向下

下面看一下我们上面那个效果图实现代码吧

//
// ViewController.m
// 各种手势操作
//
// Created by xgao on 16/3/24.
// Copyright © 2016年 xgao. All rights reserved.
//
#import "ViewController.h"
@interface ViewController ()<UIGestureRecognizerDelegate>
@property (weak, nonatomic) IBOutlet UIImageView *imgView;
@end
@implementation ViewController
- (void)viewDidLoad {
 [super viewDidLoad];
 [self initTapGes];
 [self initPanGes];
 [self initPinGes];
 [self initRotation];
 [self initSwipeGes];
}
// 点击手势
- (void)initTapGes{
 UITapGestureRecognizer* tapGes = [[UITapGestureRecognizer alloc]initWithTarget:self action:@selector(tapGes:)];
 // 点击次数，默认为1，1为单击，2为双击
 tapGes.numberOfTapsRequired = 2;
 tapGes.delegate = self;
 [self.imgView addGestureRecognizer:tapGes];
}
- (void)tapGes:(UITapGestureRecognizer*)ges{
 NSLog(@"%s",__func__);
}
// 平移手势
- (void)initPanGes{
 UIPanGestureRecognizer* panGes = [[UIPanGestureRecognizer alloc]initWithTarget:self action:@selector(panGes:)];
 panGes.delegate = self;
 [self.imgView addGestureRecognizer:panGes];
}
- (void)panGes:(UIPanGestureRecognizer*)ges{
 // 获取平移的坐标点
 CGPoint transPoint = [ges translationInView:self.imgView];
 // 在之前的基础上移动图片
 self.imgView.transform = CGAffineTransformTranslate(self.imgView.transform, transPoint.x, transPoint.y);
 // 复原，必需复原
 // 每次都清空一下消除坐标叠加
 [ges setTranslation:CGPointZero inView:self.imgView];
 NSLog(@"%s",__func__);
}
// 缩放手势
- (void)initPinGes{
 UIPinchGestureRecognizer* pinGes = [[UIPinchGestureRecognizer alloc]initWithTarget:self action:@selector(pinGes:)];
 pinGes.delegate = self;
 [self.imgView addGestureRecognizer:pinGes];
}
- (void)pinGes:(UIPinchGestureRecognizer*)ges{
 // 缩放
 self.imgView.transform = CGAffineTransformScale(self.imgView.transform, ges.scale, ges.scale);
 // 复原
 // 每次都清空一下消除叠加
 ges.scale = 1;
}
// 旋转手势
- (void)initRotation{
 UIRotationGestureRecognizer* rotationGes = [[UIRotationGestureRecognizer alloc]initWithTarget:self action:@selector(rotationGes:)];
 rotationGes.delegate = self;
 [self.imgView addGestureRecognizer:rotationGes];
}
- (void)rotationGes:(UIRotationGestureRecognizer*)ges{
 // 旋转图片
 self.imgView.transform = CGAffineTransformRotate(self.imgView.transform, ges.rotation);
 // 复原
 // 每次都清空一下消除叠加
 ges.rotation = 0;
 NSLog(@"%s",__func__);
}
// 轻扫手势
- (void)initSwipeGes{
 // 创建 从右向左 轻扫的手势
 UISwipeGestureRecognizer* swipeLeftGes = [[UISwipeGestureRecognizer alloc]initWithTarget:self action:@selector(swipeGes:)];
 // 方向，默认是从左往右
 // 最多只能开启一个手势，如果要开启多个就得创建多个手势
 // 监听从右向左的方向
 swipeLeftGes.direction = UISwipeGestureRecognizerDirectionLeft;
 swipeLeftGes.delegate = self;
 [self.imgView addGestureRecognizer:swipeLeftGes];
 // 创建 从下向上 轻扫的手势
 UISwipeGestureRecognizer* swipeUpGes = [[UISwipeGestureRecognizer alloc]initWithTarget:self action:@selector(swipeGes:)];
 // 监听从下向上的方向
 swipeUpGes.direction = UISwipeGestureRecognizerDirectionUp;
 swipeUpGes.delegate = self;
 [self.imgView addGestureRecognizer:swipeUpGes];
}
- (void)swipeGes:(UISwipeGestureRecognizer*)ges{
 // ges.direction方向值
 NSLog(@"%s diection:%lu",__func__,(unsigned long)ges.direction);
}
#pragma mark - UIGestureRecognizerDelegate
// 判断是否能触发手势
- (BOOL)gestureRecognizerShouldBegin:(UITapGestureRecognizer *)gestureRecognizer{
 return YES;
}
// 是否允许多手势操作，不是多触摸点
- (BOOL)gestureRecognizer:(UIGestureRecognizer *)gestureRecognizer shouldRecognizeSimultaneouslyWithGestureRecognizer:(UIGestureRecognizer *)otherGestureRecognizer{
 return YES;
}
@end

这里需要注意的有两点：

1、对于平移、缩放、旋转这3个手势，我们如果要用它的值去处理的话，要记得复原！复原！复原！这点很重要！重要的事说3遍～～

　　平移手势里面我们需要设置 setTranslation:CGPointZero 来复原它的坐标值，不然下一次事件触发这个坐标值会叠加
　　缩放手势里面设置 ges.scale = 1 来复原它的缩放值
　　旋转手势里面设置 ges.rotation = 0 来复原它的角度值

2、假如我们需要多手势一起用的时候就需要设置下delegate 里面的一个返回参数的方法了

// 是否允许多手势操作，不是多触摸点
- (BOOL)gestureRecognizer:(UIGestureRecognizer *)gestureRecognizer shouldRecognizeSimultaneouslyWithGestureRecognizer:(UIGestureRecognizer *)otherGestureRecognizer{
 return YES;
}

以上所述是小编给大家介绍的IOS中各种手势操作实例代码,希望对大家有所帮助，如果大家有任何疑问请给我留言，小编会及时回复大家的。在此也非常感谢大家对脚本之家网站的支持！
