XML/HTML Code复制内容到剪贴板
- <html>
- <canvas id="a_canvas" width="1000" height="700"></canvas>
- <script>
- (function (){
-
- window.addEventListener("load", function(){
-
- var data = [1000,1300,2000,3000,2000,2000,1000,1500,2000,5000,1000,1000];
- var xinforma = ['1月','2月','3月','4月','5月','6月','7月','8月','9月','10月','11月','12月'];
-
- // 获取上下文
- var a_canvas = document.getElementById('a_canvas');
- var context = a_canvas.getContext("2d");
-
-
- // 绘制背景
- var gradient = context.createLinearGradient(0,0,0,300);
-
-
- // gradient.addColorStop(0,"#e0e0e0");
- //gradient.addColorStop(1,"#ffffff");
-
-
- context.fillStyle = gradient;
-
- context.fillRect(0,0,a_canvas.width,a_canvas.height);
-
- var realheight = a_canvas.height-15;
- var realwidth = a_canvas.width-40;
- // 描绘边框
- var grid_cols = data.length + 1;
- var grid_rows = 4;
- var cell_height = realheight / grid_rows;
- var cell_width = realwidth / grid_cols;
- context.lineWidth = 1;
- context.strokeStyle = "#a0a0a0";
-
- // 结束边框描绘
- context.beginPath();
- // 准备画横线
- /*for(var row = 1; row <= grid_rows; row++){
- var y = row * cell_height;
- context.moveTo(0,y);
- context.lineTo(a_canvas.width, y);
- }*/
-
- //划横线
- context.moveTo(0,realheight);
- context.lineTo(realwidth,realheight);
-
-
- //画竖线
- context.moveTo(0,20);
- context.lineTo(0,realheight);
- context.lineWidth = 1;
- context.strokeStyle = "black";
- context.stroke();
-
-
- var max_v =0;
-
- for(var i = 0; i<data.length; i++){
- if (data[i] > max_v) { max_v =data[i]};
- }
- max_vmax_v = max_v * 1.1;
- // 将数据换算为坐标
- var points = [];
- for( var i=0; i < data.length; i++){
- var v= data[i];
- var px = cell_width * (i +1);
- var py = realheight - realheight*(v / max_v);
- //alert(py);
- points.push({"x":px,"y":py});
- }
-
- //绘制坐标图形
- for(var i in points){
- var p = points[i];
- context.beginPath();
- context.fillStyle="green";
- context.fillRect(p.x,p.y,15,realheight-p.y);
-
- context.fill();
- }
- //添加文字
- for(var i in points)
- { var p = points[i];
- context.beginPath();
- context.fillStyle="black";
- context.fillText(data[i], p.x + 1, p.y - 15);
- context.fillText(xinforma[i],p.x + 1,realheight+12);
- context.fillText('月份',realwidth,realheight+12);
- context.fillText('资金量',0,10);
- }
- },false);
- })();
-
- </script>
- </html>
html5生成柱状图（条形图）详细代码

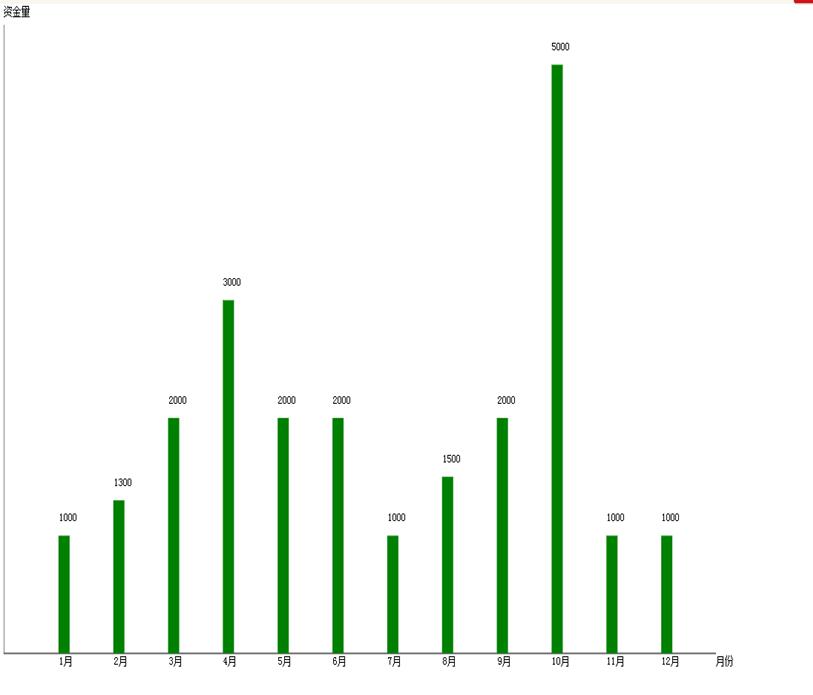

运行结果：
以上这篇html5生成柱状图(条形图)效果的实例代码就是小编分享给大家的全部内容了，希望能给大家一个参考，也希望大家多多支持脚本之家。
原文地址：http://www.cnblogs.com/shuniuniu/p/5318666.html
