浅谈VS中的DataPager分页

所属分类: 网络编程 / ASP.NET 阅读数: 1031
收藏 0 赞 0 分享

微软的DataPager分页功能很强大,不要设置数据库存储过程,只要添加个DataPager控件,关联下要分页的控件,简单设置就可以有不错的分页效果。当然要有更理想的效果还是要前台和后台处理下。

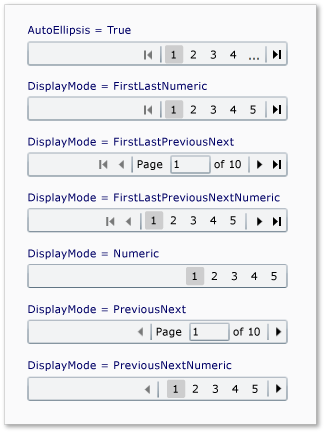

winform下的DataPager 显示模式:

webForm下的样式由TemplatePagerField,NextPreviousPagerField和NumericPagerField控制

通过设置上面几个控件的配合也可以达到winForm下的效果,这3个控件中最重要的是TemplatePagerField控件。

下面简单看看TemplatePagerField控件可以怎么设置:

复制代码 代码如下:

  <%@ Page language="VB" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
    "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<script runat="server">
  Protected Sub TemplatePagerField_OnPagerCommand(ByVal sender As Object, _
    ByVal e As DataPagerCommandEventArgs)
    ' Check which button raised the event
    Select Case e.CommandName
      Case "Next"
        Dim newIndex As Integer = e.Item.Pager.StartRowIndex + e.Item.Pager.PageSize
        If newIndex <= e.TotalRowCount Then
          e.NewStartRowIndex = newIndex
          e.NewMaximumRows = e.Item.Pager.MaximumRows
        End If
      Case "Previous"
        e.NewStartRowIndex = e.Item.Pager.StartRowIndex - e.Item.Pager.PageSize
        e.NewMaximumRows = e.Item.Pager.MaximumRows
      Case "First"
        e.NewStartRowIndex = 0
        e.NewMaximumRows = e.Item.Pager.MaximumRows
    End Select
  End Sub
</script>
<html xmlns="http://www.w3.org/1999/xhtml" >
  <head id="Head1" runat="server">
    <title>TemplatePagerField.OnPagerCommand Example</title>
    <style type="text/css">
      body
      {
          text-align: center;
          font: 12px Arial, Helvetica, sans-serif;
      }
      .item
      {
        border: solid 1px #2F4F4F;
        background: #E6E6FA;
      }
    </style>
  </head>
  <body>
    <form id="form1" runat="server">
      <h3>TemplatePagerField.OnPagerCommand Example</h3>
      <asp:ListView ID="StoresListView"
        DataSourceID="StoresDataSource"
        runat="server">
        <LayoutTemplate>
          <table width="350" runat="server" id="tblStore">
            <tr runat="server">
              <th runat="server">ID</th>
              <th runat="server">Store Name</th>
            </tr>
            <tr id="itemPlaceholder" runat="server">
            </tr>
          </table>
         </LayoutTemplate>
         <ItemTemplate>
          <tr runat="server">
            <td class="item">
              <asp:Label ID="IDLabel" runat="server" Text='<%#Eval("CustomerID") %>' />
            </td>
            <td align="left" class="item">
              <asp:Label ID="NameLabel" runat="server" Text='<%#Eval("Name")%>' />
            </td>
          </tr>
        </ItemTemplate>
      </asp:ListView>
      <br />
      <asp:DataPager runat="server"
        ID="ContactsDataPager"
        PageSize="30"
        PagedControlID="StoresListView">
        <Fields>
          <asp:TemplatePagerField OnPagerCommand="TemplatePagerField_OnPagerCommand">
            <PagerTemplate>
              <asp:LinkButton ID="FirstButton" runat="server" CommandName="First"
                Text="<<" Enabled='<%# Container.StartRowIndex > 0 %>' />
              <asp:LinkButton ID="PreviousButton" runat="server" CommandName="Previous"
                Text='<%# (Container.StartRowIndex - Container.PageSize + 1) & " - " & (Container.StartRowIndex) %>'
                Visible='<%# Container.StartRowIndex > 0 %>' />
              <asp:Label ID="CurrentPageLabel" runat="server"
                Text='<%# (Container.StartRowIndex + 1) & "-" & (IIf(Container.StartRowIndex + Container.PageSize > Container.TotalRowCount, Container.TotalRowCount, Container.StartRowIndex + Container.PageSize)) %>' />
              <asp:LinkButton ID="NextButton" runat="server" CommandName="Next"
                Text='<%# (Container.StartRowIndex + Container.PageSize + 1) & " - " & (IIf(Container.StartRowIndex + Container.PageSize*2 > Container.TotalRowCount, Container.TotalRowCount, Container.StartRowIndex + Container.PageSize*2)) %>'
                Visible='<%# (Container.StartRowIndex + Container.PageSize) < Container.TotalRowCount %>' />
            </PagerTemplate>
          </asp:TemplatePagerField>
        </Fields>
      </asp:DataPager>
      <asp:SqlDataSource ID="StoresDataSource" runat="server"
            ConnectionString="<%$ ConnectionStrings:AdventureWorks_DataConnectionString %>"
            SelectCommand="SELECT [CustomerID], [Name] FROM Sales.Store ORDER BY [Name]">
      </asp:SqlDataSource>
    </form>
  </body>
</html>
