Asp.Net Core WebAPI使用Swagger时API隐藏和分组详解

所属分类：网络编程 / ASP.NET 阅读数： 1628

收藏 0赞 0分享

1、前言

为什么我们要隐藏部分接口？

因为我们在用swagger代替接口的时候，难免有些接口会直观的暴露出来，比如我们结合Consul一起使用的时候，会将健康检查接口以及报警通知接口暴露出来，这些接口有时候会出于方便考虑，没有进行加密，这个时候我们就需要把接口隐藏起来，只有内部的开发者知道。

为什么要分组？

通常当我们写前后端分离的项目的时候，难免会遇到编写很多接口供前端页面进行调用，当接口达到几百个的时候就需要区分哪些是框架接口，哪些是业务接口，这时候给swaggerUI的接口分组是个不错的选择。

swagger的基本使用这里将不再赘述，可以阅读微软官方文档，即可基本使用

2、swaggerUI中加入授权请求

新建HttpHeaderOperationFilter操作过滤器，继承Swashbuckle.AspNetCore.SwaggerGen.IOperationFilter接口，实现Apply方法

/// <summary>
/// swagger请求头
/// </summary>
public class HttpHeaderOperationFilter : IOperationFilter
{
 public void Apply(Operation operation, OperationFilterContext context)
 {
  #region 新方法
  if (operation.Parameters == null)
  {
   operation.Parameters = new List<IParameter>();
  }

  if (context.ApiDescription.TryGetMethodInfo(out MethodInfo methodInfo))
  {
   if (!methodInfo.CustomAttributes.Any(t => t.AttributeType == typeof(AllowAnonymousAttribute))
     &&!(methodInfo.ReflectedType.CustomAttributes.Any(t => t.AttributeType == typeof(AuthorizeAttribute))))
   {
    operation.Parameters.Add(new NonBodyParameter
    {
     Name = "Authorization",
     In = "header",
     Type = "string",
     Required = true,
     Description = "请输入Token，格式为bearer XXX"
    });
   }
  }
  #endregion

  #region 已过时
  //if (operation.Parameters == null)
  //{
  // operation.Parameters = new List<IParameter>();
  //}
  //var actionAttrs = context.ApiDescription.ActionAttributes().ToList();
  //var isAuthorized = actionAttrs.Any(a => a.GetType() == typeof(AuthorizeAttribute));
  //if (isAuthorized == false)
  //{
  // var controllerAttrs = context.ApiDescription.ControllerAttributes();
  // isAuthorized = controllerAttrs.Any(a => a.GetType() == typeof(AuthorizeAttribute));
  //}
  //var isAllowAnonymous = actionAttrs.Any(a => a.GetType() == typeof(AllowAnonymousAttribute));
  //if (isAuthorized && isAllowAnonymous == false)
  //{
  // operation.Parameters.Add(new NonBodyParameter
  // {
  //  Name = "Authorization",
  //  In = "header",
  //  Type = "string",
  //  Required = true,
  //  Description = "请输入Token，格式为bearer XXX"
  // });
  //}
  #endregion
 }
}

然后修改Startup.cs中的ConfigureServices方法，添加我们自定义的HttpHeaderOperationFilter过滤器

public IServiceProvider ConfigureServices(IServiceCollection services)
{
 ...
 services.AddSwaggerGen(c =>
 {
  ...
  c.OperationFilter<HttpHeaderOperationFilter>();
 });
 ...
}

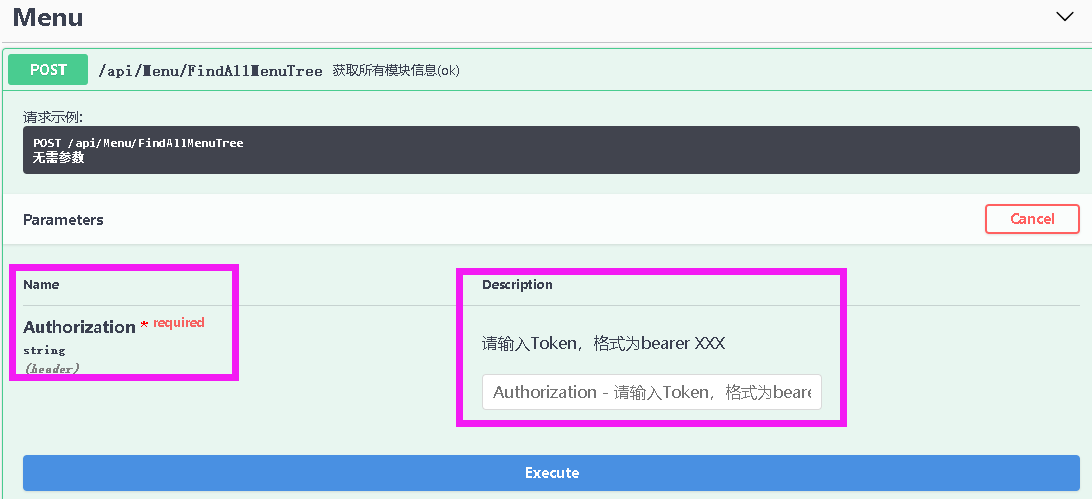

这时候我们再访问swaggerUI就可以输入Token了

3、API分组

修改Startup.cs中的ConfigureServices方法，添加多个swagger文档

public IServiceProvider ConfigureServices(IServiceCollection services)
{
 ...
 services.AddSwaggerGen(c =>
 {
  c.SwaggerDoc("v1", new Info
  {
   Version = "v1",
   Title = "接口文档",
   Description = "接口文档-基础",
   TermsOfService = "",
   Contact = new Contact
   {
    Name = "XXX1111",
    Email = "XXX1111@qq.com",
    Url = ""
   }
  });

  c.SwaggerDoc("v2", new Info
  {
   Version = "v2",
   Title = "接口文档",
   Description = "接口文档-基础",
   TermsOfService = "",
   Contact = new Contact
   {
    Name = "XXX2222",
    Email = "XXX2222@qq.com",
    Url = ""
   }
  });

  //反射注入全部程序集说明
  GetAllAssemblies().Where(t => t.CodeBase.EndsWith("Controller.dll")).ToList().ForEach(assembly =>
   {
    c.IncludeXmlComments(assembly.CodeBase.Replace(".dll", ".xml"));
   });

  c.OperationFilter<HttpHeaderOperationFilter>();
  //c.DocumentFilter<HiddenApiFilter>();
 });
 ...
}

修改Startup.cs中的Configure方法，加入

public void Configure(IApplicationBuilder app, ILoggerFactory loggerFactory)
{
 ...
 app.UseSwagger();
 app.UseSwaggerUI(c =>
 {
  c.SwaggerEndpoint("/swagger/v2/swagger.json", "接口文档-基础");//业务接口文档首先显示
  c.SwaggerEndpoint("/swagger/v1/swagger.json", "接口文档-业务");//基础接口文档放后面后显示
  c.RoutePrefix = string.Empty;//设置后直接输入IP就可以进入接口文档
 });
 ...

}

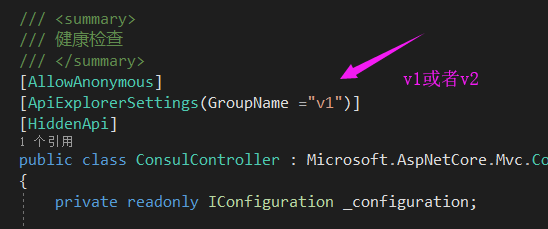

然后还要在我们的控制器上面标注swagger文档的版本

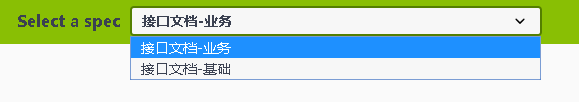

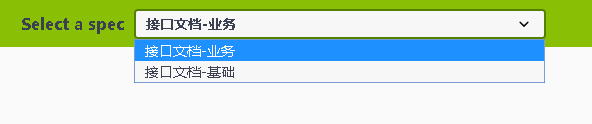

这时候我们就可以将接口文档进行分组显示了

4、API隐藏

创建自定义隐藏特性HiddenApiAttribute.cs

/// <summary>
/// 隐藏swagger接口特性标识
/// </summary>
[AttributeUsage(AttributeTargets.Method | AttributeTargets.Class)]
public class HiddenApiAttribute:System.Attribute
{
}

创建API隐藏过滤器HiddenApiFilter继承Swashbuckle.AspNetCore.SwaggerGen.IDocumentFilter接口，实现Apply方法

/// <summary>
/// 自定义Swagger隐藏过滤器
/// </summary>
public class HiddenApiFilter : IDocumentFilter
{
 public void Apply(SwaggerDocument swaggerDoc, DocumentFilterContext context)
 {
  foreach (ApiDescription apiDescription in context.ApiDescriptions)
  {
   if (apiDescription.TryGetMethodInfo(out MethodInfo method))
   {
    if (method.ReflectedType.CustomAttributes.Any(t=>t.AttributeType==typeof(HiddenApiAttribute))
      || method.CustomAttributes.Any(t => t.AttributeType == typeof(HiddenApiAttribute)))
    {
     string key = "/" + apiDescription.RelativePath;
     if (key.Contains("?"))
     {
      int idx = key.IndexOf("?", System.StringComparison.Ordinal);
      key = key.Substring(0, idx);
     }
     swaggerDoc.Paths.Remove(key);
    }
   }
  }
 }
}

在Startup.cs中使用HiddenApiFilter

public IServiceProvider ConfigureServices(IServiceCollection services)
{
 ...
 services.AddSwaggerGen(c =>
 {
  c.SwaggerDoc("v1", new Info
  {
   Version = "v1",
   Title = "接口文档",
   Description = "接口文档-基础",
   TermsOfService = "",
   Contact = new Contact
   {
    Name = "XXX1111",
    Email = "XXX1111@qq.com",
    Url = ""
   }
  });

  c.SwaggerDoc("v2", new Info
  {
   Version = "v2",
   Title = "接口文档",
   Description = "接口文档-基础",
   TermsOfService = "",
   Contact = new Contact
   {
    Name = "XXX2222",
    Email = "XXX2222@qq.com",
    Url = ""
   }
  });

  //反射注入全部程序集说明
  GetAllAssemblies().Where(t => t.CodeBase.EndsWith("Controller.dll")
   && !t.CodeBase.Contains("Common.Controller.dll")).ToList().ForEach(assembly =>
   {
    c.IncludeXmlComments(assembly.CodeBase.Replace(".dll", ".xml"));
   });

  c.OperationFilter<HttpHeaderOperationFilter>();
  c.DocumentFilter<HiddenApiFilter>();
 });
 ...
}

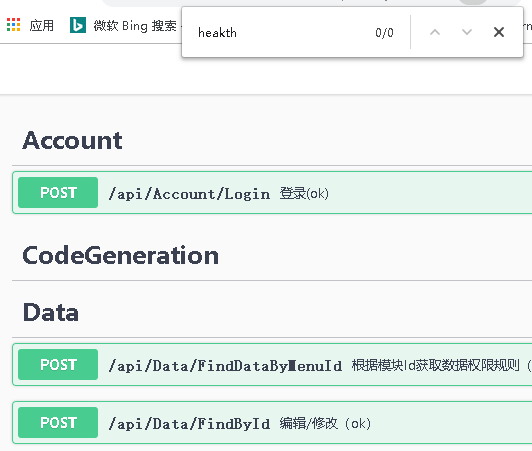

示例：

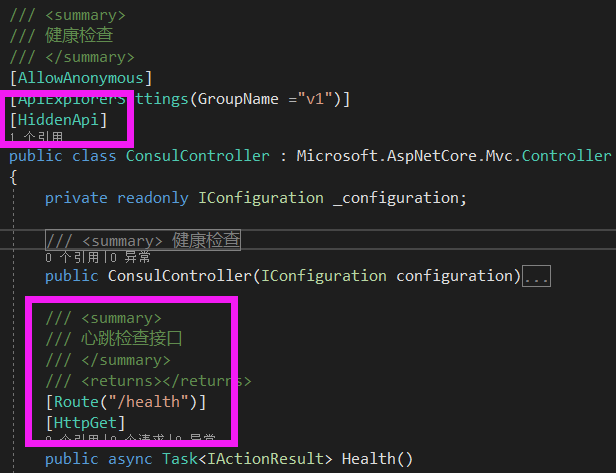

我这里提供了Consul的心跳检车接口
