一直想写个评论系统，看了下多说，网易,简书的评论，想了下自己该实现怎样的评论系统。
评论系统关键是嵌套层数以及数据库表设计。嵌套层数多，表结构复杂，呈现也麻烦，最后决定实现一个二级评论。系统由maven构建，springboot快速搭建spring环境。前台采用angularjs+bootstrap,后台使用springmvc+mybatis,数据库采用MySQL.前台请求后台API操作评论。

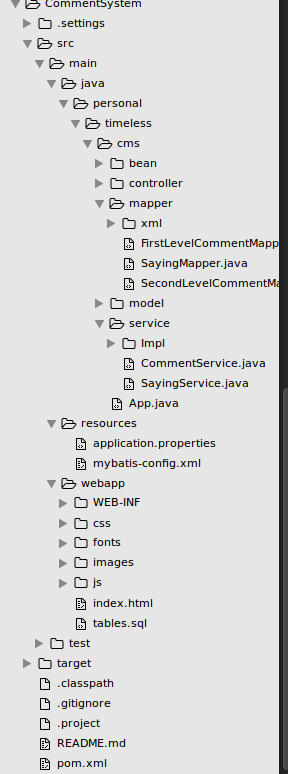

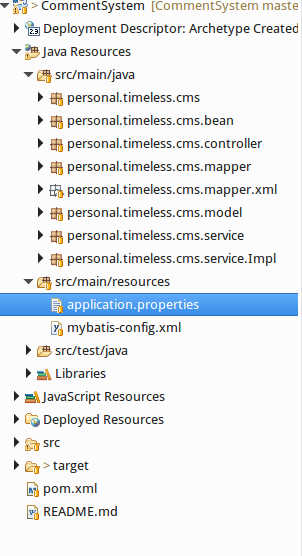

目录结构
数据库表设计
##说说表或者文章表 create table saying ( saying_id INT NOT NULL AUTO_INCREMENT PRIMARY KEY, sayingContent VARCHAR(500) NOT NULL, author VARCHAR(50) NOT NULL, sayingAvatar VARCHAR(50) NOT NULL, likes VARCHAR(500) NOT NULL, createTime datetime NOT NULL ) ENGINE=InnoDB DEFAULT CHARSET=utf8; ##一级评论表 create table firstLevelComment ( flc_id INT NOT NULL AUTO_INCREMENT PRIMARY KEY, sayingId INT NOT NULL, commenter VARCHAR(50) NOT NULL, commenterAvatar VARCHAR(50) NOT NULL, commentContent VARCHAR(500) NOT NULL, commentTime datetime NOT NULL ) ENGINE=InnoDB DEFAULT CHARSET=utf8; ##二级评论表 create table secondLevelComment ( slc_id INT NOT NULL AUTO_INCREMENT PRIMARY KEY, sayingId INT NOT NULL, flcId INT NOT NULL, replier VARCHAR(50) NOT NULL, toCommenter VARCHAR(50) NOT NULL, replyContent VARCHAR(50) NOT NULL, replyTime datetime NOT NULL ) ENGINE=InnoDB DEFAULT CHARSET=utf8;
获取评论的mapper(关键)
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="personal.timeless.cms.mapper.SayingMapper" >
<resultMap id="SayingMap" type="saying" >
<id column="saying_id" property="id" jdbcType="INTEGER" />
<result column="sayingContent" property="sayingContent" jdbcType="INTEGER" />
<result column="author" property="author" jdbcType="VARCHAR" />
<result column="sayingAvatar" property="avatar" jdbcType="VARCHAR" />
<result column="likes" property="likes" jdbcType="VARCHAR" />
<result column="createTime" property="createTime" jdbcType="TIMESTAMP" />
<collection property="flcs" ofType="firstLevelComment" column="sayingId">
<id column="flc_id" property="id" jdbcType="INTEGER" />
<result column="sayingId" property="sayingId" jdbcType="INTEGER" />
<result column="commenter" property="commenter"/>
<result column="commenterAvatar" property="avatar"/>
<result column="commentContent" property="commentContent"/>
<result column="commentTime" property="commentTime" jdbcType="TIMESTAMP" />
<collection property="slcs" ofType="secondLevelComment" column="flcId">
<id column="slc_id" property="id" jdbcType="INTEGER" />
<result column="flcId" property="flcId" jdbcType="INTEGER" />
<result column="replier" property="replier"/>
<result column="toCommenter" property="toCommenter"/>
<result column="replyContent" property="replyContent"/>
<result column="replyTime" property="replyTime" jdbcType="TIMESTAMP" />
</collection>
</collection>
</resultMap>
<select id="selectOneById" resultMap="SayingMap" parameterType="int" >
select * from
(select * from saying s left join firstLevelComment fc on s.saying_id=fc.sayingId where s.saying_id=#{id}) tmp left join secondLevelComment sc
on tmp.flc_id = sc.flcId
</select>
<select id="updateLikesById">
update saying set likes = #{likes} where saying_id = #{id}
</select>
</mapper>

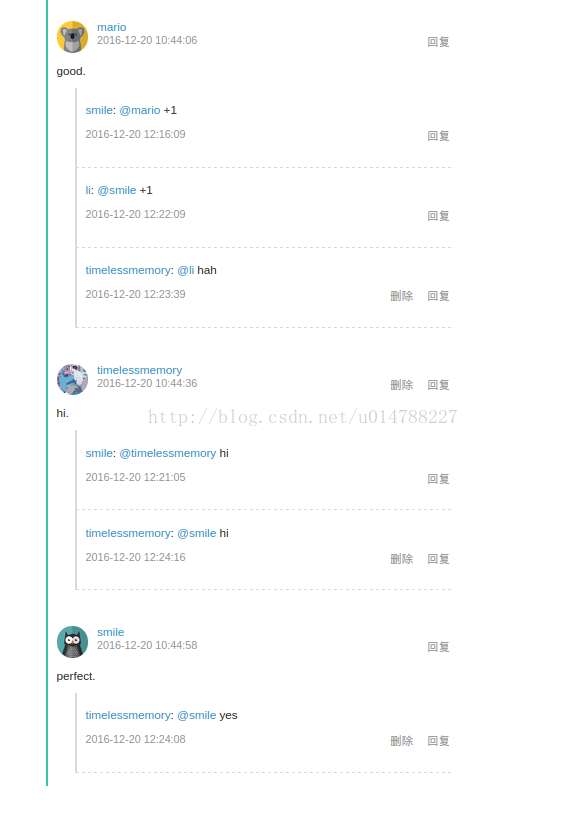

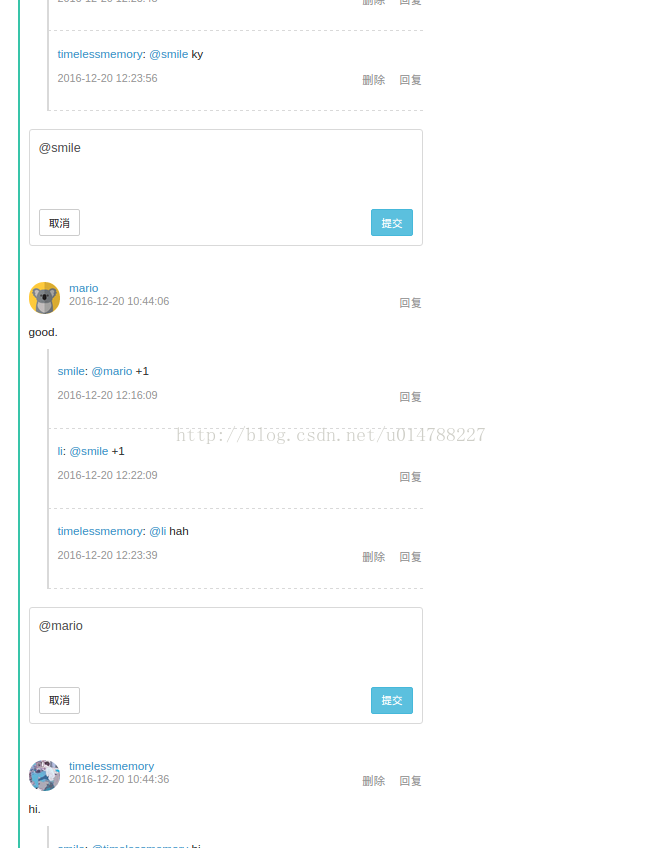

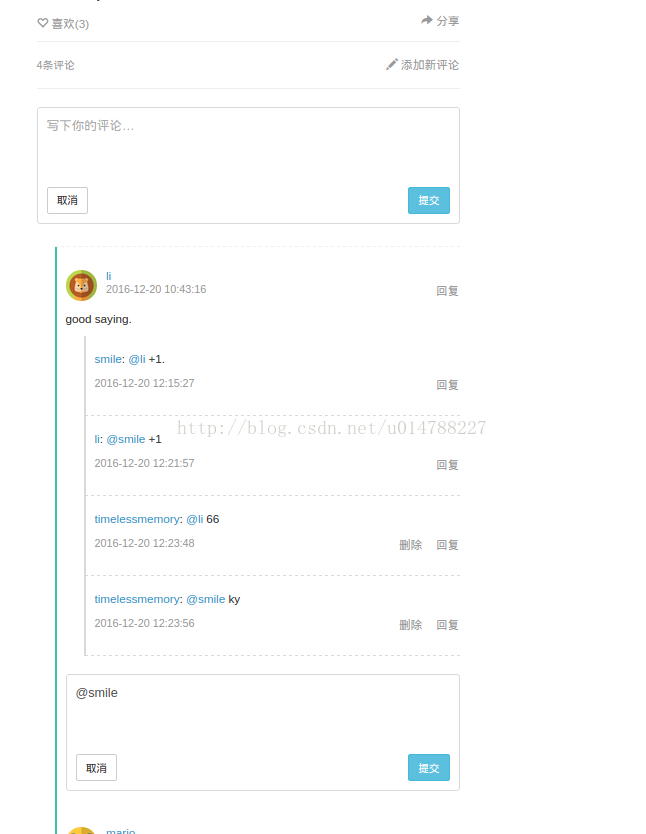

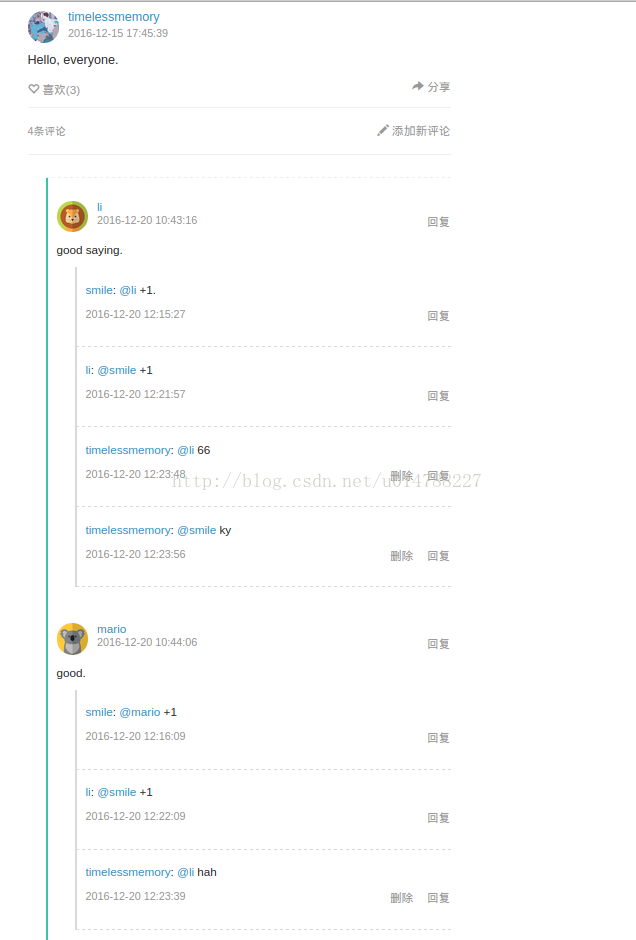

页面展示
