Flex中TabNavigator设置Tabs样式思路及源码

<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
xmlns:s="library://ns.adobe.com/flex/spark"
xmlns:mx="library://ns.adobe.com/flex/mx"
width="100%" height="100%"
>
<fx:Declarations>
<!-- Define custom colors for use as fills. -->
<mx:SolidColor id="sc1" color="0xADFF2F" alpha=".8"/>
<mx:SolidColor id="sc2" color="0xADD8E6" alpha=".6"/>

<!-- Define custom Strokes for the columns. -->
<mx:SolidColorStroke id="s1" color="0xADFF2F" weight="2"/>
<mx:SolidColorStroke id="s2" color="0xADD8E6" weight="2"/>
</fx:Declarations>

<fx:Style>
@namespace s "library://ns.adobe.com/flex/spark";
@namespace mx "library://ns.adobe.com/flex/mx";
.myTabs{
color:#FFFFFF;
font-weight:bold;
background-color:#6495ED;
}
.myTextTabs{
color:#8B0000;
background-color:#97FFFF;
font-weight:bold;
}
mx|TabNavigator{
tab-style-name:"myTabs";
first-tab-style-name:"myTabs";
last-tab-style-name:"myTabs";
selected-tab-text-style-name:"myTextTabs";
}
</fx:Style>

<fx:Script>
<![CDATA[
import mx.collections.ArrayCollection;

[Bindable]
//学生数据绑定
private var studentArray:ArrayCollection = new ArrayCollection([
{sno:"2013010101",math:"96"},
{sno:"2013010102",math:"89"},
{sno:"2013010103",math:"87"},
{sno:"2013010104",math:"90"},
{sno:"2013010105",math:"78"},
{sno:"2013010106",math:"69"},
{sno:"2013010107",math:"92"},
{sno:"2013010108",math:"80"},
{sno:"2013010109",math:"60"},
{sno:"2013010110",math:"89"}
]);

[Bindable]
//教师数据绑定
private var teacherArray:ArrayCollection = new ArrayCollection([
{tno:"2013010101",tscore:"96"},
{tno:"2013010102",tscore:"99"},
{tno:"2013010103",tscore:"77"},
{tno:"2013010104",tscore:"70"},
{tno:"2013010105",tscore:"98"},
{tno:"2013010106",tscore:"79"},
{tno:"2013010107",tscore:"82"},
{tno:"2013010108",tscore:"70"},
{tno:"2013010109",tscore:"80"},
{tno:"2013010110",tscore:"79"}
]);
]]>
</fx:Script>

<mx:VBox width="100%" height="100%" paddingBottom="10" paddingLeft="10" paddingRight="10" paddingTop="10">
<mx:TabNavigator width="100%" height="100%" fontSize="12" cornerRadius="8">

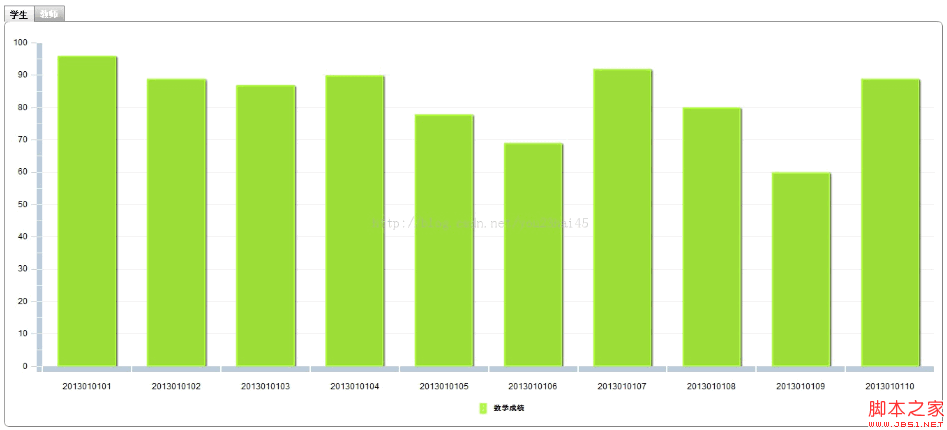

<s:NavigatorContent label="学生" width="100%" height="100%">
<mx:VBox width="100%" height="100%" paddingBottom="10" paddingLeft="10" paddingRight="10" paddingTop="10">
<mx:ColumnChart id="column" dataProvider="{studentArray}" showDataTips="true" width="100%" height="100%" fontSize="12">
<mx:horizontalAxis>
<mx:CategoryAxis categoryField="sno" displayName="学号"/>
</mx:horizontalAxis>
<mx:series>
<mx:ColumnSeries displayName="数学成绩" xField="sno" yField="math" fill="{sc1}" stroke="{s1}"/>
</mx:series>
</mx:ColumnChart>
<mx:HBox width="100%" height="30">
<s:Label width="50%"/>
<mx:Legend dataProvider="{column}"/>
</mx:HBox>
</mx:VBox>

</s:NavigatorContent>

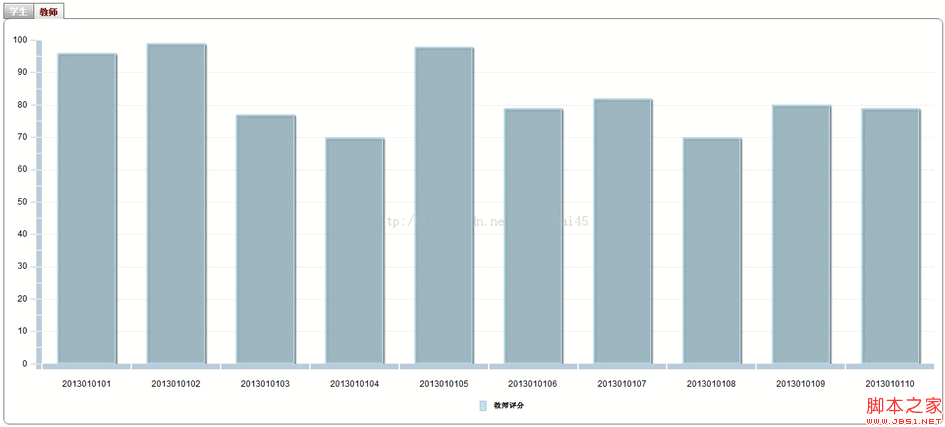

<s:NavigatorContent label="教师" width="100%" height="100%" fontSize="12">
<mx:VBox width="100%" height="100%" paddingBottom="10" paddingLeft="10" paddingRight="10" paddingTop="10">
<mx:ColumnChart id="column1" dataProvider="{teacherArray}" showDataTips="true" width="100%" height="100%" fontSize="12">
<mx:horizontalAxis>
<mx:CategoryAxis categoryField="tno" displayName="工号"/>
</mx:horizontalAxis>
<mx:series>
<mx:ColumnSeries displayName="教师评分" xField="tno" yField="tscore" fill="{sc2}" stroke="{s2}"/>
</mx:series>
</mx:ColumnChart>
<mx:HBox width="100%" height="30">
<s:Label width="50%"/>
<mx:Legend dataProvider="{column1}"/>
</mx:HBox>
</mx:VBox>
</s:NavigatorContent>
</mx:TabNavigator>
</mx:VBox>
</s:Application>
