本文是利用SharpPcap实现网络包的捕获的小例子，实现了端口监控，数据包捕获等功能，主要用于学习分享。
什么是SharpPcap？
SharpPcap 是一个.NET 环境下的网络包捕获框架，基于著名的 pcap/WinPcap 库开发。提供了捕获、注入、分析和构建的功能，适用于 C# 和 VB NET 开发语言。
SharpPcap有两部分组成：1> SharpPcap.dll 负责数据的捕获 2> PacketDotNet.dll负责数据包的解析
思路：
通过进程名字获取对应的端口号。
SharpPcap获取对应的数据包，通过解析数据包过滤相关的端口。
涉及知识点：
Process 获取相关进程信息。
netstat命令：netstat -ano|find "3844" 获取进程对应的端口
SharpPcap相关信息：
通过CaptureDeviceList的静态方法获取设备列表。
通过OnPacketArrival事件接收数据包。
通过PacketDotNet来解析数据包

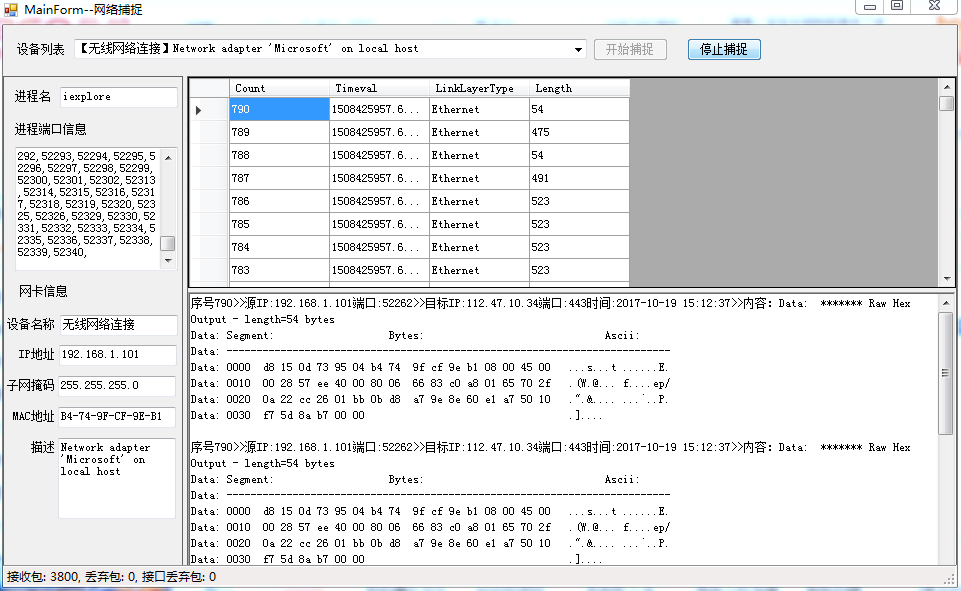

效果图下：
SharpPcap核心代码：
/// <summary>
/// 开始捕捉
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void btnStart_Click(object sender, EventArgs e)
{
if (this.combDevice.SelectedIndex > -1)
{
StartCapture(this.combDevice.SelectedIndex);
this.btnStart.Enabled = false;
this.btnStop.Enabled = true;
}
else {
MessageBox.Show(this,"请选择一个设备","提示",MessageBoxButtons.OK);
}
}
/// <summary>
/// 停止捕捉
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void btnStop_Click(object sender, EventArgs e)
{
Shutdown();
this.btnStop.Enabled = false;
this.btnStart.Enabled = true;
}
private void StartCapture(int itemIndex)
{
packetCount = 0;
device = CaptureDeviceList.Instance[itemIndex];
packetStrings = new Queue<PacketWrapper>();
bs = new BindingSource();
dgvData.DataSource = bs;
LastStatisticsOutput = DateTime.Now;
// start the background thread
backgroundThreadStop = false;
backgroundThread = new Thread(BackgroundThread);
backgroundThread.Start();
// setup background capture
device.OnPacketArrival += new PacketArrivalEventHandler(device_OnPacketArrival);
device.OnCaptureStopped += new CaptureStoppedEventHandler(device_OnCaptureStopped);
device.Open();
// tcpdump filter to capture only TCP/IP packets
string filter = "ip and tcp";
device.Filter = filter;
// force an initial statistics update
captureStatistics = device.Statistics;
UpdateCaptureStatistics();
// start the background capture
device.StartCapture();
btnStop.Enabled = true;
}
/// <summary>
/// 设备接收事件
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void device_OnPacketArrival(object sender, CaptureEventArgs e)
{
// print out periodic statistics about this device
var Now = DateTime.Now;
var interval = Now - LastStatisticsOutput;
if (interval > new TimeSpan(0, 0, 2))
{
Console.WriteLine("device_OnPacketArrival: " + e.Device.Statistics);
captureStatistics = e.Device.Statistics;
statisticsUiNeedsUpdate = true;
LastStatisticsOutput = Now;
}
lock (QueueLock)
{
PacketQueue.Add(e.Packet);
}
}
/// <summary>
/// 设备停止事件
/// </summary>
/// <param name="sender"></param>
/// <param name="status"></param>
private void device_OnCaptureStopped(object sender, CaptureStoppedEventStatus status)
{
if (status != CaptureStoppedEventStatus.CompletedWithoutError)
{
MessageBox.Show("Error stopping capture", "Error", MessageBoxButtons.OK, MessageBoxIcon.Error);
}
}
private void UpdateCaptureStatistics()
{
tlblStatistic.Text = string.Format("接收包: {0}, 丢弃包: {1}, 接口丢弃包: {2}", captureStatistics.ReceivedPackets,captureStatistics.DroppedPackets, captureStatistics.InterfaceDroppedPackets);
}
以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持脚本之家。
