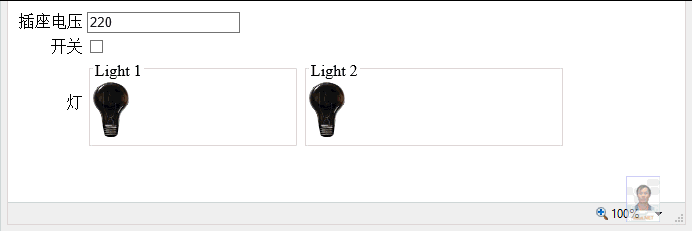

前天有一网友问及有关设计模式的适配器模式(Adapter)时，说不太好理解。让Insus.NET能否举个简单的例子来说明一下。下面的动画是Insus.NET做出来的效果:
上面的演示，两个灯的规格一样，要求输入的电压为15伏。
Light1是直接使用，而Light2是使用Adapter(电源适配器)。因此Light1只能接收15伏的电压，小于15伏，会提示电压过低，如果超过了15伏，Light1肯定被烧坏。
Light2使用了电源适配器，它接收15伏至220的电压，在这电压范围之内，电源适配器会把电压转为15的电压。小于15伏，会提示电压过低，如果超过了220伏，适配器被烧坏。
好，我们程序开始，先创建一个灯Light的类：
Light.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
/// <summary>
/// Summary description for Light
/// </summary>
namespace Insus.NET
{
public class Light
{
private int _InputVoltage = 15;
public int InputVoltage
{
get { return _InputVoltage; }
set
{
if (value < 15)
throw new Exception("电压过低。");
else if (value > 15)
throw new Exception("危险！电压过大灯烧坏。");
else
value = 15;
_InputVoltage = value;
}
}
public Light()
{
//
// TODO: Add constructor logic here
//
}
}
}
再创建一个灯的电源适配器：
PowerAdapter.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
/// <summary>
/// Summary description for PowerAdapter
/// </summary>
namespace Insus.NET
{
public class PowerAdapter : Light
{
Light _Light;
public PowerAdapter(Light light)
{
this._Light = light;
}
public int InputVoltage
{
get
{
return _Light.InputVoltage;
}
set
{
if (value < 15)
throw new Exception("电压过低。");
else if (value > 220)
throw new Exception("危险！电压过大电源适配器烧坏。");
else
value = 15;
_Light.InputVoltage = value;
}
}
}
}
如何测试它们，我们得模拟一个环境，创建一个网页Default.aspx：
Default.aspx
<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
<script type="text/javascript">
function isNumeric(keyCode) {
return ((keyCode >= 48 && keyCode <= 57) || keyCode == 8)
}
</script>
</head>
<body>
<form id="form1" runat="server">
<table>
<tr>
<td align="right">插座电压</td>
<td colspan="2">
<asp:TextBox ID="TextBox1" runat="server" onkeydown="return isNumeric(event.keyCode);" Text="220"></asp:TextBox></td>
</tr>
<tr>
<td align="right">开关</td>
<td colspan="2">
<asp:CheckBox ID="CheckBoxSwitch" runat="server" AutoPostBack="true" OnCheckedChanged="CheckBoxSwitch_CheckedChanged" /></td>
</tr>
<tr>
<td align="right">灯</td>
<td>
<fieldset style="width: 200px;">
<legend>Light 1
</legend>
<asp:Image ID="Image1" runat="server" ImageUrl="Images/Light_C.gif" Width="36" Height="55" /><br />
<asp:Label ID="Label1" runat="server" Text=""></asp:Label>
</fieldset>
</td>
<td>
<fieldset style="width: 250px;">
<legend>Light 2
</legend>
<asp:Image ID="Image2" runat="server" ImageUrl="Images/Light_C.gif" Width="36" Height="55" /><br />
<asp:Label ID="Label2" runat="server" Text=""></asp:Label>
</fieldset>
</td>
</tr>
</table>
</form>
</body>
</html>
接下来，看看开关的事开与关的事件，有详细的注解：
Default.aspx.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using Insus.NET;
public partial class _Default : System.Web.UI.Page
{
string offLight = "~/Images/Light_C.gif";
string onLight = "~/Images/Light_O.gif";
protected void Page_Load(object sender, EventArgs e)
{
}
protected void CheckBoxSwitch_CheckedChanged(object sender, EventArgs e)
{
var cb = (CheckBox)sender;
//插座缺少电压为220伏
int input = Convert.ToInt32(string.IsNullOrEmpty(this.TextBox1.Text.Trim()) ? "220" : this.TextBox1.Text.Trim());
//开关打开
if (cb.Checked)
{
try
{
//实例一个电灯
Light light = new Light();
//插入插座，使用插座电压
light.InputVoltage = input;
//电灯被打开
this.Image1.ImageUrl = onLight;
//显示正常输出电压
this.Label1.Text = light.InputVoltage.ToString();
}
catch (Exception ex)
{
//如果电压不正常，电灯打不开或是被烧坏。
this.Image1.ImageUrl = offLight;
//显示异常信息。
this.Label1.Text = ex.Message;
}
try
{
Light light = new Light();
//使用电源适配器
PowerAdapter pa = new PowerAdapter(light);
pa.InputVoltage = input;
this.Image2.ImageUrl = onLight;
this.Label2.Text = pa.InputVoltage.ToString();
}
catch (Exception ex)
{
this.Image2.ImageUrl = offLight;
this.Label2.Text = ex.Message;
}
this.TextBox1.Enabled = false;
}
//开关关闭
else
{
this.TextBox1.Text = string.Empty;
this.TextBox1.Enabled = true;
this.Image1.ImageUrl = offLight;
this.Image2.ImageUrl = offLight;
}
}
}
11：44分，补充下面内容，有网友问及
演示完整代码(.NET Framework 4.0)
