android popupwindow用法详解

所属分类：软件编程 / Android 阅读数： 57

收藏 0赞 0分享

本文实例为大家分享了android popupwindow的用法，供大家参考，具体内容如下

一、基本用法

一般做法，新建类继承popupwindow。例

/**
 * popupwindow基本用法
 * Created by Administrator on 2015/11/25.
 */
public class DemoBasePop extends PopupWindow {
  private LinearLayout linear_layout;
  private TextView dbp_text;
  private Context context;
  public DemoBasePop(final Activity context) {
    super(context);
    this.context = context;
    View view = LayoutInflater.from(context).inflate(R.layout.demo_base_pop,null);

    setContentView(view);
    setWidth(ViewGroup.LayoutParams.MATCH_PARENT);
    setHeight(200);
//    setHeight(ViewGroup.LayoutParams.MATCH_PARENT);

    setFocusable(true);
    setBackgroundDrawable(new BitmapDrawable());
    setTouchable(true);
    setOutsideTouchable(true);
    setAnimationStyle(R.style.popwin_anim_style);
//    setAnimationStyle(0);   0是没有animation

    initView(view);

  }

  private void initView(View view) {
    dbp_text = (TextView) view.findViewById(R.id.dbp_text);
  }

}

研究下popupwindow源码，以showAsDropDown来讲

public void showAsDropDown(View anchor, int xoff, int yoff) {
    if (isShowing() || mContentView == null) {
      return;
    }

    registerForScrollChanged(anchor, xoff, yoff);

    mIsShowing = true;
    mIsDropdown = true;

    WindowManager.LayoutParams p = createPopupLayout(anchor.getWindowToken());
    preparePopup(p);

    updateAboveAnchor(findDropDownPosition(anchor, p, xoff, yoff));

    if (mHeightMode < 0) p.height = mLastHeight = mHeightMode;
    if (mWidthMode < 0) p.width = mLastWidth = mWidthMode;

    p.windowAnimations = computeAnimationResource();

    invokePopup(p);
  }

第11行创建WindowManager.LayoutParams。第12行preparePopup（）中：

if (mBackground != null) {
      final ViewGroup.LayoutParams layoutParams = mContentView.getLayoutParams();
      int height = ViewGroup.LayoutParams.MATCH_PARENT;
      if (layoutParams != null &&
          layoutParams.height == ViewGroup.LayoutParams.WRAP_CONTENT) {
        height = ViewGroup.LayoutParams.WRAP_CONTENT;
      }

      // when a background is available, we embed the content view
      // within another view that owns the background drawable
      PopupViewContainer popupViewContainer = new PopupViewContainer(mContext);
      PopupViewContainer.LayoutParams listParams = new PopupViewContainer.LayoutParams(
          ViewGroup.LayoutParams.MATCH_PARENT, height
      );
      popupViewContainer.setBackgroundDrawable(mBackground);
      popupViewContainer.addView(mContentView, listParams);

      mPopupView = popupViewContainer;
    } else {
      mPopupView = mContentView;
    }

如果做了setBackgroundDrawable(new BitmapDrawable());那么mBackground则不为空，则会用PopupViewContainer作为mPopupView（即内容view）。而PopupViewContainer的dispatchKeyEvent对返回键做了处理，按返回键后其中调用dismiss（）方法。其onTouchEvent对触摸事件做了处理，其源码：

public boolean onTouchEvent(MotionEvent event) {
      final int x = (int) event.getX();
      final int y = (int) event.getY();
      <span style="font-family: 宋体; font-size: 9pt;">//点击外部隐藏</span>
      if ((event.getAction() == MotionEvent.ACTION_DOWN)
          && ((x < 0) || (x >= getWidth()) || (y < 0) || (y >= getHeight()))) {
        dismiss();
        return true;
      } else if (event.getAction() == MotionEvent.ACTION_OUTSIDE) {
        dismiss();
        return true;
      } else {
        return super.onTouchEvent(event);
      }
    }

系统做了这些处理，随之而来一个问题，如果我们要监听物理返回键该怎么办。看了上面的过程，我们可以想到将

setBackgroundDrawable(null);然后通过设置view的key监听，监听到后做相应的处理。
view.setOnKeyListener(new View.OnKeyListener() {
      @Override
      public boolean onKey(View v, int keyCode, KeyEvent event) {
        if (event.getKeyCode() == KeyEvent.KEYCODE_BACK) {
          if (event.getAction() == KeyEvent.ACTION_DOWN
              && event.getRepeatCount() == 0) {
            outAnimator.start();
            return true;
          }
        }
        return false;
      }
    });

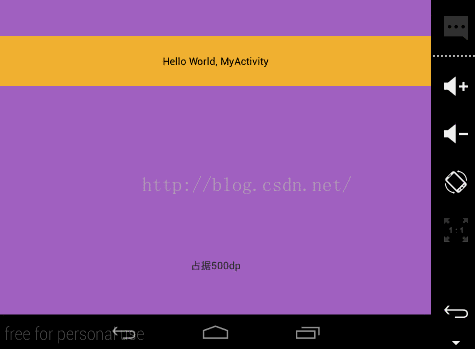

效果图：
