我要画出一块由不规则path组成的区域，并且这个path因为视觉效果需要设置圆角，我就通过Paint.setPathEffect(new CornerPathEffect(300)); 给设置了圆角，但是在通过这个path组合成区域的时候因为这个圆角的设置整个区域都有圆角的效果了，这不是我想要的。

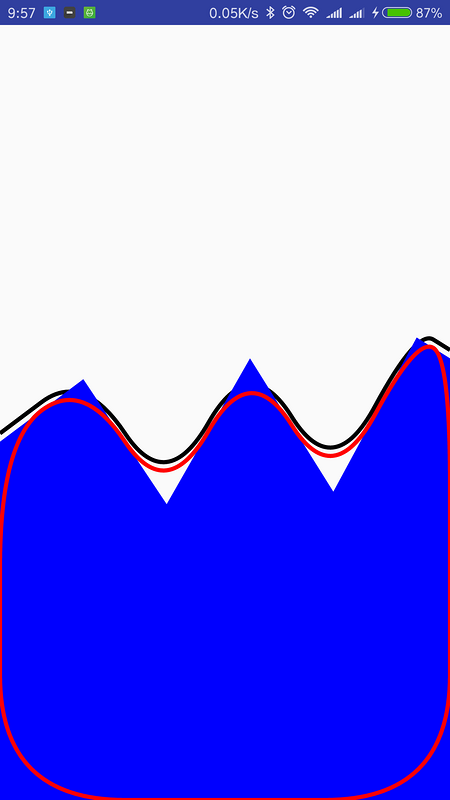

如图，黑色是我的path，红色是我设置了圆角的由path组成的区域。四个角落都有了圆角的效果，这不是我想要的。
而蓝色区域是未设置圆角的，此时path一侧的区域就不符合标准了。
以下是我的全部代码
public class PathEffectView extends View {
private Path line;
private Paint linePaint;
private Path range;
private Paint rangePaint;
private final Paint paint3;
public PathEffectView(Context context, @Nullable AttributeSet attrs) {
super(context, attrs);
linePaint = new Paint(Paint.ANTI_ALIAS_FLAG);
linePaint.setStrokeWidth(10);
linePaint.setColor(Color.BLACK);
linePaint.setStyle(Paint.Style.STROKE);
linePaint.setPathEffect(new CornerPathEffect(300));
rangePaint = new Paint(linePaint);
rangePaint.setColor(Color.BLUE);
rangePaint.setStyle(Paint.Style.FILL);
paint3 = new Paint(linePaint);
paint3.setColor(Color.RED);
}
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
line = new Path();
range = new Path();
line.moveTo(0,1000);
line.rLineTo(200,-150);
line.rLineTo(200,300);
line.rLineTo(200,-350);
line.rLineTo(200,320);
line.rLineTo(200,-370);
line.lineTo(w,800);
range.addPath(line);
range.lineTo(w,h);
rangePaint.setPathEffect(null);
range.lineTo(0,h);
range.close();
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
canvas.save();
canvas.translate(0,-20);
canvas.drawPath(line, linePaint);
canvas.restore();
canvas.drawPath(range, rangePaint);
canvas.drawPath(range,paint3);
}
}
