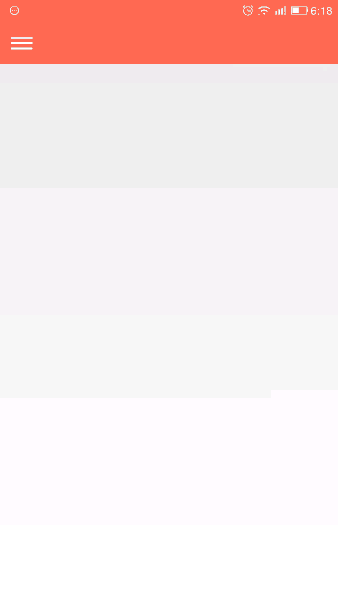

先给大家展示下效果图:
这个效果是安卓5.0推出 “材料设计” Ui效果 以前一直没留意到,写篇文章当成备忘录
上面的效果图 用 DrawerLayout和Toolbar实现
布局如下
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#fff0ff"
android:orientation="vertical"
tools:context="a.fmy.com.myapplication.MainActivity">
<!--标题栏-->
<android.support.v7.widget.Toolbar
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="?attr/colorPrimary"
android:minHeight="?attr/actionBarSize" />
<android.support.v4.widget.DrawerLayout
android:id="@+id/activity_main"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#0ff"
>
<!--内容-->
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#ff0"></LinearLayout>
<!--菜单-->
<LinearLayout
android:layout_width="200dp"
android:layout_height="match_parent"
android:layout_gravity="start"
android:background="#f0f" />
</android.support.v4.widget.DrawerLayout>
</LinearLayout>
activity 代码
public class MainActivity extends AppCompatActivity {
private Toolbar toobar;
private ActionBarDrawerToggle actionBarDrawerToggle;
private DrawerLayout drawerLayout;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
toobar = (Toolbar) findViewById(R.id.toolbar);
//设置toobar为标题栏
setSupportActionBar(toobar);
//设置显示旋转菜单
getSupportActionBar().setDisplayHomeAsUpEnabled(true);
//抽屉布局
drawerLayout = ((DrawerLayout) findViewById(R.id.activity_main));
//activitybar开关
actionBarDrawerToggle = new ActionBarDrawerToggle(this, drawerLayout, R.string.app_name, R.string.app_name);
//同步开关 如果不写的话, 滑动开关 按钮一直就一个状态 不会变化
actionBarDrawerToggle.syncState();
//添加监听
drawerLayout.addDrawerListener(actionBarDrawerToggle);
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
//这里是让用户点击按钮的时候可以打开抽屉
return actionBarDrawerToggle.onOptionsItemSelected(item)
|| super.onOptionsItemSelected(item);
}
}
