Android-如何将RGB彩色图转换为灰度图方法介绍

实例：RGB2Grey

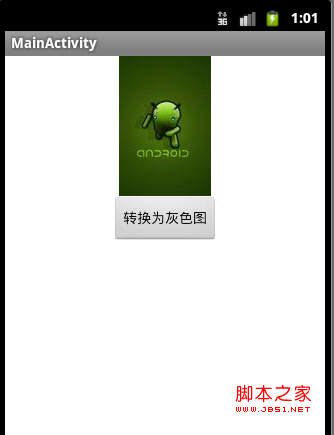

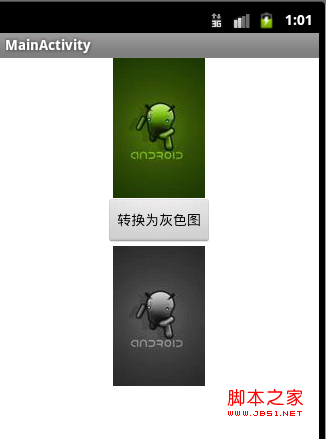

项目运行效果图：

源代码：

[java]
public class MainActivity extends Activity {

    /* (non-Javadoc)
     * @see android.app.Activity#onCreate(android.os.Bundle)
     */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        //通过Id来获取界面中组件的引用
        Button rgb2greyBtn  = (Button) findViewById(R.id.rgb2greybtn);
        ImageView imageView1 = (ImageView) findViewById(R.id.imageView1);
        final ImageView imageView2 = (ImageView) findViewById(R.id.imageView2);
        //通过位图工厂，创建一个位图
        final Bitmap bitmap = BitmapFactory.decodeResource(getResources(), R.drawable.ic_android);
        imageView1.setImageBitmap(bitmap);
        //为“转换为灰度图”按钮添加监听事件
        rgb2greyBtn.setOnClickListener(new OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                //将转换过后的灰度图显示出来
                imageView2.setImageBitmap(convertGreyImg(bitmap));
            }
        });

    }

    /**
     * 将彩色图转换为灰度图
     * @param img 位图
     * @return  返回转换好的位图
     */
    public Bitmap convertGreyImg(Bitmap img) {
        int width = img.getWidth();         //获取位图的宽
        int height = img.getHeight();       //获取位图的高

        int []pixels = new int[width * height]; //通过位图的大小创建像素点数组

        img.getPixels(pixels, 0, width, 0, 0, width, height);
        int alpha = 0xFF << 24;
        for(int i = 0; i < height; i++)  {
            for(int j = 0; j < width; j++) {
                int grey = pixels[width * i + j];

                int red = ((grey  & 0x00FF0000 ) >> 16);
                int green = ((grey & 0x0000FF00) >> 8);
                int blue = (grey & 0x000000FF);

                grey = (int)((float) red * 0.3 + (float)green * 0.59 + (float)blue * 0.11);
                grey = alpha | (grey << 16) | (grey << 8) | grey;
                pixels[width * i + j] = grey;
            }
        }
        Bitmap result = Bitmap.createBitmap(width, height, Config.RGB_565);
        result.setPixels(pixels, 0, width, 0, 0, width, height);
        return result;
    }
}

public class MainActivity extends Activity {

    /* (non-Javadoc)
     * @see android.app.Activity#onCreate(android.os.Bundle)
     */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        //通过Id来获取界面中组件的引用
        Button rgb2greyBtn  = (Button) findViewById(R.id.rgb2greybtn);
        ImageView imageView1 = (ImageView) findViewById(R.id.imageView1);
        final ImageView imageView2 = (ImageView) findViewById(R.id.imageView2);
        //通过位图工厂，创建一个位图
        final Bitmap bitmap = BitmapFactory.decodeResource(getResources(), R.drawable.ic_android);
        imageView1.setImageBitmap(bitmap);
        //为“转换为灰度图”按钮添加监听事件
        rgb2greyBtn.setOnClickListener(new OnClickListener() {

   @Override
   public void onClick(View v) {
    // TODO Auto-generated method stub
    //将转换过后的灰度图显示出来
    imageView2.setImageBitmap(convertGreyImg(bitmap));
   }
  });

    }

    /**
     * 将彩色图转换为灰度图
     * @param img 位图
     * @return 返回转换好的位图
     */
    public Bitmap convertGreyImg(Bitmap img) {
     int width = img.getWidth();   //获取位图的宽
     int height = img.getHeight();  //获取位图的高

     int []pixels = new int[width * height]; //通过位图的大小创建像素点数组

     img.getPixels(pixels, 0, width, 0, 0, width, height);
     int alpha = 0xFF << 24;
     for(int i = 0; i < height; i++) {
      for(int j = 0; j < width; j++) {
       int grey = pixels[width * i + j];

       int red = ((grey  & 0x00FF0000 ) >> 16);
       int green = ((grey & 0x0000FF00) >> 8);
       int blue = (grey & 0x000000FF);

       grey = (int)((float) red * 0.3 + (float)green * 0.59 + (float)blue * 0.11);
       grey = alpha | (grey << 16) | (grey << 8) | grey;
       pixels[width * i + j] = grey;
      }
     }
     Bitmap result = Bitmap.createBitmap(width, height, Config.RGB_565);
     result.setPixels(pixels, 0, width, 0, 0, width, height);
     return result;
    }
}


布局文件：

[html]
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/LinearLayout1"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical" >
    <ImageView
        android:id="@+id/imageView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal"
        />
    <Button
        android:id="@+id/rgb2greybtn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/rgb2greybtn"
        android:layout_gravity="center_horizontal"/>
    <ImageView
        android:id="@+id/imageView2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal"
        />"
</LinearLayout>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/LinearLayout1"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical" >
 <ImageView
     android:id="@+id/imageView1"
     android:layout_width="wrap_content"
     android:layout_height="wrap_content"
     android:layout_gravity="center_horizontal"
     />
 <Button
     android:id="@+id/rgb2greybtn"
     android:layout_width="wrap_content"
     android:layout_height="wrap_content"
     android:text="@string/rgb2greybtn"
     android:layout_gravity="center_horizontal"/>
 <ImageView
     android:id="@+id/imageView2"
     android:layout_width="wrap_content"
     android:layout_height="wrap_content"
     android:layout_gravity="center_horizontal"
     />"
</LinearLayout>
