本文重点给大家介绍鸿蒙开发之Button按钮类型及如何通过代码设置(HarmonyOS鸿蒙开发基础知识)，具体内容如下所示：

Button类型分类

按照按钮的形状，按钮可以分为：

普通按钮
椭圆按钮
胶囊按钮
圆形按钮
其它

Button类型效果和代码

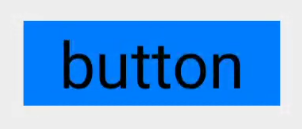

普通按钮

普通按钮和其他按钮的区别在于不需要设置任何形状，只设置文本和背景颜色即可，例如：

<Button
 ohos:width="150vp"
 ohos:height="50vp"
 ohos:text_size="27fp"
 ohos:text="button"
 ohos:background_element="$graphic:color_blue_element"
 ohos:left_margin="15vp"
 ohos:bottom_margin="15vp"
 ohos:right_padding="8vp"
 ohos:left_padding="8vp"
/>

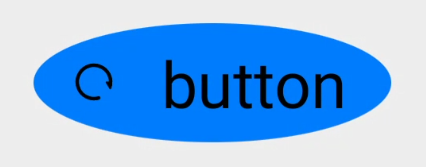

椭圆按钮

椭圆按钮是通过设置background_element的来实现的，background_element的shape设置为椭圆（oval），例如：

<Button
 ohos:width="150vp"
 ohos:height="50vp"
 ohos:text_size="27fp"
 ohos:text="button"
 ohos:background_element="$graphic:oval_button_element"
 ohos:left_margin="15vp"
 ohos:bottom_margin="15vp"
 ohos:right_padding="8vp"
 ohos:left_padding="8vp"
 ohos:element_left="$graphic:ic_btn_reload"
/>

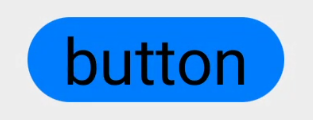

胶囊按钮

胶囊按钮是一种常见的按钮，设置按钮背景时将背景设置为矩形形状，并且设置ShapeElement的radius的半径，例如：

<Button
 ohos:id="$+id:button"
 ohos:width="match_content"
 ohos:height="match_content"
 ohos:text_size="27fp"
 ohos:text="button"
 ohos:background_element="$graphic:capsule_button_element"
 ohos:left_margin="15vp"
 ohos:bottom_margin="15vp"
 ohos:right_padding="15vp"
 ohos:left_padding="15vp"
/>

圆形按钮

圆形按钮和椭圆按钮的区别在于组件本身的宽度和高度需要相同，例如：

<Button
 ohos:id="$+id:button4"
 ohos:width="50vp"
 ohos:height="50vp"
 ohos:text_size="27fp"
 ohos:background_element="$graphic:circle_button_element"
 ohos:text="+"
 ohos:left_margin="15vp"
 ohos:bottom_margin="15vp"
 ohos:right_padding="15vp"
 ohos:left_padding="15vp"
/>

场景示例

利用圆形按钮，胶囊按钮，文本组件可以绘制出如下拨号盘的UI界面。

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
 xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:width="match_parent"
 ohos:height="match_parent"
 ohos:background_element="$graphic:color_light_gray_element"
 ohos:orientation="vertical">
 <Text
 ohos:width="match_content"
 ohos:height="match_content"
 ohos:text_size="20fp"
 ohos:text="0123456789"
 ohos:background_element="$graphic:green_text_element"
 ohos:text_alignment="center"
 ohos:layout_alignment="horizontal_center"
 />
 <DirectionalLayout
 ohos:width="match_parent"
 ohos:height="match_content"
 ohos:alignment="horizontal_center"
 ohos:orientation="horizontal"
 ohos:top_margin="5vp"
 ohos:bottom_margin="5vp">
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="1"
  ohos:text_alignment="center"
 />
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="2"
  ohos:left_margin="5vp"
  ohos:right_margin="5vp"
  ohos:text_alignment="center"
 />
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="3"
  ohos:text_alignment="center"
 />
 </DirectionalLayout>
 <DirectionalLayout
 ohos:width="match_parent"
 ohos:height="match_content"
 ohos:alignment="horizontal_center"
 ohos:orientation="horizontal"
 ohos:bottom_margin="5vp">
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="4"
  ohos:text_alignment="center"
 />
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:left_margin="5vp"
  ohos:right_margin="5vp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="5"
  ohos:text_alignment="center"
 />
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="6"
  ohos:text_alignment="center"
 />
 </DirectionalLayout>
 <DirectionalLayout
 ohos:width="match_parent"
 ohos:height="match_content"
 ohos:alignment="horizontal_center"
 ohos:orientation="horizontal"
 ohos:bottom_margin="5vp">
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="7"
  ohos:text_alignment="center"
 />
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:left_margin="5vp"
  ohos:right_margin="5vp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="8"
  ohos:text_alignment="center"
 />
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="9"
  ohos:text_alignment="center"
 />
 </DirectionalLayout>
 <DirectionalLayout
 ohos:width="match_parent"
 ohos:height="match_content"
 ohos:alignment="horizontal_center"
 ohos:orientation="horizontal"
 ohos:bottom_margin="5vp">
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="*"
  ohos:text_alignment="center"
 />
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:left_margin="5vp"
  ohos:right_margin="5vp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="0"
  ohos:text_alignment="center"
 />
 <Button
  ohos:width="40vp"
  ohos:height="40vp"
  ohos:text_size="15fp"
  ohos:background_element="$graphic:green_circle_button_element"
  ohos:text="#"
  ohos:text_alignment="center"
 />
 </DirectionalLayout>
 <Button
 ohos:width="match_content"
 ohos:height="match_content"
 ohos:text_size="15fp"
 ohos:text="CALL"
 ohos:background_element="$graphic:green_capsule_button_element"
 ohos:bottom_margin="5vp"
 ohos:text_alignment="center"
 ohos:layout_alignment="horizontal_center"
 ohos:left_padding="10vp"
 ohos:right_padding="10vp"
 ohos:top_padding="2vp"
 ohos:bottom_padding="2vp"
 />
</DirectionalLayout>

总结
