Maven搭建springboot项目

本文是基于Windows 10系统环境，使用Maven搭建springboot项目

Windows 10
apache-maven-3.6.0
IntelliJ IDEA 2018.3.4 x64

一、springboot项目搭建

(1) 新建目录

在某个可用目录下，新建一个文件夹，本文新建目录为 D:\demo\zs200

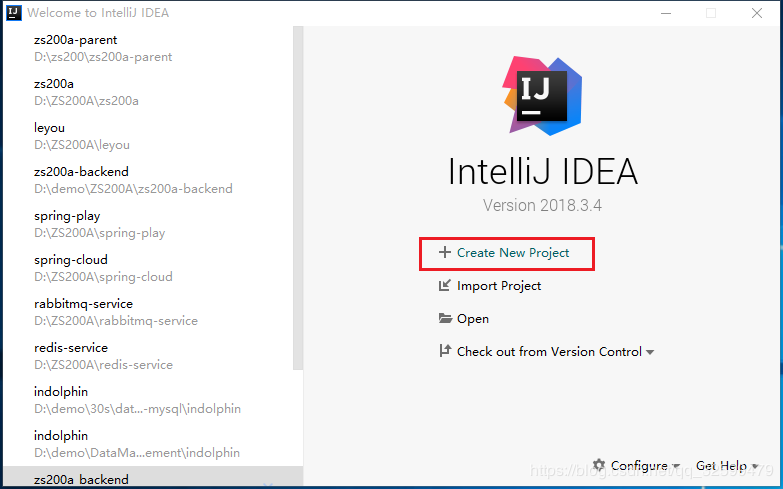

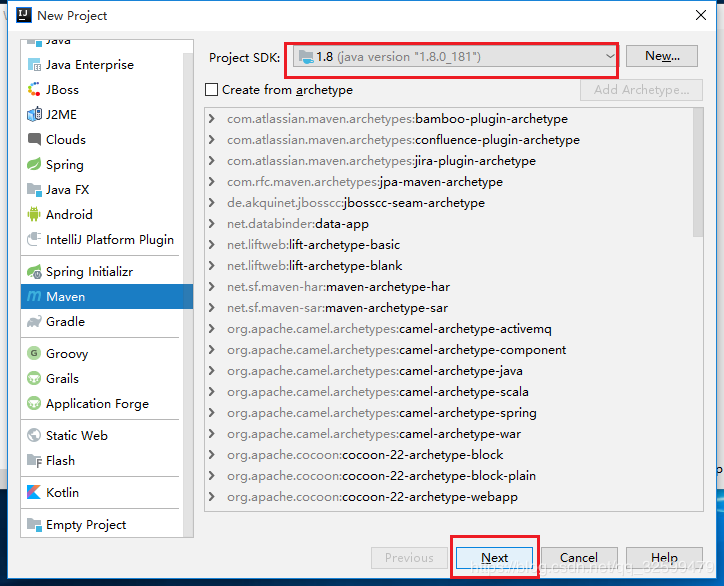

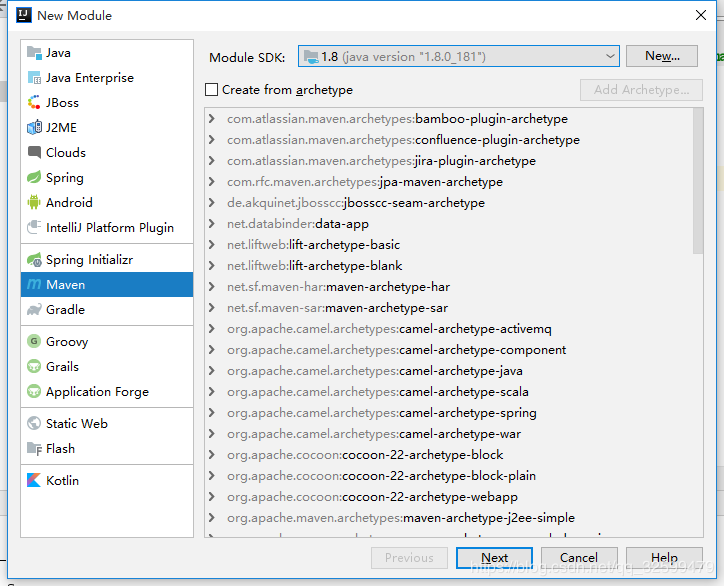

(2) 创建maven父工程zs200a-parent

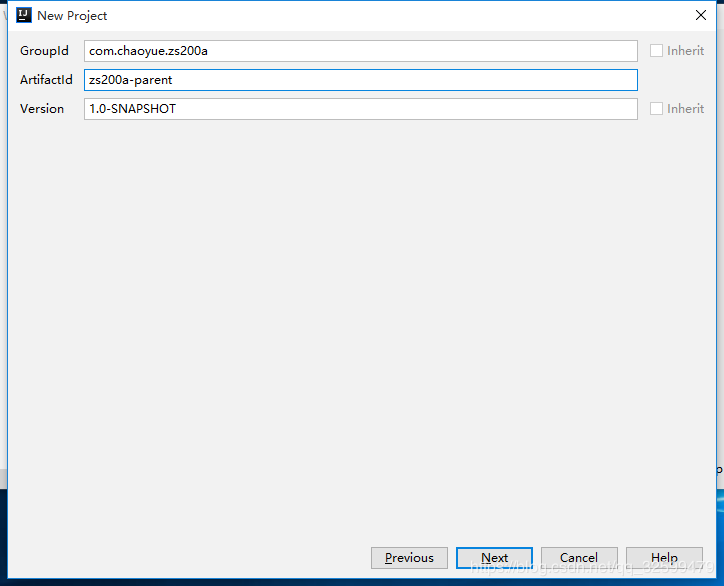

填写项目maven坐标

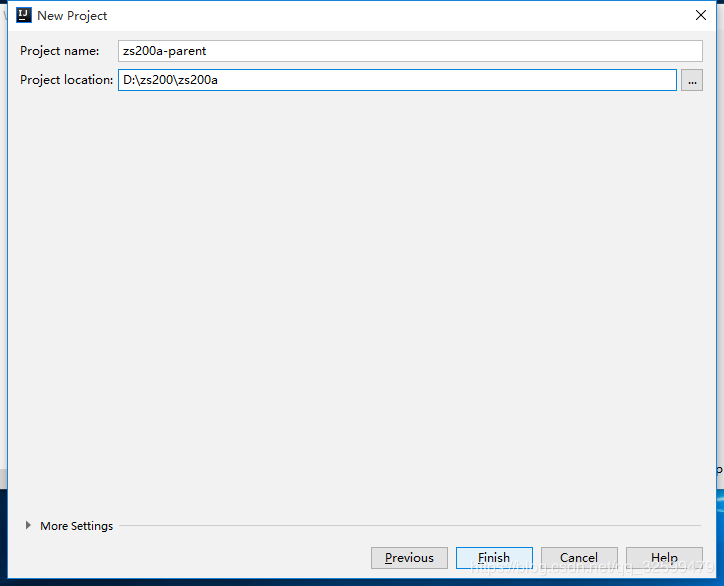

填写项目名称和路径

(2) maven父工程zs200a-parent的pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.chaoyue.zs200a</groupId>
  <artifactId>zs200a-parent</artifactId>
  <version>1.0-SNAPSHOT</version>

  <packaging>pom</packaging>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.0.6.RELEASE</version>
    <relativePath/>
  </parent>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
    <spring-cloud.version>Finchley.SR2</spring-cloud.version>
  </properties>

  <dependencyManagement>
    <dependencies>
      <!-- springCloud -->
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>${spring-cloud.version}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

</project>

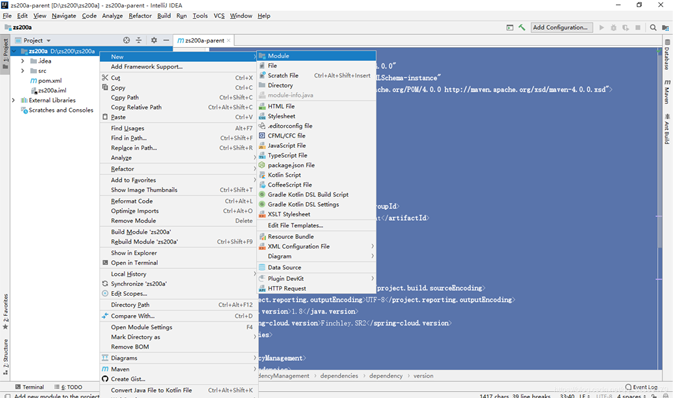

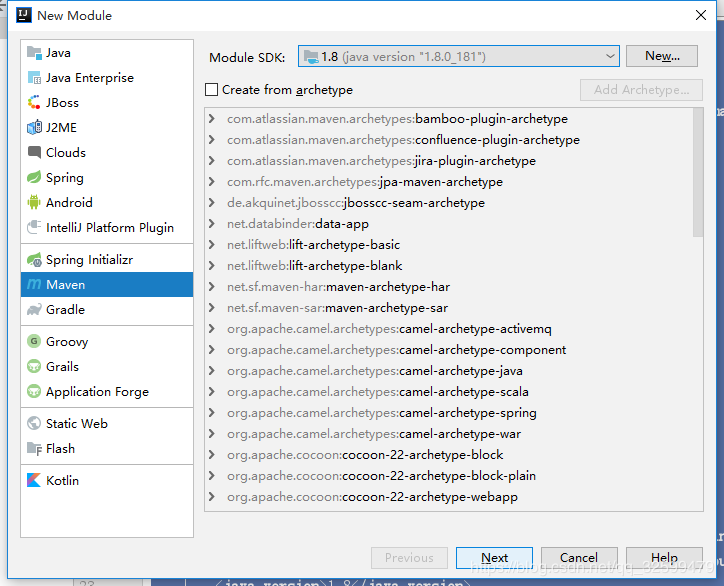

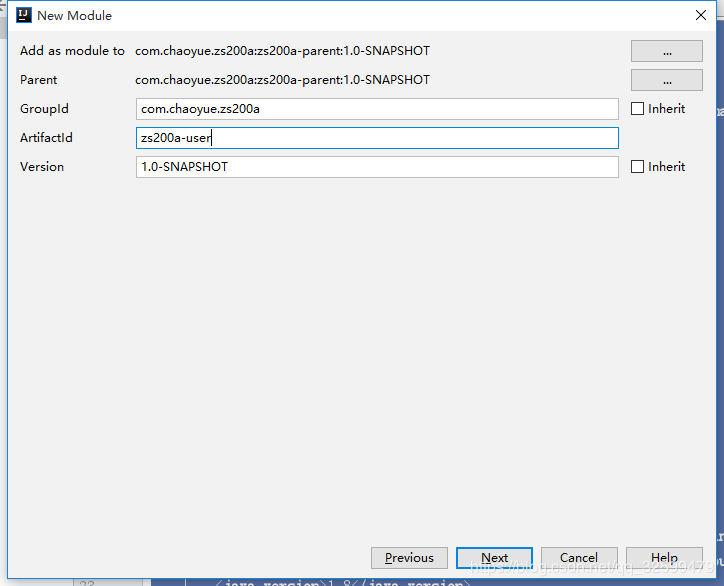

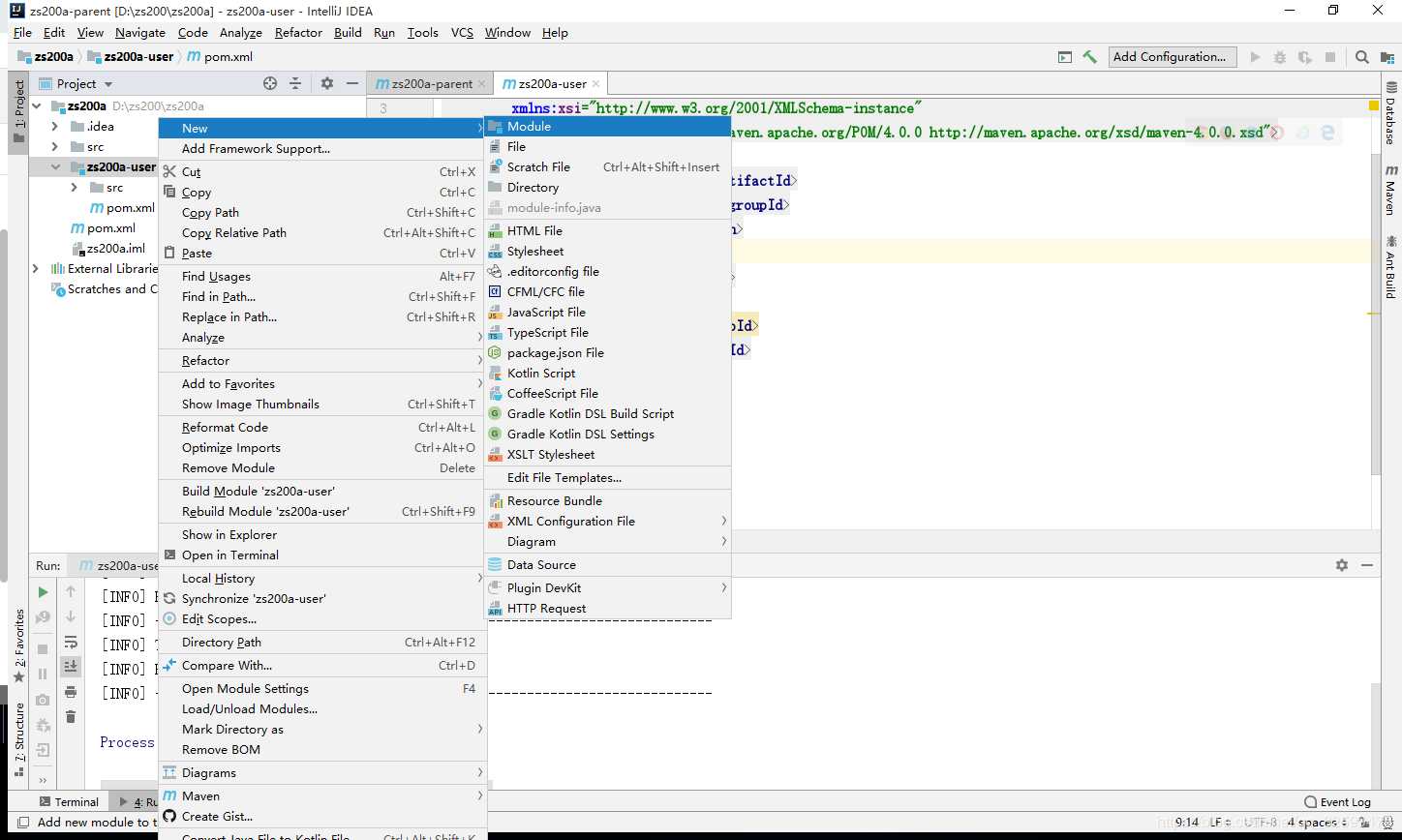

(3) 创建maven子工程zs200a-user

(4) maven子工程zs200a-user的pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <parent>
    <artifactId>zs200a-parent</artifactId>
    <groupId>com.chaoyue.zs200a</groupId>
    <version>1.0-SNAPSHOT</version>
  </parent>
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.chaoyue.zs200a</groupId>
  <artifactId>zs200a-user</artifactId>
  <version>1.0-SNAPSHOT</version>

  <packaging>pom</packaging>

</project>

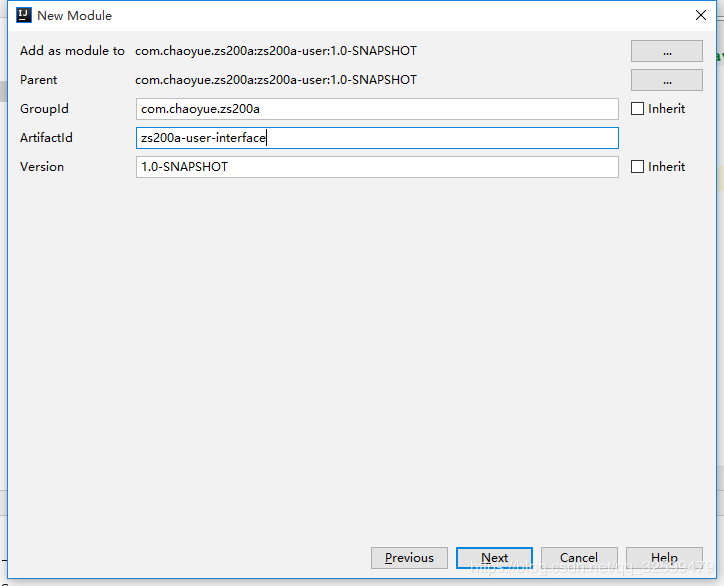

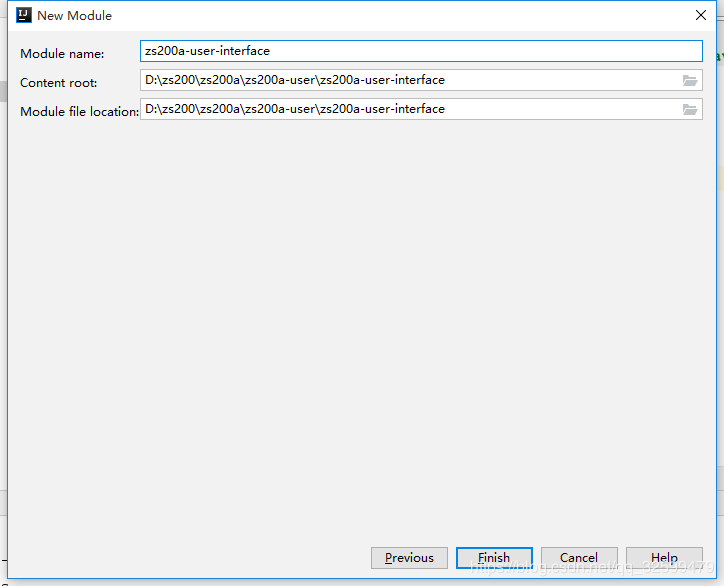

(5) 创建maven子工程zs200a-user-interface

(6) maven子工程zs200a-user-interface的pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <parent>
    <artifactId>zs200a-user</artifactId>
    <groupId>com.chaoyue.zs200a</groupId>
    <version>1.0-SNAPSHOT</version>
  </parent>
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.chaoyue.zs200a</groupId>
  <artifactId>zs200a-user-interface</artifactId>
  <version>1.0-SNAPSHOT</version>

  <dependencies>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
    </dependency>
  </dependencies>

</project>

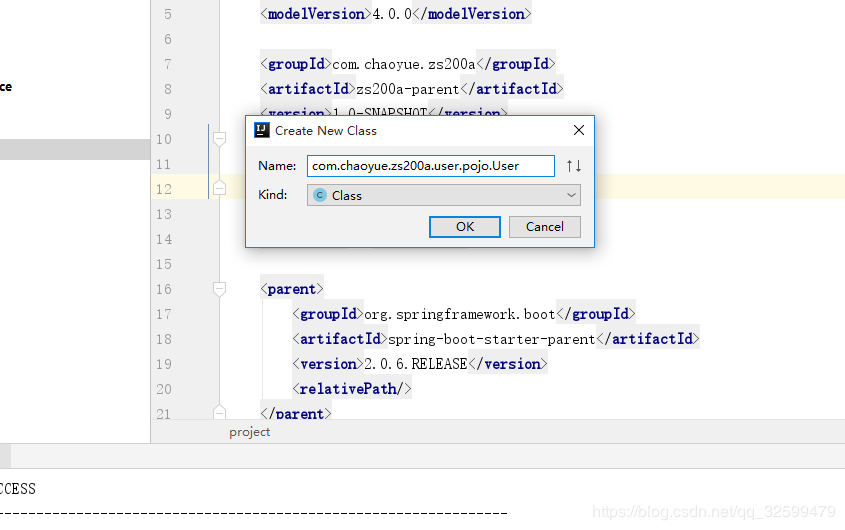

(7) zs200a-user-interface工程中新建一个User类

package com.chaoyue.zs200a.user.pojo;
import lombok.Data;
import java.util.Date;

@Data
public class User {
  private Long id;
  private String username;
  private String password;
  private String phone;
  private Date created;
  private String salt;
}

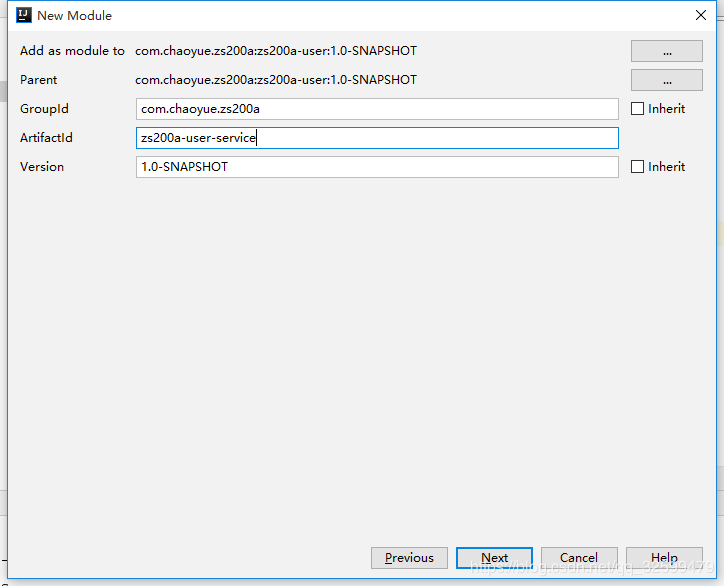

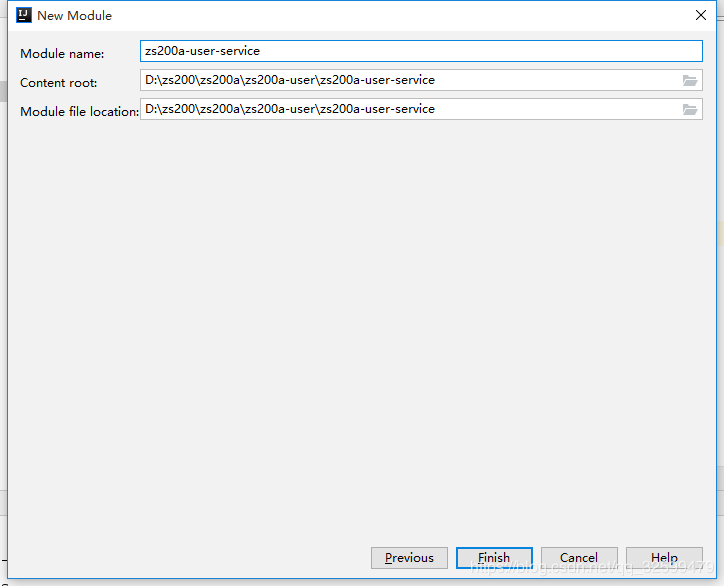

(8) 创建maven子工程zs200a-user-service

(9) maven子工程zs200a-user-service的pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <parent>
    <artifactId>zs200a-user</artifactId>
    <groupId>com.chaoyue.zs200a</groupId>
    <version>1.0-SNAPSHOT</version>
  </parent>
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.chaoyue.zs200a</groupId>
  <artifactId>zs200a-user-service</artifactId>
  <version>1.0-SNAPSHOT</version>

  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
      <groupId>com.chaoyue.zs200a</groupId>
      <artifactId>zs200a-user-interface</artifactId>
      <version>1.0-SNAPSHOT</version>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>
</project>

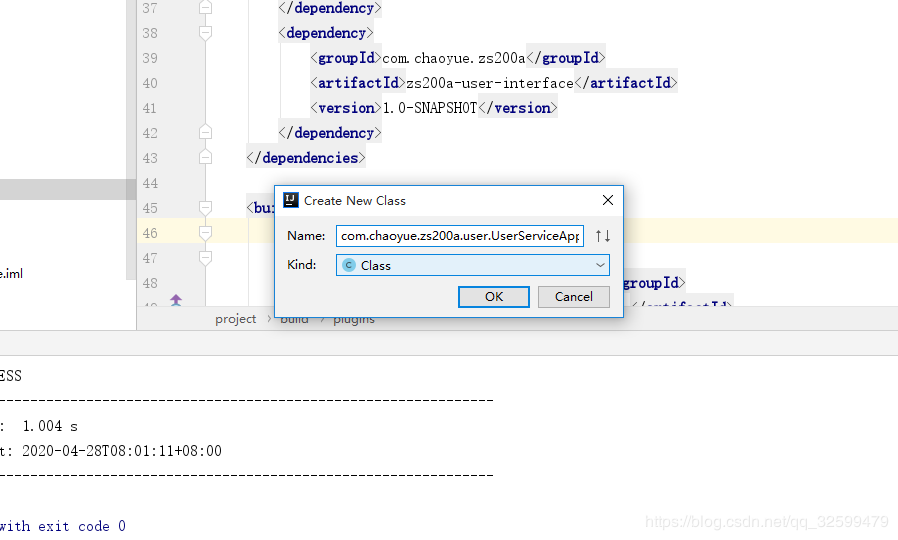

(10) zs200a-user-service工程中新建一个UserServiceApplication类

package com.chaoyue.zs200a.user;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableDiscoveryClient
public class UserServiceApplication {
  public static void main(String[] args) {

    SpringApplication.run(UserServiceApplication.class, args);
  }
}

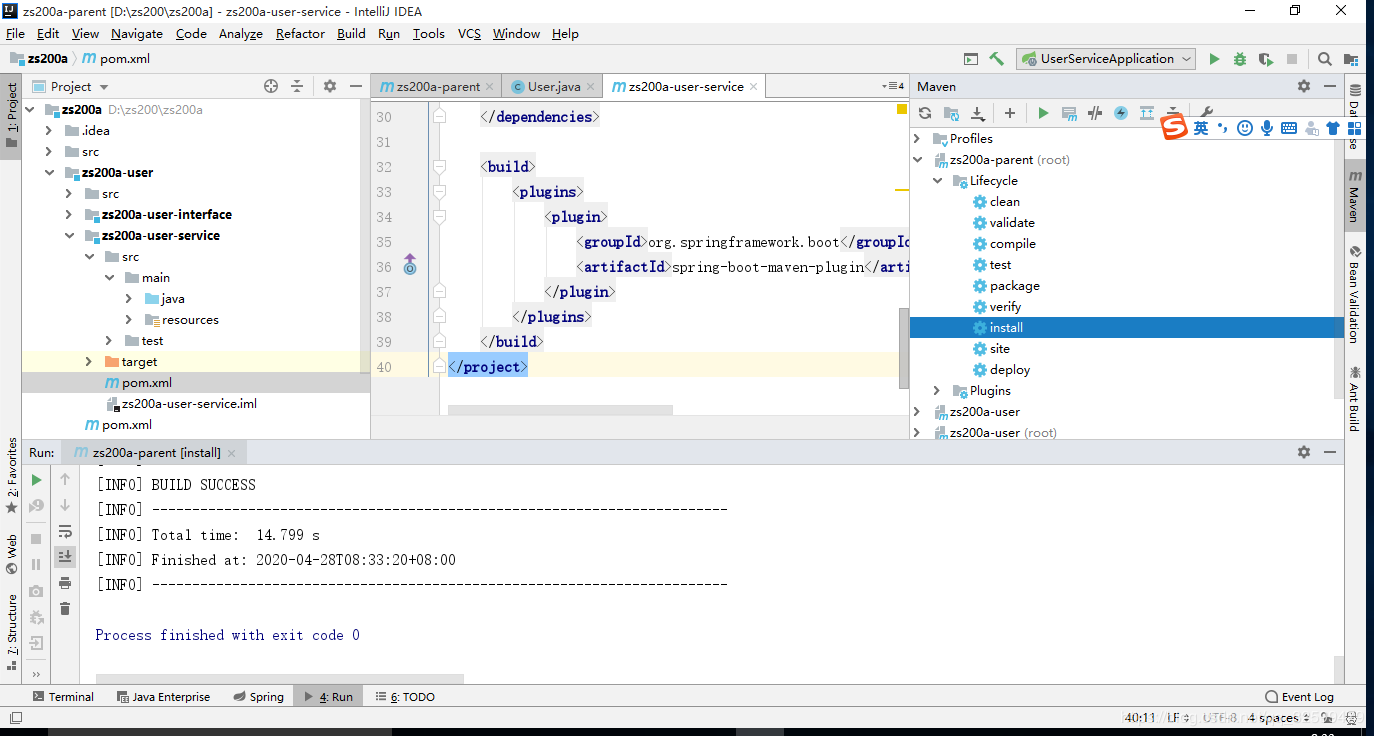

(11) maven工程整体打包并部署到本地仓库
