java swing实现QQ账号密码输入框

所属分类：软件编程 / java 阅读数： 73

收藏 0赞 0分享

本文实例为大家分享了Java swing 仿QQ账号密码输入框，供大家参考，具体内容如下

主要思路是自己定义 AccountPanel 和 PasswordPanel 类，继承JPanel，通过 paintComponent(Graphics g) 方法重绘面板，实现目标样式。

先上效果图

正常显示效果:

鼠标放在控件上时的效果:

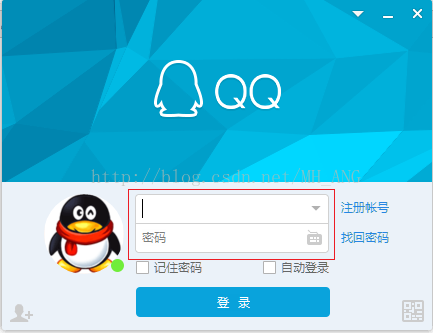

腾讯QQ登录界面的账号密码输入部分效果比对:

下面直接给出代码吧

AccountPanel:

import java.awt.BasicStroke;
import java.awt.Color;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.RenderingHints;

import javax.swing.JPanel;

public class AccountPanel extends JPanel{

 private static final long serialVersionUID = 1L;

 private Color normalc=Color.LIGHT_GRAY;
 private Color borderc=Color.LIGHT_GRAY;
 private boolean flag=false;

 public AccountPanel(){}

 public AccountPanel(Color normalc,Color borderc){
 this.normalc=normalc;
 this.borderc=borderc;
 }

 public void setBorder(boolean flag){
 this.flag=flag;
 }


 @Override
 public void paintComponent(Graphics g){

 super.paintComponent(g);

 Graphics2D g2=(Graphics2D) g;

 //设置绘图质量
 g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,RenderingHints.VALUE_ANTIALIAS_ON);

 //画一个顶部两个角为圆角，底部两个角为直角的矩形
 g2.setColor(Color.white);
 g2.fillRoundRect(0, 0, 190, 30, 10, 10);
 g2.fillRect(0, 10, 190, 17);

 //为该矩形添加边框
 if(flag){
  g2.setStroke(new BasicStroke(2.0f));
  g2.setColor(borderc);
  g2.drawArc(1, 1, 10, 10, 180, -90);//绘制圆弧
  g2.drawLine(5, 1, 185, 1);
  g2.drawArc(179, 1, 10, 10, 90, -90);//绘制圆弧
  g2.drawLine(1, 5, 1, 29);
  g2.drawLine(189, 5, 189, 29);
  g2.drawLine(1, 29, 190, 29);
 }
 else{
  g2.setStroke(new BasicStroke(1.0f));
  g2.setColor(normalc);
  g2.drawArc(0, 0, 10, 10, 180, -90);//绘制圆弧
  g2.drawLine(5, 0, 185, 0);
  g2.drawArc(179, 0, 10, 10, 90, -90);//绘制圆弧
  g2.drawLine(0, 5, 0, 30);
  g2.drawLine(189, 5, 189, 30);
  g2.drawLine(0, 30, 190, 30);
 }

 }

}

PasswordPanel:

import java.awt.BasicStroke;
import java.awt.Color;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.RenderingHints;

import javax.swing.JPanel;

public class PasswordPanel extends JPanel{

 private static final long serialVersionUID = 1L;

 private Color normalc=Color.LIGHT_GRAY;
 private Color borderc=Color.LIGHT_GRAY;
 private boolean flag=false;

 public PasswordPanel(){}

 public PasswordPanel(Color normalc,Color borderc){
 this.normalc=normalc;
 this.borderc=borderc;
 }

 public void setBorder(boolean flag){
 this.flag=flag;
 }

 @Override
 public void paintComponent(Graphics g){

 super.paintComponent(g);

 Graphics2D g2=(Graphics2D) g;

 //设置绘图质量
 g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,RenderingHints.VALUE_ANTIALIAS_ON);

 //画一个顶部两个角为圆角，底部两个角为直角的矩形
 g2.setColor(Color.white);
 g2.fillRoundRect(0, 0, 190, 30, 10, 10);
 g2.fillRect(0, 0, 190, 17);

 //为该矩形添加边框
 //为该矩形添加边框
 if(flag){
  g2.setStroke(new BasicStroke(2.0f));
  g2.setColor(borderc);
  g2.drawLine(1, 1, 1, 25);
  g2.drawLine(189, 1, 189, 25);
  g2.drawLine(1, 1, 190, 1);
  g2.drawArc(1, 18, 10, 10, 180, 90);//绘制圆弧
  g2.drawArc(179, 18, 10, 10, 270, 90);//绘制圆弧
  g2.drawLine(5, 29, 185, 29);
 }
 else{
  g2.setStroke(new BasicStroke(1.0f));
  g2.setColor(normalc);
  g2.drawLine(0, 0, 0, 25);
  g2.drawLine(189, 0, 189, 25);
  g2.drawLine(0, 0, 190, 0);
  g2.drawArc(0, 18, 10, 10, 180, 90);//绘制圆弧
  g2.drawArc(179, 18, 10, 10, 270, 90);//绘制圆弧
  g2.drawLine(5, 29, 185, 29);
 }

 }
}

下面的代码就是主窗体了

Demo1:

import java.awt.Color;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;

import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JPasswordField;
import javax.swing.JTextField;


public class Demo1 {

 public static void main(String[] args) {

 //初始化窗体
 JFrame frame=new JFrame("My QQ");
 frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
 frame.setSize(300, 200);
 frame.setLocationRelativeTo(null);
 frame.setLayout(null);

 //添加账号面板
 AccountPanel accountPanel=new AccountPanel(Color.LIGHT_GRAY,new Color(56,172,239));
 accountPanel.setLayout(null);
 accountPanel.setBounds(30, 15, 190, 30);
 frame.add( accountPanel);

 //在账号面板中添加文本框
 JTextField accountTF=new JTextField();
 accountTF.setBounds(7, 0, 153, 30);
 accountTF.setOpaque(false);
 accountTF.setBorder(null);
 accountPanel.add(accountTF);

 //在账号面板中的文本框后添加按钮
 JButton jb1=new JButton(new ImageIcon(
  Demo1.class.getClassLoader().getResource("res/images/btn1.png")));
 jb1.setBounds(160, 0, 30, 30);
 jb1.setBorder(null);//取消边框
 jb1.setBorderPainted(false);//不绘制按钮边框
 jb1.setContentAreaFilled(false);//设置按钮背景透明
 jb1.setFocusPainted(false);//设置按钮不绘制焦点状态
 accountPanel.add(jb1);


 //密码面板
 PasswordPanel passwordPanel=new PasswordPanel(Color.LIGHT_GRAY,new Color(56,172,239));
 passwordPanel.setLayout(null);
 passwordPanel.setBounds(30, 45, 190, 30);
 frame.add( passwordPanel);

 //输入密码文本框
 JPasswordField passwordPF=new JPasswordField();
 passwordPF.setBounds(7, 0, 153, 30);
 passwordPF.setOpaque(false);
 passwordPF.setBorder(null);
 passwordPanel.add(passwordPF);

 //在账号面板中的文本框后添加按钮
 JButton jb2=new JButton(new ImageIcon(
  Demo1.class.getClassLoader().getResource("res/images/btn2.png")));
 jb2.setBounds(160, 0, 30, 30);
 jb2.setBorder(null);
 jb2.setBorderPainted(false);
 jb2.setContentAreaFilled(false);
 jb2.setFocusPainted(false);
 passwordPanel.add(jb2);


 //为账号输入框添加鼠标监听器
 MouseAdapter accountListener=new MouseAdapter(){
  @Override
  public void mouseEntered(MouseEvent e) {
  // TODO Auto-generated method stub
  accountPanel.setBorder(true);
  accountPanel.updateUI();
  }

  @Override
  public void mouseExited(MouseEvent e) {
  // TODO Auto-generated method stub
  accountPanel.setBorder(false);
  accountPanel.updateUI();
  }
 };
 accountTF.addMouseListener(accountListener);
 jb1.addMouseListener(accountListener);


 //为密码输入框添加鼠标监听器
 MouseAdapter passwordListener=new MouseAdapter(){
  @Override
  public void mouseEntered(MouseEvent e) {
  // TODO Auto-generated method stub
  passwordPanel.setBorder(true);
  passwordPanel.updateUI();
  }

  @Override
  public void mouseExited(MouseEvent e) {
  // TODO Auto-generated method stub
  passwordPanel.setBorder(false);
  passwordPanel.updateUI();
  }
 };
 passwordPF.addMouseListener(passwordListener);
 jb2.addMouseListener(passwordListener);


 frame.setVisible(true);
 }

}

自此，仿QQ登录账号密码输入框就完成了。

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持脚本之家。
