iOS实现自定义起始时间选择器视图

所属分类：软件编程 / IOS 阅读数： 751

收藏 0赞 0分享

随着界面的整体效果的各种展现, 起始时间选择器的展现也需求突出!

最近项目中发现时间选择器使用处还挺多, 数了数原型图发现有6处. 便决定自定义时间选择器视图写个 Demo, 封装好在所需控制器里直接调用!

主要功能:

调起时间选择器, 传值(起始时间/截止时间), 两者时间均要合理, 不能超过未来时间, 并且起始时间不能大于截止时间. 点击取消或空白处收起时间选择器.

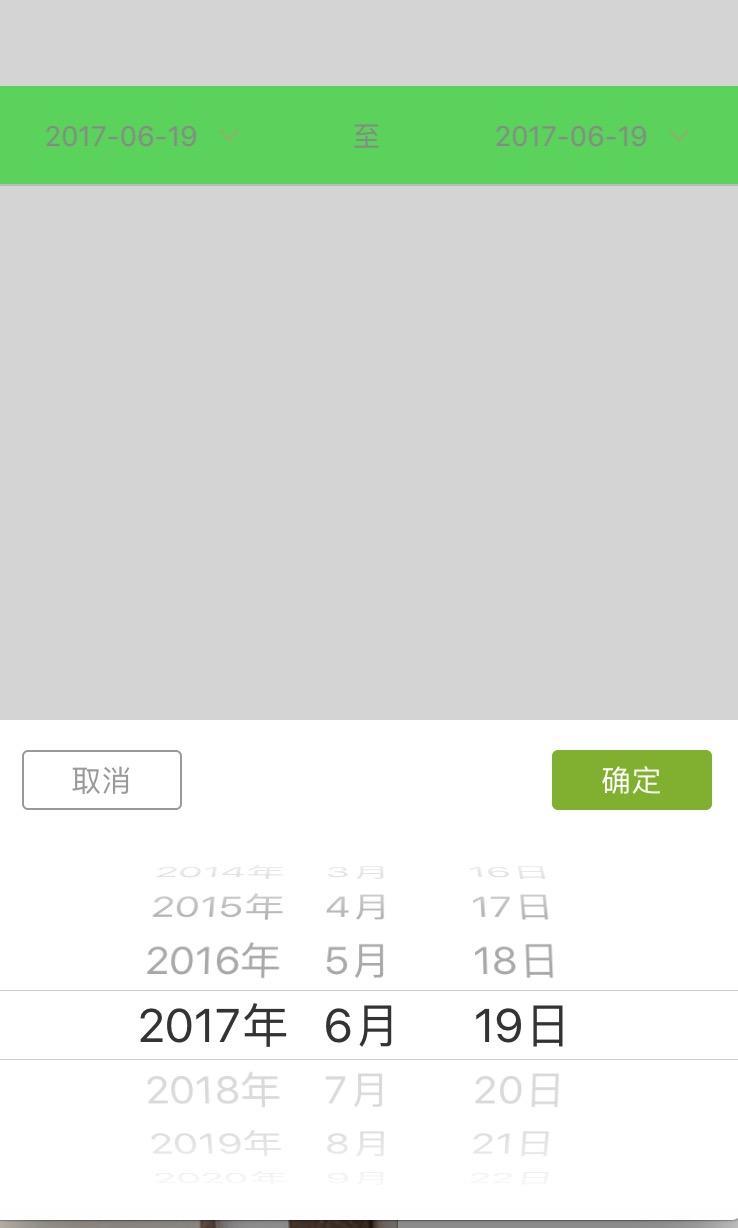

如果需要可以根据自己的需求来修改界面, 效果如下:

主要步骤:

创建时间选择器Picker 且确认取消按钮实现功能逻辑
创建展示时间菜单的按钮视图 (按钮: 图片在右,标题在左的按钮)
创建时间选择器视图且起始时间/截止时间逻辑判断
使用代理传值起始时间/截止时间(时间串转换)

第一步. 创建时间选择器Picker 且确认取消按钮实现功能逻辑

自定义ZLDatePickerView 文件:

@property (nonatomic, assign) id<ZLDatePickerViewDelegate> deleagte;
// 最初/小时间(一般为左边值)
@property (nonatomic, strong) NSDate *minimumDate;
// 截止时间(一般为右边值)
@property (nonatomic, strong) NSDate *maximumDate;
// 当前选择时间
@property (nonatomic, strong) NSDate *date;


+ (instancetype)datePickerView;

- (void)showFrom:(UIView *)view;

使用代理传值:

@protocol ZLDatePickerViewDelegate <NSObject>

- (void)datePickerView:(ZLDatePickerView *)pickerView backTimeString:(NSString *)string To:(UIView *)view;

@end

使用 xib 展现datePicker:

+ (instancetype)datePickerView {

  ZLDatePickerView *picker = [[NSBundle mainBundle] loadNibNamed:@"ZLDatePickerView" owner:nil options:nil].lastObject;
  picker.frame = CGRectMake(0, UI_View_Height - 250, UI_View_Width, 250);
  picker.maximumDate = [NSDate date];

  return picker;
}

- (void)showFrom:(UIView *)view {
  UIView *bgView = [[UIView alloc] initWithFrame:[[UIScreen mainScreen] bounds]];
  bgView.backgroundColor = [UIColor lightGrayColor];
  bgView.alpha = 0.5;

  UITapGestureRecognizer *tap = [[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(tap:)];
  [bgView addGestureRecognizer:tap];

  self.fromView = view;
  self.bgView = bgView;
  [[UIApplication sharedApplication].keyWindow addSubview:self.bgView];
  [[UIApplication sharedApplication].keyWindow addSubview:self];
}

起始时间/截止时间设值:

- (void)setMinimumDate:(NSDate *)minimumDate {
  self.datePicker.minimumDate = minimumDate;
}

- (void)setMaximumDate:(NSDate *)maximumDate {
  self.datePicker.maximumDate = maximumDate;
}

- (void)setDate:(NSDate *)date {
  self.datePicker.date = date;
}

确认/取消按钮实现功能逻辑:

- (IBAction)cancel:(id)sender {
  [self dismiss];
}

- (IBAction)makeSure:(id)sender {

  [self dismiss];

  NSDate *date = self.datePicker.date;

  if ([self.deleagte respondsToSelector:@selector(datePickerView:backTimeString:To:)]) {
    [self.deleagte datePickerView:self backTimeString:[self fomatterDate:date] To:self.fromView];
  }
}

第二步. 创建展示时间菜单的按钮视图 (按钮: 图片在右,标题在左的按钮)

这个可以根据需求来,有些不需要这个按钮图片在右边的,则没必要添加.

自定义ZLOppositeButton文件:

- (void)layoutSubviews {
  [super layoutSubviews];

  CGFloat margin = 10;

  // 替换 title 和 image 的位置
  // 图片在右,标题在左
  // 由于 button 内部的尺寸是自适应的.调整尺寸即可
  CGFloat maxWidth = self.width - self.imageView.width - margin;
  if (self.titleLabel.width >= maxWidth) {
    self.titleLabel.width = maxWidth;
  }

  CGFloat totalWidth = self.titleLabel.width + self.imageView.width;

  self.titleLabel.x = (self.width - totalWidth - margin) * 0.5;
  self.imageView.x = CGRectGetMaxX(self.titleLabel.frame) + margin;
}

接着利用上面的按钮创建一个展示时间菜单的按钮视图ZLTimeBtn文件:

- (void)setup {
  self.backgroundColor = [UIColor clearColor];
  [self setImage:[UIImage imageNamed:@"xiangxiadianji"] forState:UIControlStateNormal];
  [self setTitle:[self timeStringDefault] forState:UIControlStateNormal];
  [self setTitleColor:ZLColor(102, 102, 102) forState:UIControlStateNormal];
  self.titleLabel.font = [UIFont systemFontOfSize:14];
}

- (NSString *)timeStringDefault {
  NSDate *date = [NSDate date];
  return [date timeFormat:@"yyyy-MM-dd"];
}

其中我们上传时间一般都是字符串而不是时间戳, 则需要进行转换

#import "NSDate+ZLDateTimeStr.h"
- (NSString *)timeFormat:(NSString *)dateFormat {

  NSDateFormatter *formatter = [[NSDateFormatter alloc] init];
  [formatter setDateStyle:NSDateFormatterMediumStyle];
  [formatter setTimeStyle:NSDateFormatterShortStyle];
  [formatter setTimeZone:[NSTimeZone timeZoneWithAbbreviation:@"UTC"]];
  [formatter setDateFormat:dateFormat];

  return [formatter stringFromDate:self];
}

第三步. 创建时间选择器视图且起始时间/截止时间逻辑判断

利用第二步自定义的按钮来自定义ZLTimeView文件:

@property (nonatomic, weak) ZLTimeBtn *beginTimeBtn;
@property (nonatomic, weak) UILabel *label;
@property (nonatomic, weak) ZLTimeBtn *endTimeBtn;

- (void)layoutSubviews {
  [super layoutSubviews];

  self.beginTimeBtn.frame = CGRectMake(0, 0, self.width / 5.0 * 2, self.height);
  self.label.frame = CGRectMake(CGRectGetMaxX(self.beginTimeBtn.frame), 0, self.width / 5, self.height);
  self.endTimeBtn.frame = CGRectMake(CGRectGetMaxX(self.label.frame),0 , self.width / 5.0 * 2, self.height);
  self.line.frame = CGRectMake(0, self.height - 1, self.width, 1);
}

使用代理:

@protocol ZLTimeViewDelegate <NSObject>

/**
 * 时间选择器视图
 *
 * @param beginTime      起始时间/开始时间
 * @param endTime       终止时间按/结束时间
 *
 */
- (void)timeView:(ZLTimeView *)timeView seletedDateBegin:(NSString *)beginTime end:(NSString *)endTime;

@end

使用第一步创建的时间选择器Picker, 来进行起始时间/截止时间逻辑判断

#pragma mark - ZLDatePickerViewDelegate

- (void)beginTimeBtnClick:(UIButton *)btn {

  ZLDatePickerView *beginTimePV = [ZLDatePickerView datePickerView];
  beginTimePV.date = [NSDate stringChangeTimeFormat:@"yyyy-MM-dd" string:btn.titleLabel.text];
  if (self.maxDate) {
    beginTimePV.maximumDate = self.maxDate;
  }
  beginTimePV.deleagte = self;
  [beginTimePV showFrom:btn];
}

- (void)endTimeBtnClick:(UIButton *)btn {

  ZLDatePickerView *endTimePV = [ZLDatePickerView datePickerView];
  endTimePV.date = [NSDate stringChangeTimeFormat:@"yyyy-MM-dd" string:btn.titleLabel.text];
  if (self.minDate) {
    endTimePV.minimumDate = self.minDate;
  }

  endTimePV.deleagte = self;
  [endTimePV showFrom:btn];
}
- (void)datePickerView:(ZLDatePickerView *)pickerView backTimeString:(NSString *)string To:(UIView *)view {
  UIButton *btn = (UIButton *)view;
  if (btn == self.beginTimeBtn) {
    self.minDate = [NSDate stringChangeTimeFormat:@"yyyy-MM-dd" string:string];
  }
  if (btn == self.endTimeBtn) {
    self.maxDate = [NSDate stringChangeTimeFormat:@"yyyy-MM-dd" string:string];
  }

  [btn setTitle:string forState:UIControlStateNormal];

  if ([self.delegate respondsToSelector:@selector(timeView:seletedDateBegin:end:)]) {
    [self.delegate timeView:self seletedDateBegin:self.beginTimeBtn.titleLabel.text end:self.endTimeBtn.titleLabel.text];
  }
}

第四步. 使用代理传值起始时间/截止时间

在所需控制器里创建起始时间选择器控件

#import "ZLTimeView.h"

@property (nonatomic, copy) NSString *begintime;
@property (nonatomic, copy) NSString *endtime;

@property (nonatomic, weak) UIButton *beginTimeBtn;
@property (nonatomic, weak) UIButton *endTimeBtn;

@property (nonatomic, strong) ZLTimeView *timeView;

#pragma mark - 懒加载

- (ZLTimeView *)timeView {
  if (!_timeView) {
    ZLTimeView *timeView = [[ZLTimeView alloc] initWithFrame:CGRectMake(0, 100, UI_View_Width, 50)];
    timeView.backgroundColor = [UIColor greenColor];
    timeView.delegate = self;
    _timeView = timeView;
  }
  return _timeView;
}

  // 起始时间选择器控件
  [self.view addSubview:self.timeView];

使用代理:

<ZLTimeViewDelegate>

#pragma mark - ZLTimeViewDelegate

- (void)timeView:(ZLTimeView *)timeView seletedDateBegin:(NSString *)beginTime end:(NSString *)endTime {
  // TODO: 进行上传时间段
}

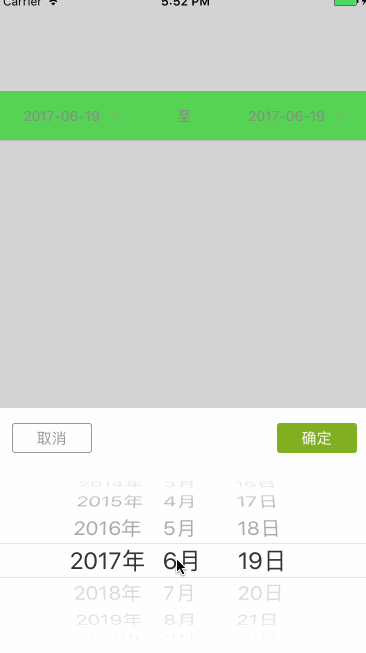

当多出使用时,用起来是不是很方便, 这时候测试看下效果:
