Android 仿微信的键盘切换（录音，表情，文字，其他），IM通讯，类似朋友圈只要涉及到文字等相关的app都会要涉及到键盘的处理，今天就给大家分享一下Android 仿微信的键盘切换。

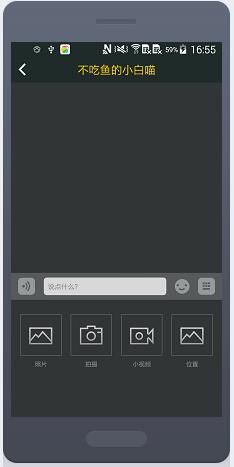

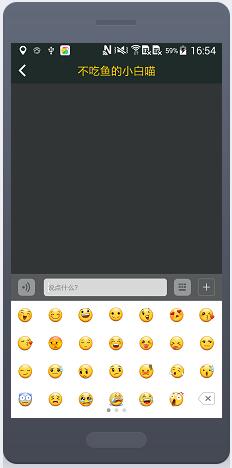

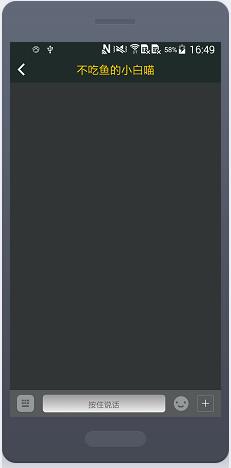

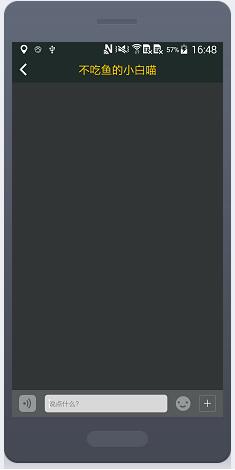

效果图如下：
Android 仿微信的键盘切换，实现了录音、表情、其他和软键盘显示之间的切换，其中解决了很多博客介绍的键盘切换时，软键盘显示切换到表情（其他）时，出现屏幕晃动的情况，以及点击和滑动键盘显示区域外时，软键盘隐藏的功能等，废话不多说直接上代码，以供大家参考：
xml:
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/linearlayout_main" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@color/M323535" android:fitsSystemWindows="true" android:orientation="vertical" tools:context=".ui.activity.ChatActivity"> <RelativeLayout android:id="@+id/layout_title" android:layout_width="match_parent" android:layout_height="@dimen/dp44" android:background="@color/title_bar" android:orientation="horizontal"> <ImageView android:id="@+id/img_finish" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerVertical="true" android:layout_marginLeft="@dimen/dp3" android:layout_marginStart="@dimen/dp3" android:background="@drawable/select_image_finsh" android:contentDescription="@null" /> <TextView android:id="@+id/txt_finish" android:layout_width="wrap_content" android:layout_height="match_parent" android:layout_gravity="center" android:layout_toEndOf="@+id/img_finish" android:layout_toRightOf="@+id/img_finish" android:gravity="center" android:text="@string/img_finish" android:textColor="@drawable/text_selector" android:textSize="18sp" /> <TextView android:id="@+id/txt_im_object_name" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_gravity="center" android:clickable="false" android:gravity="center" android:textColor="@color/MFFCE00" android:textSize="@dimen/sp20" /> </RelativeLayout> <RelativeLayout android:layout_width="match_parent" android:layout_height="match_parent" android:layout_above="@+id/keyboardListenRelativeLayout" android:layout_below="@+id/layout_title"> <ListView android:id="@+id/listView" android:layout_width="match_parent" android:layout_height="match_parent" android:divider="@null" /> <!--<com.motoband.ui.Voice.RecordButton--> <!--android:id="@+id/btn_record"--> <!--android:layout_width="match_parent"--> <!--android:layout_height="wrap_content"--> <!--android:layout_alignParentBottom="true"--> <!--android:layout_centerHorizontal="true"--> <!--/>--> <!--//语音--> <RelativeLayout android:id="@+id/layout_voice" android:layout_width="@dimen/dp200" android:layout_height="@dimen/dp200" android:layout_centerInParent="true" android:visibility="gone"> <ImageView android:layout_width="match_parent" android:layout_height="match_parent" android:background="@drawable/chat_window_backgroud" android:contentDescription="@null" /> <ImageView android:id="@+id/img_im_microphone_state" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerHorizontal="true" android:layout_marginTop="@dimen/dp16" android:background="@mipmap/im_microphone" android:contentDescription="@null" /> <ImageView android:id="@+id/img_im_microphone_sound_size" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_below="@+id/img_im_microphone_state" android:layout_centerHorizontal="true" android:layout_marginTop="@dimen/dp11" android:background="@mipmap/chat_volume_06" android:contentDescription="@null" /> <TextView android:id="@+id/txt_im_microphone_show_text" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_below="@+id/img_im_microphone_sound_size" android:layout_centerHorizontal="true" android:layout_marginTop="@dimen/dp26" android:contentDescription="@null" android:text="@string/slide_to_cancel_sending" android:textColor="@color/M3C3C3C" android:textSize="@dimen/sp16" /> </RelativeLayout> <!--<TextView--> <!--android:id="@+id/txt_start"--> <!--android:layout_width="match_parent"--> <!--android:layout_height="@dimen/dp44"--> <!--android:background="@color/M44C494"--> <!--android:text="播放语音"--> <!--/>--> </RelativeLayout> <com.motoband.ui.view.KeyboardListenRelativeLayout android:id="@+id/keyboardListenRelativeLayout" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_alignParentBottom="true"> <ScrollView android:layout_width="match_parent" android:layout_height="wrap_content" android:fillViewport="true"> <RelativeLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:orientation="vertical"> <!--发布评论--> <LinearLayout android:id="@+id/layout_release" android:layout_width="match_parent" android:layout_height="wrap_content" android:background="@color/M575A5B" android:orientation="horizontal" tools:ignore="UselessParent"> <ImageView android:id="@+id/img_voice" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center" android:layout_marginLeft="@dimen/dp12" android:layout_marginStart="@dimen/dp12" android:contentDescription="@null" /> <!--//文字 与录音--> <RelativeLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_weight="1"> <com.motoband.ui.view.MyEditText android:id="@+id/txt_im_message" android:layout_width="280dp" android:layout_height="@dimen/dp30" android:layout_gravity="center_vertical" android:layout_marginBottom="@dimen/dp8" android:layout_marginLeft="@dimen/dp15" android:layout_marginStart="@dimen/dp15" android:layout_marginTop="@dimen/dp8" android:background="@drawable/shape_d8d8d8" android:gravity="start|top" android:hint="@string/say_some" android:imeOptions="actionDone" android:inputType="textMultiLine" android:maxLines="6" android:paddingBottom="@dimen/dp7" android:paddingLeft="@dimen/dp7" android:paddingRight="@dimen/dp7" android:paddingTop="@dimen/dp7" android:singleLine="false" android:textColor="@color/M828282" android:textColorHint="@color/M828282" android:textCursorDrawable="@drawable/shape_cursor_color" android:textSize="@dimen/sp12" /> <TextView android:id="@+id/txt_record" android:layout_width="match_parent" android:layout_height="@dimen/dp30" android:layout_marginBottom="@dimen/dp8" android:layout_marginLeft="@dimen/dp15" android:layout_marginStart="@dimen/dp15" android:layout_marginTop="@dimen/dp8" android:background="@drawable/shape_im_chat_voice_up" android:gravity="center" android:paddingBottom="@dimen/dp7" android:paddingLeft="@dimen/dp7" android:paddingRight="@dimen/dp7" android:paddingTop="@dimen/dp7" android:text="@string/txt_record" android:visibility="gone" /> </RelativeLayout> <ImageView android:id="@+id/img_expression" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center" android:layout_marginLeft="@dimen/dp12" android:layout_marginStart="@dimen/dp12" android:contentDescription="@null" /> <ImageView android:id="@+id/img_other" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center" android:layout_marginEnd="@dimen/dp12" android:layout_marginLeft="@dimen/dp12" android:layout_marginRight="@dimen/dp12" android:layout_marginStart="@dimen/dp12" android:contentDescription="@null" /> </LinearLayout> <!--//表情--> <RelativeLayout android:id="@+id/layout_expression" android:layout_width="match_parent" android:layout_height="200dp" android:layout_below="@+id/layout_release" android:background="@color/MFFFFFF" android:visibility="gone"> <android.support.v4.view.ViewPager android:id="@+id/viewPager" android:layout_width="match_parent" android:layout_height="180dp" /> <LinearLayout android:id="@+id/viewGroup" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_alignParentBottom="true" android:layout_marginBottom="@dimen/dp10" android:background="@color/MFFFFFF" android:gravity="center_horizontal" android:orientation="horizontal" android:paddingLeft="@dimen/dp20" android:paddingRight="@dimen/dp20" /> </RelativeLayout> <!--//其他 照片 拍摄 小视频 位置--> <RelativeLayout android:id="@+id/layout_other" android:layout_width="match_parent" android:layout_height="200dp" android:layout_below="@+id/layout_release" android:background="@color/M323535" android:visibility="gone"> <LinearLayout android:id="@+id/layout_other_item" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginTop="@dimen/dp25" android:orientation="horizontal"> <ImageView android:id="@+id/im_chat_poto" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginLeft="@dimen/dp16" android:layout_marginStart="@dimen/dp16" android:background="@mipmap/im_chat_poto" android:contentDescription="@null" /> <ImageView android:id="@+id/im_chat_camera" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginLeft="@dimen/dp16" android:layout_marginStart="@dimen/dp16" android:background="@mipmap/im_chat_camera" android:contentDescription="@null" /> <ImageView android:id="@+id/im_chat_video" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginLeft="@dimen/dp16" android:layout_marginStart="@dimen/dp16" android:background="@mipmap/im_chat_video" android:contentDescription="@null" /> <ImageView android:id="@+id/im_chat_location" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginLeft="@dimen/dp16" android:layout_marginStart="@dimen/dp16" android:background="@mipmap/im_chat_poto" android:contentDescription="@null" /> </LinearLayout> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_below="@+id/layout_other_item" android:layout_marginEnd="@dimen/dp8" android:layout_marginLeft="@dimen/dp8" android:layout_marginRight="@dimen/dp8" android:layout_marginStart="@dimen/dp8" android:layout_marginTop="@dimen/dp7" android:orientation="horizontal"> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_gravity="center" android:layout_weight="1" android:gravity="center" android:text="@string/newtype_photo" android:textColor="@color/M969999" android:textSize="@dimen/sp11" /> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_gravity="center" android:layout_weight="1" android:gravity="center" android:text="@string/select_takephoto" android:textColor="@color/M969999" android:textSize="@dimen/sp11" /> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_gravity="center" android:layout_weight="1" android:gravity="center" android:text="@string/newtype_video" android:textColor="@color/M969999" android:textSize="@dimen/sp11" /> <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_gravity="center" android:layout_weight="1" android:gravity="center" android:text="@string/im_location" android:textColor="@color/M969999" android:textSize="@dimen/sp11" /> </LinearLayout> <!--<ImageView--> <!--android:id="@+id/img_bitmap"--> <!--android:layout_width="wrap_content"--> <!--android:layout_height="wrap_content" />--> </RelativeLayout> </RelativeLayout> </ScrollView> </com.motoband.ui.view.KeyboardListenRelativeLayout> <!--//存放当前位置照片--> <ScrollView android:id="@+id/scrollView_location_bitmap" android:layout_width="match_parent" android:layout_height="340dp" android:layout_marginTop="@dimen/dp800"> <LinearLayout android:layout_width="match_parent" android:layout_height="340dp" android:orientation="vertical" tools:ignore="ScrollViewSize"> <RelativeLayout android:layout_width="match_parent" android:layout_height="203dp"> <com.amap.api.maps.MapView android:id="@+id/map_location" android:layout_width="match_parent" android:layout_height="203dp" android:layout_gravity="center" /> <ImageView android:id="@+id/img_location_map" android:layout_width="match_parent" android:layout_height="203dp" android:layout_gravity="center" android:contentDescription="@null" android:scaleType="centerCrop" /> </RelativeLayout> </LinearLayout> </ScrollView> </RelativeLayout>
xml布局中用到了自定义KeyboardListenRelativeLayout(判断软键盘显示和隐藏的自定义控件)
package com.motoband.ui.view;
/**
* Created by admin on 2016/4/22.
*/
import android.content.Context;
import android.util.AttributeSet;
import android.widget.RelativeLayout;
/**
* @author madreain
*/
public class KeyboardListenRelativeLayout extends RelativeLayout {
private static final String TAG = KeyboardListenRelativeLayout.class.getSimpleName();
public static final byte KEYBOARD_STATE_SHOW = -3;
public static final byte KEYBOARD_STATE_HIDE = -2;
public static final byte KEYBOARD_STATE_INIT = -1;
private boolean mHasInit = false;
private boolean mHasKeyboard = false;
private int mHeight;
private IOnKeyboardStateChangedListener onKeyboardStateChangedListener;
public KeyboardListenRelativeLayout(Context context) {
super(context);
}
public KeyboardListenRelativeLayout(Context context, AttributeSet attrs) {
super(context, attrs);
}
public KeyboardListenRelativeLayout(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
}
public void setOnKeyboardStateChangedListener(IOnKeyboardStateChangedListener onKeyboardStateChangedListener) {
this.onKeyboardStateChangedListener = onKeyboardStateChangedListener;
}
@Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {
super.onLayout(changed, l, t, r, b);
if(!mHasInit) {
mHasInit = true;
mHeight = b;
if(onKeyboardStateChangedListener != null) {
onKeyboardStateChangedListener.onKeyboardStateChanged(KEYBOARD_STATE_INIT);
}
} else {
mHeight = mHeight < b ? b : mHeight;
}
if(mHasInit && mHeight > b) {
mHasKeyboard = true;
if(onKeyboardStateChangedListener != null) {
onKeyboardStateChangedListener.onKeyboardStateChanged(KEYBOARD_STATE_SHOW);
}
}
if(mHasInit && mHasKeyboard && mHeight == b) {
mHasKeyboard = false;
if(onKeyboardStateChangedListener != null) {
onKeyboardStateChangedListener.onKeyboardStateChanged(KEYBOARD_STATE_HIDE);
}
}
}
public interface IOnKeyboardStateChangedListener {
public void onKeyboardStateChanged(int state);
}
}
下面直接步入正题来介绍代码中实现的键盘切换：
package com.motoband.ui.activity;
import android.Manifest;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.app.AlertDialog;
import android.content.Context;
import android.content.Intent;
import android.content.pm.PackageManager;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.PixelFormat;
import android.location.Location;
import android.location.LocationListener;
import android.location.LocationManager;
import android.media.MediaPlayer;
import android.media.MediaRecorder;
import android.net.Uri;
import android.os.Environment;
import android.os.PowerManager;
import android.os.SystemClock;
import android.provider.MediaStore;
import android.support.v4.app.ActivityCompat;
import android.support.v4.content.ContextCompat;
import android.support.v4.view.PagerAdapter;
import android.support.v4.view.ViewPager;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.MotionEvent;
import android.view.View;
import android.view.ViewGroup;
import android.view.WindowManager;
import android.widget.AbsListView;
import android.widget.AdapterView;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.ListView;
import android.widget.RelativeLayout;
import android.widget.ScrollView;
import android.widget.TextView;
import android.widget.Toast;
import com.amap.api.location.AMapLocation;
import com.amap.api.location.AMapLocationClient;
import com.amap.api.location.AMapLocationClientOption;
import com.amap.api.location.AMapLocationListener;
import com.amap.api.maps.AMap;
import com.amap.api.maps.AMapOptions;
import com.amap.api.maps.CameraUpdateFactory;
import com.amap.api.maps.LocationSource;
import com.amap.api.maps.MapView;
import com.amap.api.maps.UiSettings;
import com.amap.api.maps.model.BitmapDescriptorFactory;
import com.amap.api.maps.model.CameraPosition;
import com.amap.api.maps.model.LatLng;
import com.amap.api.maps.model.MyLocationStyle;
import com.amap.api.services.core.LatLonPoint;
import com.amap.api.services.geocoder.GeocodeResult;
import com.amap.api.services.geocoder.GeocodeSearch;
import com.amap.api.services.geocoder.RegeocodeQuery;
import com.amap.api.services.geocoder.RegeocodeResult;
import com.motoband.R;
import com.motoband.core.manager.LoginManager;
import com.motoband.core.manager.MBUserManager;
import com.motoband.core.model.MBUserModel;
import com.motoband.core.utils.MBUtil;
import com.motoband.mbcamera.camera.CameraConstants;
import com.motoband.ui.Voice.AudioRecorder;
import com.motoband.ui.Voice.RecordButton;
import com.motoband.ui.manager.PixelOrdpManager;
import com.motoband.ui.manager.SoftKeyboardManager;
import com.motoband.ui.manager.StatusBarManager;
import com.motoband.ui.view.KeyboardListenRelativeLayout;
import com.motoband.ui.view.MyEditText;
import com.motoband.ui.view.MyGridView;
import com.motoband.widget.RoundImageView;
import com.squareup.picasso.Picasso;
import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;
import java.util.Locale;
public class ChatActivity extends AppCompatActivity implements LocationSource,AMapLocationListener,GeocodeSearch.OnGeocodeSearchListener {
private Intent intent;
private MBUserModel mbUserModel;
private MBUserModel meMBUserModel;
//聊天对象
private TextView txt_im_object_name;
private ListView listView;
// private ChatAdapter chatAdapter;
//信息内容
private MyEditText txt_im_message;
//键盘
//最外层判断软键盘是否弹出的
private KeyboardListenRelativeLayout keyboardListenRelativeLayout;
//语音
private ImageView img_voice;
//录音
private TextView txt_record;
private RelativeLayout layout_voice;
private ImageView img_im_microphone_state;
private ImageView img_im_microphone_sound_size;
private TextView txt_im_microphone_show_text;
//表情
private ImageView img_expression;
//其他 照片 拍摄 小视频 位置
private ImageView img_other;
//其他的显示
private RelativeLayout layout_other;
//照片
private ImageView im_chat_poto;
// 拍摄
private ImageView im_chat_camera;
//照片路径
private String picStringUrl;
// 小视频
private ImageView im_chat_video;
// 位置
private ImageView im_chat_location;
//位置的照片 //地图
private ScrollView scrollView_location_bitmap;
private MapView mapView;//骑行地图 TextureMapView
private AMap aMap;//骑行地图
private ImageView img_location_map;
//定位
private AMapLocationClient mLocationClient;
private LocationSource.OnLocationChangedListener mListener;
private LatLonPoint latLonPoint;
private GeocodeSearch geocodeSearch;
//获取的当前位置
private LocationManager locationManager;
private String locationProvider;
Location location;
//经纬度
private double latitude;
private double longitude;
//判断是点击的还是移动地图的 false 移动地图 true 点击
private boolean isFirst=false;
private boolean isShowMoveLocationCenter=true;
// 获取当前地图中心点的坐标
LatLng mTarget;
//地图中心点当前的具体位置
// private LatLng currentlatLng;
private String currentSpecificPosition;
// private ImageView img_bitmap;
//语音
private boolean isShowVoice = false;
//表情
private boolean isShowExpressionViewpager = false;
//其他
private boolean isShowOther = false;
private RelativeLayout layout_expression;
private ViewPager viewPager;
private ViewPagerAdapter viewPagerAdapter;
private List<View> viewsList;
/**
* 将小圆点的图片用数组表示
*/
private ImageView[] imageViews;
//包裹小圆点的LinearLayout
private LinearLayout viewPoints;
private ImageView imageView;
//第一组表情
private MyGridView myGridViewExpresionOne;
ArrayList<Integer> unicodeOne = new ArrayList<Integer>();
//第二组表情
private MyGridView myGridViewExpresionTwo;
ArrayList<Integer> unicodeTwo = new ArrayList<Integer>();
//第三组表情
private MyGridView myGridViewExpresionThere;
ArrayList<Integer> unicodeThere = new ArrayList<Integer>();
private GridAdapter gridAdapter;
//当前选择的是录音 表情 其他 并且显示 1 2 3
private int currentSelect = 0;
// RecordButton button;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_chat);
//在进入有VideoView界面的Activity时会出现闪黑屏的情况（如论视频是否播放）：
getWindow().setFormat(PixelFormat.TRANSLUCENT);
//状态栏颜色的设置
RelativeLayout linearLayout = (RelativeLayout) findViewById(R.id.linearlayout_main);
StatusBarManager.SetStatusBar(getWindow(), this, getResources(), "#1F2B29", linearLayout);
getWindow().setSoftInputMode(WindowManager.LayoutParams.SOFT_INPUT_STATE_HIDDEN);
initMap(savedInstanceState);
initView();
initData();
initListener();
// button = (RecordButton) findViewById(R.id.btn_record);
// button.setAudioRecord(new AudioRecorder());
// button.setRecordListener(new RecordButton.RecordListener() {
// @Override
// public void recordEnd(String filePath) {
//
//
// }
// });
}
private void initView() {
// img_bitmap= (ImageView) findViewById(R.id.img_bitmap);
listView = (ListView) findViewById(R.id.listView);
txt_im_object_name = (TextView) findViewById(R.id.txt_im_object_name);
//说点什么
txt_im_message = (MyEditText) findViewById(R.id.txt_im_message);
txt_im_message.setSelection(txt_im_message.getText().length());
//录音
txt_record = (TextView) findViewById(R.id.txt_record);
//录音显示的控件
initVoice();
// wakeLock = ((PowerManager) getSystemService(Context.POWER_SERVICE))
// .newWakeLock(PowerManager.SCREEN_DIM_WAKE_LOCK, "demo");
//键盘
initKeyboard();
}
//录音显示的控件
private void initVoice() {
layout_voice = (RelativeLayout) findViewById(R.id.layout_voice);
img_im_microphone_state = (ImageView) findViewById(R.id.img_im_microphone_state);
img_im_microphone_sound_size = (ImageView) findViewById(R.id.img_im_microphone_sound_size);
txt_im_microphone_show_text = (TextView) findViewById(R.id.txt_im_microphone_show_text);
}
private void initKeyboard() {
//输入框栏 用来判断软键盘是否弹出
keyboardListenRelativeLayout = (KeyboardListenRelativeLayout) findViewById(R.id.keyboardListenRelativeLayout);
layout_expression = (RelativeLayout) findViewById(R.id.layout_expression);
viewPager = (ViewPager) findViewById(R.id.viewPager);
viewPoints = (LinearLayout) findViewById(R.id.viewGroup);
img_voice = (ImageView) findViewById(R.id.img_voice);
img_expression = (ImageView) findViewById(R.id.img_expression);
img_other = (ImageView) findViewById(R.id.img_other);
layout_other = (RelativeLayout) findViewById(R.id.layout_other);
//照片
im_chat_poto = (ImageView) findViewById(R.id.im_chat_poto);
// 拍摄
im_chat_camera = (ImageView) findViewById(R.id.im_chat_camera);
// 小视频
im_chat_video = (ImageView) findViewById(R.id.im_chat_video);
// 位置
im_chat_location = (ImageView) findViewById(R.id.im_chat_location);
//宽度高度适配 6
WindowManager wm = ChatActivity.this.getWindowManager();
int width = wm.getDefaultDisplay().getWidth();
LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT);
layoutParams.width = (width - PixelOrdpManager.dip2px(getBaseContext(), 16 * 5)) / 4;
layoutParams.height = (width - PixelOrdpManager.dip2px(getBaseContext(), 16 * 5)) / 4;
layoutParams.leftMargin = PixelOrdpManager.dip2px(getBaseContext(), 16);
im_chat_poto.setLayoutParams(layoutParams);
im_chat_camera.setLayoutParams(layoutParams);
im_chat_video.setLayoutParams(layoutParams);
im_chat_location.setLayoutParams(layoutParams);
//加载表情的
initViewPager();
//显示录音图标
img_voice.setImageResource(R.mipmap.im_chat_voice);
//显示表情图标
img_expression.setImageResource(R.mipmap.emoji_bw);
//显示其他图标
img_other.setImageResource(R.mipmap.im_chat_add_normal);
}
private void initData() {
intent = getIntent();
if (intent.getSerializableExtra("mbUserModel") != null) {
mbUserModel = (MBUserModel) intent.getSerializableExtra("mbUserModel");
meMBUserModel= MBUserManager.getInstance().getMBUser(LoginManager.userid);
txt_im_object_name.setText(mbUserModel.getNickname());
// chatAdapter = new ChatAdapter();
// listView.setAdapter(chatAdapter);
}
}
private void initListener() {
//返回
findViewById(R.id.img_finish).setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
SoftKeyboardManager.HideSoftKeyboard(v);
finish();
}
});
//键盘的点击事件
initKeyboardListener();
// //播放语音
// findViewById(R.id.txt_start).setOnClickListener(new View.OnClickListener() {
// @Override
// public void onClick(View v) {
//
// mPlayer = new MediaPlayer();
// try{
// mPlayer.setDataSource(FileName);
// mPlayer.prepare();
// mPlayer.start();
// }catch(IOException e){
// Log.e("ChatActivity","播放失败");
// }
//
// }
// });
}
/**
* 检测Sdcard是否存在
*
* @return
*/
public static boolean isExitsSdcard() {
if (android.os.Environment.getExternalStorageState().equals(android.os.Environment.MEDIA_MOUNTED))
return true;
else
return false;
}
// private PowerManager.WakeLock wakeLock;
/**
* 按住说话listener
*/
//语音操作对象
private MediaPlayer mPlayer = null;
private MediaRecorder mRecorder = null;
//语音文件保存路径
private String FileName = null;
class PressToSpeakListen implements View.OnTouchListener {
@SuppressLint({"ClickableViewAccessibility", "Wakelock"})
@Override
public boolean onTouch(View v, MotionEvent event) {
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
//语音的显示
layout_voice.setVisibility(View.VISIBLE);
//语音按钮点下
txt_record.setText("松开结束");
txt_record.setBackgroundResource(R.drawable.shape_im_chat_voice_down);
if (!isExitsSdcard()) {
Toast.makeText(ChatActivity.this, "发送语音需要sdcard支持！",
Toast.LENGTH_SHORT).show();
return false;
}
// try {
// v.setPressed(true);
//// wakeLock.acquire();
//// if (VoicePlayClickListener.isPlaying)
//// VoicePlayClickListener.currentPlayListener
//// .stopPlayVoice();
//// recordingContainer.setVisibility(View.VISIBLE);
//// recordingHint
//// .setText(getString(R.string.move_up_to_cancel));
//// recordingHint.setBackgroundColor(Color.TRANSPARENT);
//// voiceRecorder.startRecording(null, toChatUsername,
//// getApplicationContext());
// } catch (Exception e) {
// e.printStackTrace();
// v.setPressed(false);
//// if (wakeLock.isHeld())
//// wakeLock.release();
//// if (voiceRecorder != null)
//// voiceRecorder.discardRecording();
//// recordingContainer.setVisibility(View.INVISIBLE);
//// Toast.makeText(ChatActivity.this, R.string.recoding_fail,
//// Toast.LENGTH_SHORT).show();
// return false;
// }
//设置sdcard的路径
FileName = Environment.getExternalStorageDirectory().getAbsolutePath();
FileName += "/audiorecordtest.3gp";
mRecorder = new MediaRecorder();
mRecorder.setAudioSource(MediaRecorder.AudioSource.MIC);
mRecorder.setOutputFormat(MediaRecorder.OutputFormat.THREE_GPP);
mRecorder.setOutputFile(FileName);
mRecorder.setAudioEncoder(MediaRecorder.AudioEncoder.AMR_NB);
try {
mRecorder.prepare();
} catch (IOException e) {
Log.e("ChatActivity", "prepare() failed");
}
mRecorder.start();
return true;
case MotionEvent.ACTION_MOVE: {
if (event.getY() < 0) {
txt_im_microphone_show_text.setText("松指取消发送");
// txt_record.setText("松开结束");
// txt_record.setBackgroundResource(R.drawable.shape_im_chat_voice_down);
} else {
txt_im_microphone_show_text.setText("上滑取消发送");
// txt_record.setText("按住说话");
// txt_record.setBackgroundResource(R.drawable.shape_im_chat_voice_up);
}
return true;
}
case MotionEvent.ACTION_UP:
//语音的显示
layout_voice.setVisibility(View.GONE);
//语音按钮点下
txt_record.setText("按住说话");
txt_record.setBackgroundResource(R.drawable.shape_im_chat_voice_up);
// v.setPressed(false);
//// recordingContainer.setVisibility(View.INVISIBLE);
//// if (wakeLock.isHeld())
//// wakeLock.release();
// if (event.getY() < 0) {
// // discard the recorded audio.
//// voiceRecorder.discardRecording();
//
// } else {
// // stop recording and send voice file
//// try {
//// int length = voiceRecorder.stopRecoding();
//// if (length > 0) {
//// sendVoice(voiceRecorder.getVoiceFilePath(),
//// voiceRecorder
//// .getVoiceFileName(toChatUsername),
//// Integer.toString(length), false);
//// } else if (length == EMError.INVALID_FILE) {
//// Toast.makeText(getApplicationContext(), "无录音权限",
//// Toast.LENGTH_SHORT).show();
//// } else {
//// Toast.makeText(getApplicationContext(), "录音时间太短",
//// Toast.LENGTH_SHORT).show();
//// }
//// } catch (Exception e) {
//// e.printStackTrace();
//// Toast.makeText(ChatActivity.this, "发送失败，请检测服务器是否连接",
//// Toast.LENGTH_SHORT).show();
//// }
//
// }
mRecorder.stop();
mRecorder.release();
mRecorder = null;
return true;
default:
// recordingContainer.setVisibility(View.INVISIBLE);
// if (voiceRecorder != null)
// voiceRecorder.discardRecording();
return false;
}
}
}
private void initKeyboardListener() {
//录音的点击
txt_record.setOnTouchListener(new PressToSpeakListen());
//照片
im_chat_poto.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Intent intent = new Intent();
intent.setType("image/*");
intent.setAction(Intent.ACTION_GET_CONTENT);
intent.addCategory(Intent.CATEGORY_OPENABLE);
startActivityForResult(intent, CameraConstants.REQUEST_PICK);
}
});
// 拍摄
im_chat_camera.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
if (!(ContextCompat.checkSelfPermission(getApplicationContext(), Manifest.permission.CAMERA) == PackageManager.PERMISSION_GRANTED)) {
ActivityCompat.requestPermissions(ChatActivity.this, new String[]{Manifest.permission.CAMERA}, REQUEST_CODE_CAMERA_PERMISSION);
} else {
startCamera();
}
}
});
// 小视频
im_chat_video.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
}
});
// 位置
im_chat_location.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
aMap.getMapScreenShot(new AMap.OnMapScreenShotListener() {
@Override
public void onMapScreenShot(Bitmap bitmap) {
img_location_map.setImageBitmap(bitmap);
SystemClock.sleep(100);
runOnUiThread(new Runnable() {
@Override
public void run() {
//照片
Bitmap bitmapFinish = getBitmapByView(scrollView_location_bitmap);
//照片路径
String filePath = savePic(bitmapFinish);
//经纬度 latitude; longitude;
//位置的描述 currentSpecificPosition
// img_bitmap.setImageBitmap(bitmapFinish);
Log.d("ChatActivity", filePath);
Log.d("ChatActivity", "latitude:" + latitude);
Log.d("ChatActivity", "longitude:" + longitude);
Log.d("ChatActivity", currentSpecificPosition);
// TODO: 2016/8/13 位置的信息
}
});
}
@Override
public void onMapScreenShot(Bitmap bitmap, int i) {
}
});
}
});
//键盘上边区域被点击键盘收回
listView.setOnTouchListener(new View.OnTouchListener() {
@Override
public boolean onTouch(View v, MotionEvent event) {
currentSelect = 0;
SoftKeyboardManager.HideSoftKeyboard(v);
//显示录音图标
img_voice.setImageResource(R.mipmap.im_chat_voice);
//显示表情图标
img_expression.setImageResource(R.mipmap.emoji_bw);
//显示其他图标
img_other.setImageResource(R.mipmap.im_chat_add_normal);
//表情 其他隐藏
layout_expression.setVisibility(View.GONE);
layout_other.setVisibility(View.GONE);
txt_im_message.setVisibility(View.VISIBLE);
txt_record.setVisibility(View.GONE);
return false;
}
});
listView.setOnScrollListener(new AbsListView.OnScrollListener() {
@Override
public void onScrollStateChanged(AbsListView view, int scrollState) {
currentSelect = 0;
SoftKeyboardManager.HideSoftKeyboard(view);
//显示录音图标
img_voice.setImageResource(R.mipmap.im_chat_voice);
//显示表情图标
img_expression.setImageResource(R.mipmap.emoji_bw);
//显示其他图标
img_other.setImageResource(R.mipmap.im_chat_add_normal);
//表情 其他隐藏
layout_expression.setVisibility(View.GONE);
layout_other.setVisibility(View.GONE);
txt_im_message.setVisibility(View.VISIBLE);
txt_record.setVisibility(View.GONE);
}
@Override
public void onScroll(AbsListView view, int firstVisibleItem, int visibleItemCount, int totalItemCount) {
}
});
//评论内容被点击时viewpager
txt_im_message.setOnTouchListener(new View.OnTouchListener() {
@Override
public boolean onTouch(View v, MotionEvent event) {
layout_expression.setVisibility(View.GONE);
isShowExpressionViewpager = false;
return false;
}
});
//录音
img_voice.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
if (isShowVoice == false) {
//显示键盘图标
img_voice.setImageResource(R.mipmap.im_chat_keyboard);
currentSelect = 1;
//显示录音
txt_record.setVisibility(View.VISIBLE);
//隐藏输入框
txt_im_message.setVisibility(View.GONE);
isShowVoice = true;
SoftKeyboardManager.HideSoftKeyboard(v);
} else if (isShowVoice == true) {
//显示录音图标
img_voice.setImageResource(R.mipmap.im_chat_voice);
currentSelect = 0;
//隐藏录音
txt_record.setVisibility(View.GONE);
//显示输入框
txt_im_message.setVisibility(View.VISIBLE);
isShowVoice = false;
SoftKeyboardManager.ShowSoftKeyboard(v, ChatActivity.this);
}
//隐藏表情
layout_expression.setVisibility(View.GONE);
// 隐藏其他
layout_other.setVisibility(View.GONE);
// //显示录音图标
// img_voice.setImageResource(R.mipmap.im_chat_voice);
//显示表情图标
img_expression.setImageResource(R.mipmap.emoji_bw);
//显示其他图标
img_other.setImageResource(R.mipmap.im_chat_add_normal);
}
});
//表情按钮
img_expression.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
//显示输入框
txt_im_message.setVisibility(View.VISIBLE);
if (isShowExpressionViewpager == true) {
//显示表情图标
img_expression.setImageResource(R.mipmap.emoji_bw);
currentSelect = 0;
//隐藏表情输入框
layout_expression.setVisibility(View.GONE);
isShowExpressionViewpager = false;
SoftKeyboardManager.ShowSoftKeyboard(v, ChatActivity.this);
} else {
//显示键盘图标
img_expression.setImageResource(R.mipmap.im_chat_keyboard);
currentSelect = 2;
//显示表情输入框
// layout_expression.setVisibility(View.VISIBLE);
new Thread(new Runnable() {
@Override
public void run() {
SystemClock.sleep(200);
runOnUiThread(new Runnable() {
@Override
public void run() {
layout_expression.setVisibility(View.VISIBLE);
}
});
}
}).start();
isShowExpressionViewpager = true;
SoftKeyboardManager.HideSoftKeyboard(v);
}
//隐藏录音
txt_record.setVisibility(View.GONE);
// 隐藏其他
layout_other.setVisibility(View.GONE);
//显示录音图标
img_voice.setImageResource(R.mipmap.im_chat_voice);
//显示表情图标
// img_expression.setImageResource(R.mipmap.emoji_bw);
//显示其他图标
img_other.setImageResource(R.mipmap.im_chat_add_normal);
}
});
//其他
img_other.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
//显示输入框
txt_im_message.setVisibility(View.VISIBLE);
if (isShowOther == false) {
//显示键盘图标
img_other.setImageResource(R.mipmap.im_chat_keyboard);
currentSelect = 3;
//显示其他
// layout_other.setVisibility(View.VISIBLE);
new Thread(new Runnable() {
@Override
public void run() {
SystemClock.sleep(200);
runOnUiThread(new Runnable() {
@Override
public void run() {
layout_other.setVisibility(View.VISIBLE);
}
});
}
}).start();
isShowOther = true;
SoftKeyboardManager.HideSoftKeyboard(v);
} else if (isShowOther == true) {
//显示其他图标
img_other.setImageResource(R.mipmap.im_chat_add_normal);
currentSelect = 0;
//隐藏其他
layout_other.setVisibility(View.GONE);
isShowOther = false;
SoftKeyboardManager.ShowSoftKeyboard(v, ChatActivity.this);
}
//隐藏录音
txt_record.setVisibility(View.GONE);
// 隐藏表情
layout_expression.setVisibility(View.GONE);
//显示录音图标
img_voice.setImageResource(R.mipmap.im_chat_voice);
//显示表情图标
img_expression.setImageResource(R.mipmap.emoji_bw);
//显示其他图标
// img_other.setImageResource(R.mipmap.im_chat_add_normal);
}
});
//判断软键盘显示隐藏
keyboardListenRelativeLayout.setOnKeyboardStateChangedListener(new KeyboardListenRelativeLayout.IOnKeyboardStateChangedListener() {
@Override
public void onKeyboardStateChanged(int state) {
switch (state) {
case KeyboardListenRelativeLayout.KEYBOARD_STATE_HIDE://软键盘隐藏
if (currentSelect == 0) {
//没有点击 录音 表情 其他
txt_im_message.setVisibility(View.VISIBLE);
txt_record.setVisibility(View.GONE);
layout_expression.setVisibility(View.GONE);
layout_other.setVisibility(View.GONE);
//语音
isShowVoice = false;
//表情
isShowExpressionViewpager = false;
//其他
isShowOther = false;
} else if (currentSelect == 1) {
//点击录音
txt_im_message.setVisibility(View.GONE);
txt_record.setVisibility(View.VISIBLE);
layout_expression.setVisibility(View.GONE);
layout_other.setVisibility(View.GONE);
//语音
isShowVoice = false;
//表情
isShowExpressionViewpager = false;
//其他
isShowOther = false;
} else if (currentSelect == 2) {
//点击表情
txt_im_message.setVisibility(View.VISIBLE);
txt_record.setVisibility(View.GONE);
layout_expression.setVisibility(View.VISIBLE);
layout_other.setVisibility(View.GONE);
//表情
isShowExpressionViewpager = true;
//语音
isShowVoice = false;
//其他
isShowOther = false;
} else if (currentSelect == 3) {
//点击其他
txt_im_message.setVisibility(View.VISIBLE);
txt_record.setVisibility(View.GONE);
layout_expression.setVisibility(View.GONE);
layout_other.setVisibility(View.VISIBLE);
//其他
isShowOther = true;
//语音
isShowVoice = false;
//表情
isShowExpressionViewpager = false;
}
break;
case KeyboardListenRelativeLayout.KEYBOARD_STATE_SHOW://软键盘显示
//隐藏录音
txt_record.setVisibility(View.GONE);
// 隐藏表情
layout_expression.setVisibility(View.GONE);
//隐藏其他
layout_other.setVisibility(View.GONE);
isShowExpressionViewpager = false;
isShowVoice = false;
isShowOther = false;
break;
default:
break;
}
}
});
listView.setOnScrollListener(new AbsListView.OnScrollListener() {
@Override
public void onScrollStateChanged(AbsListView view, int scrollState) {
switch (scrollState) {
// 当不滚动时
case AbsListView.OnScrollListener.SCROLL_STATE_IDLE:
case AbsListView.OnScrollListener.SCROLL_STATE_TOUCH_SCROLL:
case AbsListView.OnScrollListener.SCROLL_STATE_FLING:
SoftKeyboardManager.HideSoftKeyboard(view);
layout_expression.setVisibility(View.GONE);
isShowExpressionViewpager = false;
break;
}
}
@Override
public void onScroll(AbsListView view, int firstVisibleItem, int visibleItemCount, int totalItemCount) {
}
});
}
//聊天适配器
private class ChatAdapter extends BaseAdapter {
//类型
//聊天对象文字
private int TypeObjectCharacter = 0;
// 语音
private int TypeObjectVoice = 1;
// 照片
private int TypeObjectImg = 2;
// 位置
private int TypeObjectLocation = 3;
//自己文字
private int TypeMeCharacter = 4;
// 语音
private int TypeMeVoice = 5;
// 照片
private int TypeMeImg = 6;
// 位置
private int TypeMeLocation = 7;
@Override
public int getCount() {
return 100;
}
@Override
public Object getItem(int position) {
return null;
}
@Override
public long getItemId(int position) {
return 0;
}
@Override
public int getItemViewType(int position) {
// return super.getItemViewType(position);
if (position % 11 == 0) {
return TypeObjectCharacter;
} else if (position % 9 == 0) {
return TypeObjectVoice;
} else if (position % 8 == 0) {
return TypeObjectImg;
} else if (position % 7 == 0) {
return TypeObjectLocation;
} else if (position % 5 == 0) {
return TypeMeCharacter;
} else if (position % 3 == 0) {
return TypeMeVoice;
} else if (position % 2 == 0) {
return TypeMeImg;
} else {
return TypeMeLocation;
}
}
@Override
public int getViewTypeCount() {
return 8;
}
@Override
public View getView(int position, View convertView, ViewGroup parent) {
ObjectCharacterViewHolder objectCharacterViewHolder = null;
ObjectVoiceViewHolder objectVoiceViewHolder = null;
ObjectImgViewHolder objectImgViewHolder = null;
ObjectLocationViewHolder objectLocationViewHolder = null;
MeCharacterViewHolder meCharacterViewHolder = null;
MeVoiceViewHolder meVoiceViewHolder = null;
MeImgViewHolder meImgViewHolder = null;
MeLocationViewHolder meLocationViewHolder = null;
int Type = getItemViewType(position);
if (convertView == null) {
if (Type == TypeObjectCharacter) {
convertView = getLayoutInflater().inflate(R.layout.inflate_im_chat_object_character, parent, false);
objectCharacterViewHolder = new ObjectCharacterViewHolder();
objectCharacterViewHolder.txt_im_chat_time = (TextView) convertView.findViewById(R.id.txt_im_chat_time);
objectCharacterViewHolder.img_head_portrait = (RoundImageView) convertView.findViewById(R.id.img_head_portrait);
objectCharacterViewHolder.txt_im_chat_object_character = (TextView) convertView.findViewById(R.id.txt_im_chat_object_character);
convertView.setTag(objectCharacterViewHolder);
} else if (Type == TypeObjectVoice) {
convertView = getLayoutInflater().inflate(R.layout.inflate_im_chat_object_voice, parent, false);
objectVoiceViewHolder = new ObjectVoiceViewHolder();
objectVoiceViewHolder.txt_im_chat_time = (TextView) convertView.findViewById(R.id.txt_im_chat_time);
objectVoiceViewHolder.img_head_portrait = (RoundImageView) convertView.findViewById(R.id.img_head_portrait);
objectVoiceViewHolder.txt_im_chat_object_voice = (TextView) convertView.findViewById(R.id.txt_im_chat_object_voice);
objectVoiceViewHolder.img_im_chat_object_voice = (ImageView) convertView.findViewById(R.id.img_im_chat_object_voice);
objectVoiceViewHolder.txt_im_chat_object_voice_seconds = (TextView) convertView.findViewById(R.id.txt_im_chat_object_voice_seconds);
objectVoiceViewHolder.img_im_chat_object_voice_read_or_noread = (ImageView) convertView.findViewById(R.id.img_im_chat_object_voice_read_or_noread);
convertView.setTag(objectVoiceViewHolder);
} else if (Type == TypeObjectImg) {
convertView = getLayoutInflater().inflate(R.layout.inflate_im_chat_object_img, parent, false);
objectImgViewHolder = new ObjectImgViewHolder();
objectImgViewHolder.txt_im_chat_time = (TextView) convertView.findViewById(R.id.txt_im_chat_time);
objectImgViewHolder.img_head_portrait = (RoundImageView) convertView.findViewById(R.id.img_head_portrait);
objectImgViewHolder.img_im_chat_object_img = (ImageView) convertView.findViewById(R.id.img_im_chat_object_img);
convertView.setTag(objectImgViewHolder);
} else if (Type == TypeObjectLocation) {
convertView = getLayoutInflater().inflate(R.layout.inflate_im_chat_object_location, parent, false);
objectLocationViewHolder = new ObjectLocationViewHolder();
objectLocationViewHolder.txt_im_chat_time = (TextView) convertView.findViewById(R.id.txt_im_chat_time);
objectLocationViewHolder.img_head_portrait = (RoundImageView) convertView.findViewById(R.id.img_head_portrait);
objectLocationViewHolder.img_im_chat_object_location = (ImageView) convertView.findViewById(R.id.img_im_chat_object_location);
convertView.setTag(objectLocationViewHolder);
} else if (Type == TypeMeCharacter) {
convertView = getLayoutInflater().inflate(R.layout.inflate_im_chat_me_character, parent, false);
meCharacterViewHolder = new MeCharacterViewHolder();
meCharacterViewHolder.txt_im_chat_time = (TextView) convertView.findViewById(R.id.txt_im_chat_time);
meCharacterViewHolder.img_head_portrait = (RoundImageView) convertView.findViewById(R.id.img_head_portrait);
meCharacterViewHolder.txt_im_chat_me_character = (TextView) convertView.findViewById(R.id.txt_im_chat_me_character);
convertView.setTag(meCharacterViewHolder);
} else if (Type == TypeMeVoice) {
convertView = getLayoutInflater().inflate(R.layout.inflate_im_chat_me_voice, parent, false);
meVoiceViewHolder = new MeVoiceViewHolder();
meVoiceViewHolder.txt_im_chat_time = (TextView) convertView.findViewById(R.id.txt_im_chat_time);
meVoiceViewHolder.img_head_portrait = (RoundImageView) convertView.findViewById(R.id.img_head_portrait);
meVoiceViewHolder.txt_im_chat_me_voice = (TextView) convertView.findViewById(R.id.txt_im_chat_me_voice);
meVoiceViewHolder.img_im_chat_me_voice = (ImageView) convertView.findViewById(R.id.img_im_chat_me_voice);
meVoiceViewHolder.txt_im_chat_me_voice_seconds = (TextView) convertView.findViewById(R.id.txt_im_chat_me_voice_seconds);
meVoiceViewHolder.img_im_chat_me_voice_read_or_noread = (ImageView) convertView.findViewById(R.id.img_im_chat_me_voice_read_or_noread);
convertView.setTag(meVoiceViewHolder);
} else if (Type == TypeMeImg) {
convertView = getLayoutInflater().inflate(R.layout.inflate_im_chat_me_img, parent, false);
meImgViewHolder = new MeImgViewHolder();
meImgViewHolder.txt_im_chat_time = (TextView) convertView.findViewById(R.id.txt_im_chat_time);
meImgViewHolder.img_head_portrait = (RoundImageView) convertView.findViewById(R.id.img_head_portrait);
meImgViewHolder.img_im_chat_me_img = (ImageView) convertView.findViewById(R.id.img_im_chat_me_img);
convertView.setTag(meImgViewHolder);
} else if (Type == TypeMeLocation) {
convertView = getLayoutInflater().inflate(R.layout.inflate_im_chat_me_location, parent, false);
meLocationViewHolder = new MeLocationViewHolder();
meLocationViewHolder.txt_im_chat_time = (TextView) convertView.findViewById(R.id.txt_im_chat_time);
meLocationViewHolder.img_head_portrait = (RoundImageView) convertView.findViewById(R.id.img_head_portrait);
meLocationViewHolder.img_im_chat_me_location = (ImageView) convertView.findViewById(R.id.img_im_chat_me_location);
convertView.setTag(meLocationViewHolder);
}
} else {
if (Type == TypeObjectCharacter) {
objectCharacterViewHolder = (ObjectCharacterViewHolder) convertView.getTag();
} else if (Type == TypeObjectVoice) {
objectVoiceViewHolder = (ObjectVoiceViewHolder) convertView.getTag();
} else if (Type == TypeObjectImg) {
objectImgViewHolder = (ObjectImgViewHolder) convertView.getTag();
} else if (Type == TypeObjectLocation) {
objectLocationViewHolder = (ObjectLocationViewHolder) convertView.getTag();
} else if (Type == TypeMeCharacter) {
meCharacterViewHolder = (MeCharacterViewHolder) convertView.getTag();
} else if (Type == TypeMeVoice) {
meVoiceViewHolder = (MeVoiceViewHolder) convertView.getTag();
} else if (Type == TypeMeImg) {
meImgViewHolder = (MeImgViewHolder) convertView.getTag();
} else if (Type == TypeMeLocation) {
meLocationViewHolder = (MeLocationViewHolder) convertView.getTag();
}
}
//设置数据
if (Type == TypeObjectCharacter) {
setObjectCharacterData(objectCharacterViewHolder);
} else if (Type == TypeObjectVoice) {
setObjectVoiceData(objectVoiceViewHolder);
} else if (Type == TypeObjectImg) {
setObjectImgData(objectImgViewHolder);
} else if (Type == TypeObjectLocation) {
setObjectLocationData(objectLocationViewHolder);
} else if (Type == TypeMeCharacter) {
setMeCharacterData(meCharacterViewHolder);
} else if (Type == TypeMeVoice) {
setMeVoiceData(meVoiceViewHolder);
} else if (Type == TypeMeImg) {
setMeImgData(meImgViewHolder);
} else if (Type == TypeMeLocation) {
setMeLocationData(meLocationViewHolder);
}
return convertView;
}
//设置对象文字
private void setObjectCharacterData(ObjectCharacterViewHolder objectCharacterViewHolder) {
objectCharacterViewHolder.txt_im_chat_time.setText("2013111");
Picasso.with(ChatActivity.this).load(mbUserModel.getHeadurl() + "!thumb").into(objectCharacterViewHolder.img_head_portrait);
objectCharacterViewHolder.txt_im_chat_object_character.setText("哈哈哈老客户卡哈斯的发生哈哈镜和司法斯蒂芬回来好伐啦开始的发生");
}
//设置对象语音
private void setObjectVoiceData(ObjectVoiceViewHolder objectVoiceViewHolder) {
objectVoiceViewHolder.txt_im_chat_time.setText("2013111");
Picasso.with(ChatActivity.this).load(mbUserModel.getHeadurl() + "!thumb").into(objectVoiceViewHolder.img_head_portrait);
}
//设置对象的照片
private void setObjectImgData(ObjectImgViewHolder objectImgViewHolder) {
objectImgViewHolder.txt_im_chat_time.setText("32123132");
Picasso.with(ChatActivity.this).load(mbUserModel.getHeadurl() + "!thumb").into(objectImgViewHolder.img_head_portrait);
}
//设置对象位置的
private void setObjectLocationData(ObjectLocationViewHolder objectLocationViewHolder) {
objectLocationViewHolder.txt_im_chat_time.setText("32123132");
Picasso.with(ChatActivity.this).load(mbUserModel.getHeadurl() + "!thumb").into(objectLocationViewHolder.img_head_portrait);
}
//设置自己的文字
private void setMeCharacterData(MeCharacterViewHolder meCharacterViewHolder) {
meCharacterViewHolder.txt_im_chat_time.setText("465654564");
Picasso.with(ChatActivity.this).load(meMBUserModel.getHeadurl() + "!thumb").into(meCharacterViewHolder.img_head_portrait);
meCharacterViewHolder.txt_im_chat_me_character.setText("离开家电费卡坚实的法律会计师");
}
//设置自己的语音
private void setMeVoiceData(MeVoiceViewHolder meVoiceViewHolder) {
meVoiceViewHolder.txt_im_chat_time.setText("465654564");
Picasso.with(ChatActivity.this).load(meMBUserModel.getHeadurl() + "!thumb").into(meVoiceViewHolder.img_head_portrait);
// meVoiceViewHolder.img_im_chat_me_voice
}
//设置自己的照片
private void setMeImgData(MeImgViewHolder meImgViewHolder) {
meImgViewHolder.txt_im_chat_time.setText("32123132");
Picasso.with(ChatActivity.this).load(meMBUserModel.getHeadurl() + "!thumb").into(meImgViewHolder.img_head_portrait);
// meImgViewHolder.img_im_chat_me_img
}
//设置自己的位置
private void setMeLocationData(MeLocationViewHolder meLocationViewHolder) {
meLocationViewHolder.txt_im_chat_time.setText("51321321");
Picasso.with(ChatActivity.this).load(meMBUserModel.getHeadurl() + "!thumb").into(meLocationViewHolder.img_head_portrait);
// meLocationViewHolder.img_im_chat_me_location
}
//聊天对象文字
private class ObjectCharacterViewHolder {
private TextView txt_im_chat_time;
private RoundImageView img_head_portrait;
private TextView txt_im_chat_object_character;
}
// 语音
private class ObjectVoiceViewHolder {
private TextView txt_im_chat_time;
private RoundImageView img_head_portrait;
private TextView txt_im_chat_object_voice;
private ImageView img_im_chat_object_voice;
private TextView txt_im_chat_object_voice_seconds;
private ImageView img_im_chat_object_voice_read_or_noread;
}
// 照片
private class ObjectImgViewHolder {
private TextView txt_im_chat_time;
private RoundImageView img_head_portrait;
private ImageView img_im_chat_object_img;
}
// 位置
private class ObjectLocationViewHolder {
private TextView txt_im_chat_time;
private RoundImageView img_head_portrait;
private ImageView img_im_chat_object_location;
}
//自己文字
private class MeCharacterViewHolder {
private TextView txt_im_chat_time;
private RoundImageView img_head_portrait;
private TextView txt_im_chat_me_character;
}
// 语音
private class MeVoiceViewHolder {
private TextView txt_im_chat_time;
private RoundImageView img_head_portrait;
private TextView txt_im_chat_me_voice;
private ImageView img_im_chat_me_voice;
private TextView txt_im_chat_me_voice_seconds;
private ImageView img_im_chat_me_voice_read_or_noread;
}
// 照片
private class MeImgViewHolder {
private TextView txt_im_chat_time;
private RoundImageView img_head_portrait;
private ImageView img_im_chat_me_img;
}
// 位置
private class MeLocationViewHolder {
private TextView txt_im_chat_time;
private RoundImageView img_head_portrait;
private ImageView img_im_chat_me_location;
}
}
private void initViewPager() {
viewsList = new ArrayList<View>();
View view1 = LayoutInflater.from(this).inflate(R.layout.inflate_expression_one, null);
View view2 = LayoutInflater.from(this).inflate(R.layout.inflate_expression_two, null);
View view3 = LayoutInflater.from(this).inflate(R.layout.inflate_expression_there, null);
viewsList.add(view1);
viewsList.add(view2);
viewsList.add(view3);
//添加小圆点的图片
imageViews = new ImageView[viewsList.size()];
for (int i = 0; i < viewsList.size(); i++) {
imageView = new ImageView(this);
//设置小圆点imageview的参数
LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(20, 20);
layoutParams.setMargins(10, 0, 10, 0);
// imageView.setLayoutParams(new ViewGroup.LayoutParams(20,20));//创建一个宽高均为20 的布局
imageView.setLayoutParams(layoutParams);//创建一个宽高均为20 的布局
imageView.setPadding(20, 0, 20, 0);
//默认选中的是第一张图片，此时第一个小圆点是选中状态，其他不是
if (i == 0) {
imageView.setBackgroundResource(R.drawable.shape_expression_click);
} else {
imageView.setBackgroundResource(R.drawable.shape_expression_unclick);
}
//将imageviews添加到小圆点视图组
viewPoints.addView(imageView);
imageViews[i] = imageView;
}
viewPagerAdapter = new ViewPagerAdapter(viewsList);
viewPager.setAdapter(viewPagerAdapter);
viewPager.setOnPageChangeListener(new GuidePageChangeListener());
//设置第一组表情
initGridViewExpresionOne(view1);
//设置第二组表情
initGridViewExpresionTwo(view2);
//设置第三组表情
initGridViewExpresionThere(view3);
}
private String getEmojiStringByUnicode(int unicode) {
return new String(Character.toChars(unicode));
}
//键盘
private void initGridViewExpresionOne(View view) {
myGridViewExpresionOne = (MyGridView) view.findViewById(R.id.gridview_expression);
gridAdapter = new GridAdapter(ChatActivity.this);
unicodeOne.add(0, 0x1F604);
unicodeOne.add(1, 0x1F60A);
unicodeOne.add(2, 0x1F603);
unicodeOne.add(3, 0x263A);
unicodeOne.add(4, 0x1F609);
unicodeOne.add(5, 0x1F60D);
unicodeOne.add(6, 0x1F618);
unicodeOne.add(7, 0x1F61A);
unicodeOne.add(8, 0x1F633);
unicodeOne.add(9, 0x1F60C);
unicodeOne.add(10, 0x1F601);
unicodeOne.add(11, 0x1F61C);
unicodeOne.add(12, 0x1F61D);
unicodeOne.add(13, 0x1F612);
unicodeOne.add(14, 0x1F60F);
unicodeOne.add(15, 0x1F613);
unicodeOne.add(16, 0x1F614);
unicodeOne.add(17, 0x1F61E);
unicodeOne.add(18, 0x1F616);
unicodeOne.add(19, 0x1F625);
unicodeOne.add(20, 0x1F630);
unicodeOne.add(21, 0x1F628);
unicodeOne.add(22, 0x1F623);
unicodeOne.add(23, 0x1F622);
unicodeOne.add(24, 0x1F62D);
unicodeOne.add(25, 0x1F602);
unicodeOne.add(26, 0x1F632);
unicodeOne.add(27, 0x1F631);
myGridViewExpresionOne.setAdapter(gridAdapter);
gridAdapter.setDataToAdapter(unicodeOne);
gridAdapter.notifyDataSetChanged();
//点击选择是那一项
myGridViewExpresionOne.setOnItemClickListener(new AdapterView.OnItemClickListener() {
@Override
public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
if (position == 27) {
// Toast.makeText(DynamicDetailActivity.this, "删除" + position, Toast.LENGTH_SHORT).show();
if (txt_im_message.getText().toString().length() > 0) {
if (txt_im_message.getText().toString().length() == 1) {
String commentString = txt_im_message.getText().toString().substring(0,
txt_im_message.getText().toString().length() - 1);
txt_im_message.setText(commentString);
} else {
int lastIndex = txt_im_message.getText().toString().lastIndexOf("�");
if (lastIndex == -1) {
//判断当前的是不是表情
String commentString = txt_im_message.getText().toString().substring(0,
txt_im_message.getText().toString().length() - 2);
txt_im_message.setText(commentString);
} else {
//判断当前的是不是表情
String commentString = txt_im_message.getText().toString().substring(0,
txt_im_message.getText().toString().length() - 1);
txt_im_message.setText(commentString);
}
}
}
} else {
int unicodeJoy = unicodeOne.get(position);
String emojiString = getEmojiStringByUnicode(unicodeJoy);
txt_im_message.setText(txt_im_message.getText().toString().trim() + emojiString);
}
txt_im_message.setSelection(txt_im_message.getText().length());
}
});
}
private void initGridViewExpresionTwo(View view) {
myGridViewExpresionTwo = (MyGridView) view.findViewById(R.id.gridview_expression);
gridAdapter = new GridAdapter(ChatActivity.this);
unicodeTwo.add(0, 0x1F631);
unicodeTwo.add(1, 0x1F620);
unicodeTwo.add(2, 0x1F621);
unicodeTwo.add(3, 0x1F62A);
unicodeTwo.add(4, 0x1F637);
unicodeTwo.add(5, 0x1F47F);
unicodeTwo.add(6, 0x1F47D);
unicodeTwo.add(7, 0x1F49B);
unicodeTwo.add(8, 0x1F499);
unicodeTwo.add(9, 0x1F49C);
unicodeTwo.add(10, 0x1F497);
unicodeTwo.add(11, 0x1F49A);
unicodeTwo.add(12, 0x2764);
unicodeTwo.add(13, 0x1F494);
unicodeTwo.add(14, 0x1F493);
unicodeTwo.add(15, 0x1F498);
unicodeTwo.add(16, 0x2728);
unicodeTwo.add(17, 0x2B50);
unicodeTwo.add(18, 0x1F31F);
unicodeTwo.add(19, 0x1F4A2);
unicodeTwo.add(20, 0x2757);
unicodeTwo.add(21, 0x2755);
unicodeTwo.add(22, 0x2753);
unicodeTwo.add(23, 0x2754);
unicodeTwo.add(24, 0x1F4A4);
unicodeTwo.add(25, 0x1F4A8);
unicodeTwo.add(26, 0x1F4A6);
unicodeTwo.add(27, 0x1F631);
myGridViewExpresionTwo.setAdapter(gridAdapter);
gridAdapter.setDataToAdapter(unicodeTwo);
gridAdapter.notifyDataSetChanged();
//点击选择是那一项
myGridViewExpresionTwo.setOnItemClickListener(new AdapterView.OnItemClickListener() {
@Override
public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
if (position == 27) {
if (txt_im_message.getText().toString().length() > 0) {
if (txt_im_message.getText().toString().length() == 1) {
String commentString = txt_im_message.getText().toString().substring(0,
txt_im_message.getText().toString().length() - 1);
txt_im_message.setText(commentString);
} else {
int lastIndex = txt_im_message.getText().toString().lastIndexOf("�");
if (lastIndex == -1) {
//判断当前的是不是表情
String commentString = txt_im_message.getText().toString().substring(0,
txt_im_message.getText().toString().length() - 2);
txt_im_message.setText(commentString);
} else {
//判断当前的是不是表情
String commentString = txt_im_message.getText().toString().substring(0,
txt_im_message.getText().toString().length() - 1);
txt_im_message.setText(commentString);
}
}
}
} else {
int unicodeJoy = unicodeTwo.get(position);
String emojiString = getEmojiStringByUnicode(unicodeJoy);
txt_im_message.setText(txt_im_message.getText().toString().trim() + emojiString);
}
txt_im_message.setSelection(txt_im_message.getText().length());
}
});
}
private void initGridViewExpresionThere(View view) {
myGridViewExpresionThere = (MyGridView) view.findViewById(R.id.gridview_expression);
gridAdapter = new GridAdapter(ChatActivity.this);
unicodeThere.add(0, 0x1F3B6);
unicodeThere.add(1, 0x1F3B5);
unicodeThere.add(2, 0x1F525);
unicodeThere.add(3, 0x1F4A9);
unicodeThere.add(4, 0x1F44D);
unicodeThere.add(5, 0x1F44E);
unicodeThere.add(6, 0x1F44C);
unicodeThere.add(7, 0x1F44A);
unicodeThere.add(8, 0x270A);
unicodeThere.add(9, 0x270C);
unicodeThere.add(10, 0x1F44B);
unicodeThere.add(11, 0x270B);
unicodeThere.add(12, 0x1F450);
unicodeThere.add(13, 0x1F446);
unicodeThere.add(14, 0x1F447);
unicodeThere.add(15, 0x1F449);
unicodeThere.add(16, 0x1F448);
unicodeThere.add(17, 0x1F64C);
unicodeThere.add(18, 0x1F64F);
unicodeThere.add(19, 0x261D);
unicodeThere.add(20, 0x1F44F);
unicodeTh
