最近项目需求是实现高亮功能引导页的效果，查了很多资料Android确实没有类似iOS的抠图的现成控件，就自己写一个，具体如下：

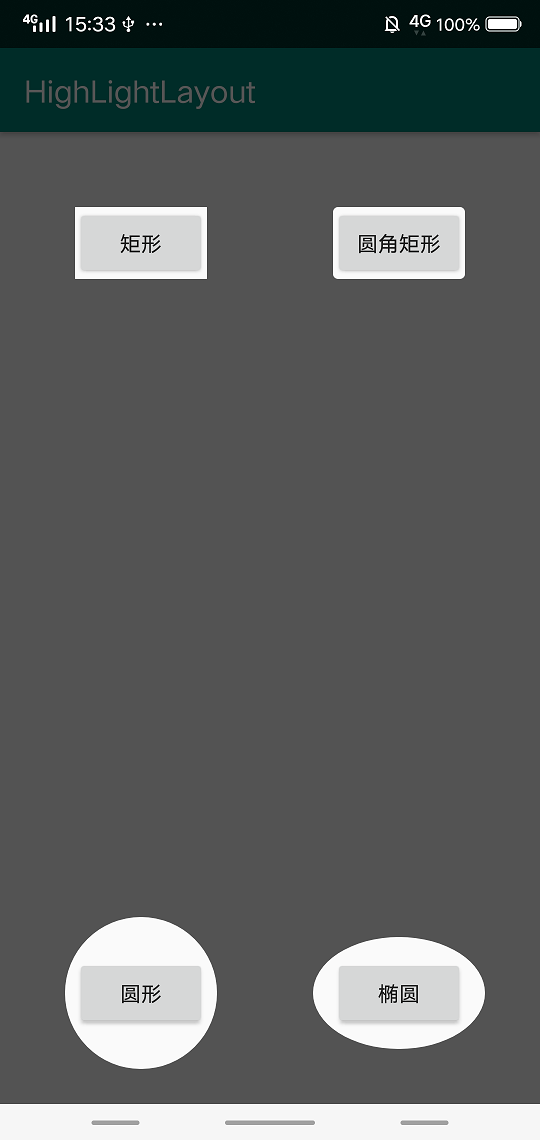

Demo
代码
public class HighLightLayout extends FrameLayout {
private Paint mPaint;
private Path mPath = new Path();
private List<RectRegion> mRegions;
public HighLightLayout(@NonNull Context context, @Nullable AttributeSet attrs) {
super(context, attrs);
mPaint = new Paint();
mPaint.setAntiAlias(true);
mPaint.setColor(0xAA000000);
setWillNotDraw(false);
}
@Override
protected void onDraw(Canvas canvas) {
mPath.reset();
mPath.addRect(0, 0, getWidth(), getHeight(), Path.Direction.CCW);
for (RectRegion region : mRegions) {
RectF rectF = region.rectF;
if (region instanceof RoundRectRegion) {
RoundRectRegion roundRectRegion = (RoundRectRegion) region;
mPath.addRoundRect(rectF, roundRectRegion.rx, roundRectRegion.ry, Path.Direction.CW);
} else if (region instanceof CircleRegion) {
CircleRegion circleRegion = (CircleRegion) region;
float cX = (rectF.right + rectF.left) / 2;
float cY = (rectF.bottom + rectF.top) / 2;
mPath.addCircle(cX, cY, circleRegion.radius, Path.Direction.CW);
} else if (region instanceof OvalRegion) {
mPath.addOval(rectF, Path.Direction.CW);
} else {
mPath.addRect(rectF, Path.Direction.CW);
}
}
canvas.drawPath(mPath, mPaint);
}
public void setRegion(@NonNull RectRegion region) {
if (mRegions == null) {
mRegions = new ArrayList<>();
} else {
mRegions.clear();
}
mRegions.add(region);
invalidate();
}
public void setRegions(@NonNull List<RectRegion> regions) {
mRegions = regions;
invalidate();
}
@Override
public void setBackgroundColor(int color) {
mPaint.setColor(color);
}
}
HighLightLayout继承自FrameLayout，重写了 onDraw 方法来实现高亮区域的绘制； setRegion 设置一个高亮区域， setRegions 设置多个高亮区域；重写 setBackgroundColor 来实现设置高亮背景色。
Region表示了一个高亮矩形区域，支持4种高亮类型，
RectRegion 矩形高亮区域
public class RectRegion implements Parcelable {
public RectF rectF;
//... Parcelable实现代码
}
RoundRectRegion 圆角矩形高亮区域
public class RoundRectRegion extends RectRegion {
public float rx, ry;
//... Parcelable实现代码
}
CircleRegion 圆形高亮区域
public class CircleRegion extends RectRegion {
public float radius;
//... Parcelable实现代码
}
OvalRegion 椭圆高亮区域
public class OvalRegion extends RectRegion {
//... Parcelable实现代码
}
使用
创建一个GuideActivity，该Activity根布局是一个HighLightLayout，可以在HighLightLayout中添加任何控件
<wangyi.blog.app.view.HighLightLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/highLightLayout" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".GuideActivity"> </wangyi.blog.app.view.HighLightLayout>
启动GuideActivity 并传递需要高亮显示的区域
ArrayList<RectRegion> regions = new ArrayList<>();
//矩形高亮
RectF rectF1 = LocationUtils.getViewLocation(mButton1);
RectRegion region1 = new RectRegion(rectF1);
regions.add(region1);
//圆角矩形高亮
RectF rectF2 = LocationUtils.getViewLocation(mButton2);
RoundRectRegion region2 = new RoundRectRegion(rectF2, 10, 10);
regions.add(region2);
//圆形高亮
RectF rectF3 = LocationUtils.getViewLocation(mButton3);
float radius = (rectF3.right - rectF3.left) / 2 + 20;
CircleRegion region3 = new CircleRegion(rectF3, radius);
regions.add(region3);
//椭圆高亮
RectF rectF4 = LocationUtils.getViewLocation(mButton4);
LocationUtils.expandRectF(rectF4, 40);
OvalRegion region4 = new OvalRegion(rectF4);
regions.add(region4);
Intent intent = new Intent(this, GuideActivity.class);
intent.putExtra(GuideActivity.EXTRA_REGION_LIST, regions);
startActivity(intent);
GuideActivity的onCreate中设置高亮区域
ArrayList<RectRegion> regions = getIntent().getParcelableArrayListExtra(EXTRA_REGION_LIST);
HighLightLayout highLightLayout = findViewById(R.id.highLightLayout);
highLightLayout.setRegions(regions);
