Android xmlns 的作用及其自定义实例详解

所属分类: 软件编程 / Android 阅读数: 25
收藏 0 赞 0 分享

 Android xmlns 的作用及其自定义实例详解

 xmlns:Android="http://schemas.android.com/apk/res/android的作用是:

这个是xml的命名空间,有了他,你就可以alt+/作为提示,提示你输入什么,不该输入什么,什么是对的,什么是错的,也可以理解为语法文件。或者语法判断器什么的

这个主要作用是在运行的时候那些控件的属性都是通过它来识别的,如果上面你写错了,不会有任何问题,但是在运行的时候就会有问题,提示你没有指定宽度等什么。这个是不用联网的。

Android 自定义的xmlns其实很简单,语法规则是:

在使用到自定义View的xml布局文件中需要加入xmlns:前缀=http://schemas.android.com/apk/res/你的应用程序包路径.

下面是一个简单的例子:

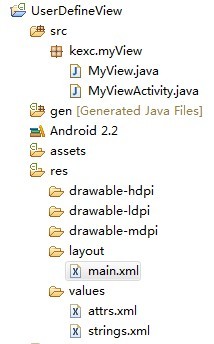

结构图:

MyView.java

package kexc.myView;

import android.content.Context;
import android.content.res.TypedArray;
import android.util.AttributeSet;
import android.widget.TextView;
public class MyView extends TextView {
 private String mString = "Welcome to Kesion's blog";

 public MyView(Context context, AttributeSet attrs) {
 super(context, attrs);
 TypedArray a = context.obtainStyledAttributes(attrs,
    R.styleable.MyView);
 int textColor = a.getColor(R.styleable.MyView_textColor,
    0XFFFFFFFF);
  float textSize = a.getDimension(R.styleable.MyView_textSize, 36);
  mString = a.getString(R.styleable.MyView_title);
 setText(mString);
 setTextSize(textSize);
 setTextColor(textColor);
 }
}

 main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
 xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:test="http://schemas.android.com/apk/res/kexc.myView"
 android:orientation="vertical"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent">
 <TextView
  android:layout_width="fill_parent"
  android:layout_height="wrap_content"
  android:text="@string/hello"
  />
 <kexc.myView.MyView
  android:layout_width="fill_parent"
  android:layout_height="fill_parent"
  test:title="wo shi text"
  test:textSize="20px"
  test:textColor="#fff"
 />
</LinearLayout>

 属性文件 value/attrs.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
 <declare-styleable name="MyView">
  <attr name="textColor" format="color"/>
 <attr name="textSize" format="dimension" />
 <attr name="title" format="string"/>
 </declare-styleable>
</resources>

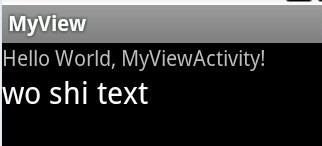

运行结果:

感谢阅读,希望能帮助到大家,谢谢大家对本站的支持!
