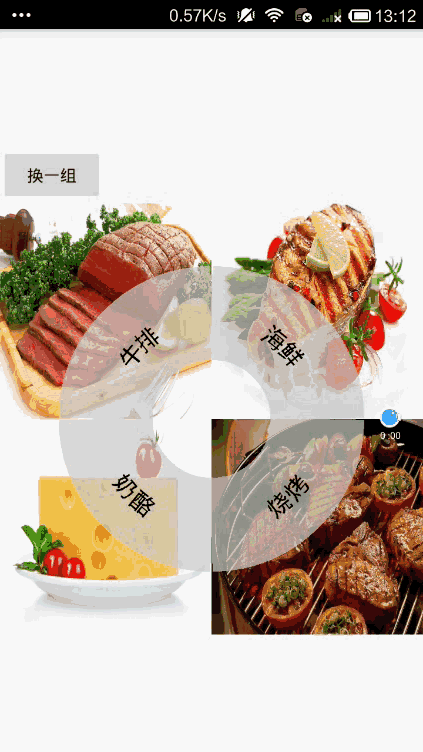

这几天因为项目需求，需要在ImageView上面叠加一层透明圆弧，并且在沿着圆弧的方向显示相应的文字，效果如下图所示：
拿到这个需求，首先想到的是自定义一个ImageView来实现此功能，即在onDraw()中绘制圆弧和文字。同时因为要保证圆弧的位置可以任意摆放，圆弧的颜色、透明度以及文字大小、颜色等都是可控的，所以增加了一些自定义属性。实现代码非常简单，如下：
1.自定义ImageView：
package com.chunk.customviewsdemo.views.ArcImageView;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.RectF;
import android.util.AttributeSet;
import android.widget.ImageView;
import com.chunk.customviewsdemo.R;
/**
* Description:A custom ImageView with circular arc and text
* Author: XiaoYu
* Date: // :
*/
public class ArcImageView extends ImageView {
/**
* The default text size.
*/
private final float DEFAULT_TEXT_SIZE = ;
/**
* The default scale value which decides the width of arc.
*/
private final float DEFAULT_SCALE = .f;
/**
* The default transparency of arc.
*/
private final int DEFAULT_ARC_ALPHA =;
/**
* The default width of arc.
*/
private final int DEFAULT_ARC_WIDTH =;
/**
* The default angle that the arc starts with.
*/
private final int DEFAULT_START_ANGLE = ;
/**
* The default angle that the arc.
*/
private final int DEFAULT_SWEEP_ANGLE = ;
/**
* The default distance along the path to add to the text's starting position.
*/
private final int DEFAULT_H_OFFSET = ;
/**
* The default distance above(-) or below(+) the path to position the text.
*/
private final int DEFAULT_V_OFFSET = ;
private Context mContext;
/**
* The text displayed on ImageView along arc.
*/
private String mDrawStr;
/**
* The font size of text.
*/
private float mTextSize = DEFAULT_TEXT_SIZE;
/**
* The scale value which decides the width of arc.
*/
private float mScale = DEFAULT_SCALE;
/**
* The transparency of arc.
*/
private int mArcAlpha = DEFAULT_ARC_ALPHA;
/**
* The width of arc.
*/
private int mArcWidth = DEFAULT_ARC_WIDTH;
/**
* The start angle of angle.
*/
private int mStartAngle = DEFAULT_START_ANGLE;
/**
* The swept angle of angle.
*/
private int mSweepAngle = DEFAULT_SWEEP_ANGLE;
/**
* The default distance along the path to add to the text's starting position.
*/
private float mHOffset = DEFAULT_H_OFFSET;
/**
* The default distance above(-) or below(+) the path to position the text.
*/
private float mVOffset = DEFAULT_V_OFFSET;
/**
* The style of arc, all styles includes LEFT_TOP, LEFT_BOTTOM, RIGHT_TOP, RIGHT_BOTTOM, CENTER。
* of course, you can add your own style according to your demands.
*/
private int mDrawStyle;
/**
* The color of arc.
*/
private int mArcColor;
/**
* The color of text.
*/
private int mTextColor;
public ArcImageView(Context context) {
super(context);
this.mContext = context;
}
public ArcImageView(Context context, AttributeSet attrs) {
super(context, attrs);
this.mContext = context;
obtainAttributes(attrs);
}
public ArcImageView(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
this.mContext = context;
obtainAttributes(attrs);
}
/**
* Set the text that will be drawn on arc.
* @param drawStr the text content.
*/
public void setDrawStr(String drawStr) {
this.mDrawStr = drawStr;
//refresh this view
invalidate();
}
/**
* Set the transparency of arc.
* @param mArcAlpha the value of transparency.
*/
public void setArcAlpha(int mArcAlpha) {
this.mArcAlpha = mArcAlpha;
//refresh this view
invalidate();
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
//draw arc
Paint arcPaint = new Paint();
arcPaint.setStrokeWidth(mArcWidth);
arcPaint.setStyle(Paint.Style.STROKE);
arcPaint.setColor(mArcColor);
arcPaint.setAlpha(mArcAlpha);
int width = getWidth();
int height = getHeight();
float radius;
if (width > height) {
radius = mScale * height;
} else {
radius = mScale * width;
}
RectF oval = new RectF();
int center_x = width;
int center_y = height;
switch (mDrawStyle) {
case :
center_x = ;
center_y = ;
mStartAngle = ;
mSweepAngle = -;
break;
case :
center_x = ;
center_y = height;
mStartAngle = ;
mSweepAngle = ;
break;
case :
center_x = width;
center_y = ;
mStartAngle = ;
mSweepAngle = -;
break;
case :
center_x = width;
center_y = height;
mStartAngle = ;
mSweepAngle = ;
break;
case :
center_x = width / ;
center_y = height / ;
mStartAngle = ;
mSweepAngle = ;
break;
}
float left = center_x - radius;
float top = center_y - radius;
float right = center_x + radius;
float bottom = center_y + radius;
oval.set(left, top, right, bottom);
canvas.drawArc(oval, mStartAngle, mSweepAngle, false, arcPaint);
//draw text
Paint textPaint = new Paint();
textPaint.setTextSize(mTextSize);
textPaint.setStyle(Paint.Style.FILL);
textPaint.setColor(mTextColor);
Path path = new Path();
path.addArc(oval, mStartAngle, mSweepAngle);
canvas.drawTextOnPath(mDrawStr, path, mHOffset, mVOffset, textPaint);
}
/**
* Obtain custom attributes that been defined in attrs.xml.
* @param attrs A collection of attributes.
*/
private void obtainAttributes(AttributeSet attrs) {
TypedArray ta = mContext.obtainStyledAttributes(attrs, R.styleable.ArcImageView);
mDrawStr = ta.getString(R.styleable.ArcImageView_drawStr);
mTextSize = ta.getDimension(R.styleable.ArcImageView_textSize, DEFAULT_TEXT_SIZE);
mArcAlpha = ta.getInteger(R.styleable.ArcImageView_arcAlpha, DEFAULT_ARC_ALPHA);
mArcWidth = ta.getInteger(R.styleable.ArcImageView_arcWidth, DEFAULT_ARC_WIDTH);
mStartAngle = ta.getInteger(R.styleable.ArcImageView_startAngle, DEFAULT_START_ANGLE);
mSweepAngle = ta.getInteger(R.styleable.ArcImageView_startAngle, DEFAULT_SWEEP_ANGLE);
mHOffset = ta.getInteger(R.styleable.ArcImageView_hOffset, DEFAULT_H_OFFSET);
mVOffset = ta.getInteger(R.styleable.ArcImageView_vOffset, DEFAULT_V_OFFSET);
mArcColor = ta.getColor(R.styleable.ArcImageView_arcColor, XCCCCCC);
mTextColor = ta.getColor(R.styleable.ArcImageView_textColor, XFFFFFF);
mDrawStyle = ta.getInt(R.styleable.ArcImageView_drawStyle, );
ta.recycle();
}
}
2.在values文件夹下的attrs.xml中自定义属性：
<?xml version="." encoding="utf-"?> <resources> <declare-styleable name="ArcImageView"> <attr name="drawStr" format="string" /> <attr name="textSize" format="dimension" /> <attr name="arcAlpha" format="integer" /> <attr name="arcWidth" format="integer" /> <attr name="startAngle" format="integer" /> <attr name="sweepAngle" format="integer" /> <attr name="scale" format="float" /> <attr name="hOffset" format="float" /> <attr name="vOffset" format="float" /> <attr name="drawStyle" format="enum"> <enum name="LEFT_TOP" value="" /> <enum name="LEFT_BOTTOM" value="" /> <enum name="RIGHT_TOP" value="" /> <enum name="RIGHT_BOTTOM" value="" /> <enum name="CENTER" value="" /> </attr> <attr name="arcColor" format="color" /> <attr name="textColor" format="color" /> </declare-styleable> </resources>
3.在MainActivity调用ArcImageView，实现代码如下：
package com.chunk.customviewsdemo;
import android.os.Bundle;
import android.support.v.app.AppCompatActivity;
import android.view.View;
import android.widget.Button;
import com.chunk.customviewsdemo.views.ArcImageView.ArcImageView;
public class MainActivity extends AppCompatActivity implements View.OnClickListener {
private ArcImageView aiv_one;
private ArcImageView aiv_two;
private ArcImageView aiv_three;
private ArcImageView aiv_four;
private Button btn_another_one;
private int mGroup = ;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
aiv_one = (ArcImageView) findViewById(R.id.aiv_one);
aiv_one.setArcAlpha();
aiv_two = (ArcImageView) findViewById(R.id.aiv_two);
aiv_two.setArcAlpha();
aiv_three = (ArcImageView) findViewById(R.id.aiv_three);
aiv_three.setArcAlpha();
aiv_four = (ArcImageView) findViewById(R.id.aiv_four);
aiv_four.setArcAlpha();
btn_another_one = (Button) findViewById(R.id.btn_another_one);
btn_another_one.setOnClickListener(this);
}
@Override
public void onClick(View v) {
switch (v.getId()) {
case R.id.btn_another_one:
if (mGroup == ) {
aiv_one.setDrawStr("苹果");
aiv_one.setBackgroundResource(R.drawable.apple);
aiv_two.setDrawStr("柚子");
aiv_two.setBackgroundResource(R.drawable.pineapple);
aiv_three.setDrawStr("香蕉");
aiv_three.setBackgroundResource(R.drawable.banana);
aiv_four.setDrawStr("菠萝");
aiv_four.setBackgroundResource(R.drawable.pineapple);
mGroup = ;
} else {
aiv_one.setDrawStr("牛排");
aiv_one.setBackgroundResource(R.drawable.steak);
aiv_two.setDrawStr("海鲜");
aiv_two.setBackgroundResource(R.drawable.seafood);
aiv_three.setDrawStr("奶酪");
aiv_three.setBackgroundResource(R.drawable.cheese);
aiv_four.setDrawStr("烧烤");
aiv_four.setBackgroundResource(R.drawable.barbecue);
mGroup = ;
}
break;
}
}
}
4.MainActivity的布局文件如下：
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:custom="http://schemas.android.com/apk/res-auto" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_marginTop="dp" android:layout_marginBottom="dp" android:orientation="vertical" > <Button android:id="@+id/btn_another_one" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="换一组" /> <LinearLayout android:layout_width="match_parent" android:layout_height="dp" android:layout_weight="" android:orientation="horizontal" > <RelativeLayout android:layout_width="dp" android:layout_weight="" android:layout_height="match_parent" > <com.chunk.customviewsdemo.views.ArcImageView.ArcImageView android:id="@+id/aiv_one" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@drawable/steak" custom:drawStyle="RIGHT_BOTTOM" custom:drawStr="牛排" custom:arcAlpha="" custom:arcColor="@color/gray" custom:textColor="@color/black" custom:textSize="sp" /> </RelativeLayout> <RelativeLayout android:layout_width="dp" android:layout_weight="" android:layout_height="match_parent" > <com.chunk.customviewsdemo.views.ArcImageView.ArcImageView android:id="@+id/aiv_two" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@drawable/seafood" custom:drawStyle="LEFT_BOTTOM" custom:drawStr="海鲜" custom:arcAlpha="" custom:arcColor="@color/gray" custom:textColor="@color/black" custom:textSize="sp" /> </RelativeLayout> </LinearLayout> <LinearLayout android:layout_width="match_parent" android:layout_height="dp" android:layout_weight="" android:orientation="horizontal" > <RelativeLayout android:layout_width="dp" android:layout_weight="" android:layout_height="match_parent" > <com.chunk.customviewsdemo.views.ArcImageView.ArcImageView android:id="@+id/aiv_three" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@drawable/cheese" custom:drawStyle="RIGHT_TOP" custom:drawStr="奶酪" custom:arcAlpha="" custom:arcColor="@color/gray" custom:textColor="@color/black" custom:textSize="sp" /> </RelativeLayout> <RelativeLayout android:layout_width="dp" android:layout_weight="" android:layout_height="match_parent" > <com.chunk.customviewsdemo.views.ArcImageView.ArcImageView android:id="@+id/aiv_four" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@drawable/barbecue" custom:drawStyle="LEFT_TOP" custom:drawStr="烧烤" custom:arcAlpha="" custom:arcColor="@color/gray" custom:textColor="@color/black" custom:textSize="sp" /> </RelativeLayout> </LinearLayout> </LinearLayout>
注意，在布局文件中引入自定义属性时需要加入一行代码：xmlns:custom="http://schemas.android.com/apk/res-auto"。

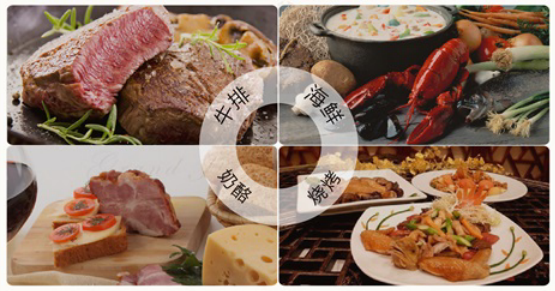

好了，需求搞定，剩下的就是搬到实际的项目当中去了。实现效果如下：
总结一下，自定义View一般就是通过重写onDraw、onMeasure()、onLayout()等方法来进行测量、绘制，绘制的时候一般会用到Canvas、Paint、Bitmap等类，测量和绘制的过程其实就是对现实生活中绘图工作的抽象和实现，我们利用面向对象的思想将画板、画纸、画笔等工具以及绘画的动作用一行行代码加以描述就OK啦！
由于实现过程比较简单，我就不贴源码了，大家如果对2D绘图还不是很了解，可以去搜一下相关资料或查阅相关书籍！
