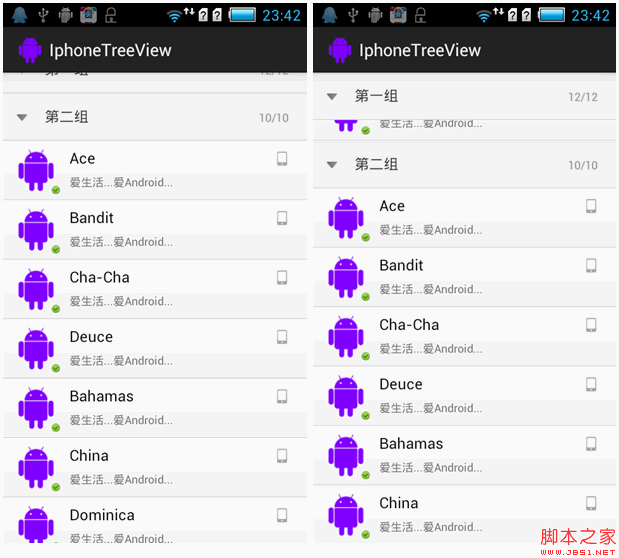

Android之IphoneTreeView带组指示器的ExpandableListView效果

public class IphoneTreeView extends ExpandableListView implements
OnScrollListener, OnGroupClickListener {
public IphoneTreeView(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
registerListener();
}
public IphoneTreeView(Context context, AttributeSet attrs) {
super(context, attrs);
registerListener();
}
public IphoneTreeView(Context context) {
super(context);
registerListener();
}
/**
* Adapter 接口 . 列表必须实现此接口 .
*/
public interface IphoneTreeHeaderAdapter {
public static final int PINNED_HEADER_GONE = 0;
public static final int PINNED_HEADER_VISIBLE = 1;
public static final int PINNED_HEADER_PUSHED_UP = 2;
/**
* 获取 Header 的状态
*
* @param groupPosition
* @param childPosition
* @return
* PINNED_HEADER_GONE,PINNED_HEADER_VISIBLE,PINNED_HEADER_PUSHED_UP
* 其中之一
*/
int getTreeHeaderState(int groupPosition, int childPosition);
/**
* 配置 QQHeader, 让 QQHeader 知道显示的内容
*
* @param header
* @param groupPosition
* @param childPosition
* @param alpha
*/
void configureTreeHeader(View header, int groupPosition,
int childPosition, int alpha);
/**
* 设置组按下的状态
*
* @param groupPosition
* @param status
*/
void onHeadViewClick(int groupPosition, int status);
/**
* 获取组按下的状态
*
* @param groupPosition
* @return
*/
int getHeadViewClickStatus(int groupPosition);
}
private static final int MAX_ALPHA = 255;
private IphoneTreeHeaderAdapter mAdapter;
/**
* 用于在列表头显示的 View,mHeaderViewVisible 为 true 才可见
*/
private View mHeaderView;
/**
* 列表头是否可见
*/
private boolean mHeaderViewVisible;
private int mHeaderViewWidth;
private int mHeaderViewHeight;
public void setHeaderView(View view) {
mHeaderView = view;
AbsListView.LayoutParams lp = new AbsListView.LayoutParams(
ViewGroup.LayoutParams.MATCH_PARENT,
ViewGroup.LayoutParams.WRAP_CONTENT);
view.setLayoutParams(lp);
if (mHeaderView != null) {
setFadingEdgeLength(0);
}
requestLayout();
}
private void registerListener() {
setOnScrollListener(this);
setOnGroupClickListener(this);
}
/**
* 点击 HeaderView 触发的事件
*/
private void headerViewClick() {
long packedPosition = getExpandableListPosition(this
.getFirstVisiblePosition());
int groupPosition = ExpandableListView
.getPackedPositionGroup(packedPosition);
if (mAdapter.getHeadViewClickStatus(groupPosition) == 1) {
this.collapseGroup(groupPosition);
mAdapter.onHeadViewClick(groupPosition, 0);
} else {
this.expandGroup(groupPosition);
mAdapter.onHeadViewClick(groupPosition, 1);
}
this.setSelectedGroup(groupPosition);
}
private float mDownX;
private float mDownY;
/**
* 如果 HeaderView 是可见的 , 此函数用于判断是否点击了 HeaderView, 并对做相应的处理 , 因为 HeaderView
* 是画上去的 , 所以设置事件监听是无效的 , 只有自行控制 .
*/
@Override
public boolean onTouchEvent(MotionEvent ev) {
if (mHeaderViewVisible) {
switch (ev.getAction()) {
case MotionEvent.ACTION_DOWN:
mDownX = ev.getX();
mDownY = ev.getY();
if (mDownX <= mHeaderViewWidth && mDownY <= mHeaderViewHeight) {
return true;
}
break;
case MotionEvent.ACTION_UP:
float x = ev.getX();
float y = ev.getY();
float offsetX = Math.abs(x - mDownX);
float offsetY = Math.abs(y - mDownY);
// 如果 HeaderView 是可见的 , 点击在 HeaderView 内 , 那么触发 headerClick()
if (x <= mHeaderViewWidth && y <= mHeaderViewHeight
&& offsetX <= mHeaderViewWidth
&& offsetY <= mHeaderViewHeight) {
if (mHeaderView != null) {
headerViewClick();
}
return true;
}
break;
default:
break;
}
}
return super.onTouchEvent(ev);
}
@Override
public void setAdapter(ExpandableListAdapter adapter) {
super.setAdapter(adapter);
mAdapter = (IphoneTreeHeaderAdapter) adapter;
}
/**
*
* 点击了 Group 触发的事件 , 要根据根据当前点击 Group 的状态来
*/
@Override
public boolean onGroupClick(ExpandableListView parent, View v,
int groupPosition, long id) {
if (mAdapter.getHeadViewClickStatus(groupPosition) == 0) {
mAdapter.onHeadViewClick(groupPosition, 1);
parent.expandGroup(groupPosition);
parent.setSelectedGroup(groupPosition);
} else if (mAdapter.getHeadViewClickStatus(groupPosition) == 1) {
mAdapter.onHeadViewClick(groupPosition, 0);
parent.collapseGroup(groupPosition);
}
// 返回 true 才可以弹回第一行 , 不知道为什么
return true;
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
if (mHeaderView != null) {
measureChild(mHeaderView, widthMeasureSpec, heightMeasureSpec);
mHeaderViewWidth = mHeaderView.getMeasuredWidth();
mHeaderViewHeight = mHeaderView.getMeasuredHeight();
}
}
private int mOldState = -1;
@Override
protected void onLayout(boolean changed, int left, int top, int right,
int bottom) {
super.onLayout(changed, left, top, right, bottom);
final long flatPostion = getExpandableListPosition(getFirstVisiblePosition());
final int groupPos = ExpandableListView
.getPackedPositionGroup(flatPostion);
final int childPos = ExpandableListView
.getPackedPositionChild(flatPostion);
int state = mAdapter.getTreeHeaderState(groupPos, childPos);
if (mHeaderView != null && mAdapter != null && state != mOldState) {
mOldState = state;
mHeaderView.layout(0, 0, mHeaderViewWidth, mHeaderViewHeight);
}
configureHeaderView(groupPos, childPos);
}
public void configureHeaderView(int groupPosition, int childPosition) {
if (mHeaderView == null || mAdapter == null
|| ((ExpandableListAdapter) mAdapter).getGroupCount() == 0) {
return;
}
int state = mAdapter.getTreeHeaderState(groupPosition, childPosition);
switch (state) {
case IphoneTreeHeaderAdapter.PINNED_HEADER_GONE: {
mHeaderViewVisible = false;
break;
}
case IphoneTreeHeaderAdapter.PINNED_HEADER_VISIBLE: {
mAdapter.configureTreeHeader(mHeaderView, groupPosition,
childPosition, MAX_ALPHA);
if (mHeaderView.getTop() != 0) {
mHeaderView.layout(0, 0, mHeaderViewWidth, mHeaderViewHeight);
}
mHeaderViewVisible = true;
break;
}
case IphoneTreeHeaderAdapter.PINNED_HEADER_PUSHED_UP: {
View firstView = getChildAt(0);
int bottom = firstView.getBottom();
// intitemHeight = firstView.getHeight();
int headerHeight = mHeaderView.getHeight();
int y;
int alpha;
if (bottom < headerHeight) {
y = (bottom - headerHeight);
alpha = MAX_ALPHA * (headerHeight + y) / headerHeight;
} else {
y = 0;
alpha = MAX_ALPHA;
}
mAdapter.configureTreeHeader(mHeaderView, groupPosition,
childPosition, alpha);
if (mHeaderView.getTop() != y) {
mHeaderView.layout(0, y, mHeaderViewWidth, mHeaderViewHeight
+ y);
}
mHeaderViewVisible = true;
break;
}
}
}
@Override
/**
* 列表界面更新时调用该方法(如滚动时)
*/
protected void dispatchDraw(Canvas canvas) {
super.dispatchDraw(canvas);
if (mHeaderViewVisible) {
// 分组栏是直接绘制到界面中，而不是加入到ViewGroup中
drawChild(canvas, mHeaderView, getDrawingTime());
}
}
@Override
public void onScroll(AbsListView view, int firstVisibleItem,
int visibleItemCount, int totalItemCount) {
final long flatPos = getExpandableListPosition(firstVisibleItem);
int groupPosition = ExpandableListView.getPackedPositionGroup(flatPos);
int childPosition = ExpandableListView.getPackedPositionChild(flatPos);
configureHeaderView(groupPosition, childPosition);
}
@Override
public void onScrollStateChanged(AbsListView view, int scrollState) {
}
}

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity" >
<com.way.iphonetreeview.IphoneTreeView
android:id="@+id/iphone_tree_view"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@android:color/transparent"
android:cacheColorHint="@android:color/transparent"
android:divider="@null"
android:transcriptMode="normal" />
</RelativeLayout>

public class MainActivity extends Activity {
private LayoutInflater mInflater;
private IphoneTreeView iphoneTreeView;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
initView();
}
private void initView() {
// TODO Auto-generated method stub
mInflater = LayoutInflater.from(this);
iphoneTreeView = (IphoneTreeView) findViewById(R.id.iphone_tree_view);
iphoneTreeView.setHeaderView(getLayoutInflater().inflate(
R.layout.list_head_view, iphoneTreeView, false));
iphoneTreeView.setGroupIndicator(null);
iphoneTreeView.setAdapter(new IphoneTreeViewAdapter());
}
public class IphoneTreeViewAdapter extends BaseExpandableListAdapter
implements IphoneTreeHeaderAdapter {
// Sample data set. children[i] contains the children (String[]) for
// groups[i].
private HashMap<Integer, Integer> groupStatusMap;
private String[] groups = { "第一组", "第二组", "第三组", "第四组" };
private String[][] children = {
{ "Way", "Arnold", "Barry", "Chuck", "David", "Afghanistan",
"Albania", "Belgium", "Lily", "Jim", "LiMing", "Jodan" },
{ "Ace", "Bandit", "Cha-Cha", "Deuce", "Bahamas", "China",
"Dominica", "Jim", "LiMing", "Jodan" },
{ "Fluffy", "Snuggles", "Ecuador", "Ecuador", "Jim", "LiMing",
"Jodan" },
{ "Goldy", "Bubbles", "Iceland", "Iran", "Italy", "Jim",
"LiMing", "Jodan" } };
public IphoneTreeViewAdapter() {
// TODO Auto-generated constructor stub
groupStatusMap = new HashMap<Integer, Integer>();
}
public Object getChild(int groupPosition, int childPosition) {
return children[groupPosition][childPosition];
}
public long getChildId(int groupPosition, int childPosition) {
return childPosition;
}
public int getChildrenCount(int groupPosition) {
return children[groupPosition].length;
}
public Object getGroup(int groupPosition) {
return groups[groupPosition];
}
public int getGroupCount() {
return groups.length;
}
public long getGroupId(int groupPosition) {
return groupPosition;
}
public boolean isChildSelectable(int groupPosition, int childPosition) {
return true;
}
public boolean hasStableIds() {
return true;
}
@Override
public View getChildView(int groupPosition, int childPosition,
boolean isLastChild, View convertView, ViewGroup parent) {
// TODO Auto-generated method stub
if (convertView == null) {
convertView = mInflater.inflate(R.layout.list_item_view, null);
}
TextView tv = (TextView) convertView
.findViewById(R.id.contact_list_item_name);
tv.setText(getChild(groupPosition, childPosition).toString());
TextView state = (TextView) convertView
.findViewById(R.id.cpntact_list_item_state);
state.setText("爱生活...爱Android...");
return convertView;
}
@Override
public View getGroupView(int groupPosition, boolean isExpanded,
View convertView, ViewGroup parent) {
// TODO Auto-generated method stub
if (convertView == null) {
convertView = mInflater.inflate(R.layout.list_group_view, null);
}
TextView groupName = (TextView) convertView
.findViewById(R.id.group_name);
groupName.setText(groups[groupPosition]);
ImageView indicator = (ImageView) convertView
.findViewById(R.id.group_indicator);
TextView onlineNum = (TextView) convertView
.findViewById(R.id.online_count);
onlineNum.setText(getChildrenCount(groupPosition) + "/"
+ getChildrenCount(groupPosition));
if (isExpanded) {
indicator.setImageResource(R.drawable.indicator_expanded);
} else {
indicator.setImageResource(R.drawable.indicator_unexpanded);
}
return convertView;
}
@Override
public int getTreeHeaderState(int groupPosition, int childPosition) {
final int childCount = getChildrenCount(groupPosition);
if (childPosition == childCount - 1) {
return PINNED_HEADER_PUSHED_UP;
} else if (childPosition == -1
&& !iphoneTreeView.isGroupExpanded(groupPosition)) {
return PINNED_HEADER_GONE;
} else {
return PINNED_HEADER_VISIBLE;
}
}
@Override
public void configureTreeHeader(View header, int groupPosition,
int childPosition, int alpha) {
// TODO Auto-generated method stub
((TextView) header.findViewById(R.id.group_name))
.setText(groups[groupPosition]);
((TextView) header.findViewById(R.id.online_count))
.setText(getChildrenCount(groupPosition) + "/"
+ getChildrenCount(groupPosition));
}
@Override
public void onHeadViewClick(int groupPosition, int status) {
// TODO Auto-generated method stub
groupStatusMap.put(groupPosition, status);
}
@Override
public int getHeadViewClickStatus(int groupPosition) {
if (groupStatusMap.containsKey(groupPosition)) {
return groupStatusMap.get(groupPosition);
} else {
return 0;
}
}
}
}
